TitroLine® 7000

TitroLine 7000 Titrator Set Up

This video is ideal if you have recently purchased a TitroLine 7000 unit from us, or maybe you're thinking about doing so. Either way, we go through all the steps of setting up the hardware from A to Z and show you how simple it is.

Titrator Guide

titrator discount

Price$6,937.00 (US Only)

Option

SKU285230220


In Stock 1

Advanced Titrator

  • Overview

    As a rule, 10 –15 user methods are usually enough for most requirements. But sometimes you need a little bit more capacity. The YSI TitroLine® 7000 can store up to 50 user methods.

    Highest safety for measuring and calibrating through wireless sensor recognition for YSI Instruments ID-electrodes. The new electrodes with definite identification are sending their specific data wireless to the titrator. Therefore the TitroLine® 7000 uses always the correct calibration data. Erroneous measurements are excluded.

    With a pH-stat application, a given pH is first adjusted and then kept constant at a certain time with an acid or a base. The pH-stat titration is applied to e.g.

    • The determination of the enzyme activity
    • The pH-stat elution of soil sample at pH 4
    • The monitoring of the pH value during chemical syntheses

    The TitroLine 7000 is perfect for non-aqueous titrations. Eliminate the need for special electrodes (e.g. separate indicator, reference, and auxiliary electrodes) with the built-in amplifier–ideal for titrations in non-aqueous solvents such as:

    • Acid and base numbers in oils
    • Titrations in glacial acetic acid with perchloric acid
    • Hydroxyl, NCO (Isocyanate) number, and further specific values

    It is possible to detect and calculate up to 2 equivalence points during one titration. Thanks to this it is possible to determine also the Calcium and Magnesium hardness instead of only the total hardness.

    You may also be interested in learning more about additional titrators such as the Titroline 7750 Universal titrator or the Titroline 7500 Karl Fischer titrator.


    The three available configurations of the TitroLine® 7000 include:

    • TL 7000 YSI includes: Autotitrator basic unit
    • TL 7000 YSI M1 includes:  Autotitrator basic unit with magnetic stirrer TM 235 285220400
    • TL 7000 YSI-C includes:  Autotitrator Basic Unit with manufacturer calibration certificate 285219082

    Choose an exchange unit:

    Recommended accessories: magnetic stirrer TM 235 285220400, TZ 3071 TitriSoft software, TZ 3091 RS 232 data cable, TZ 3080 USB – RS 232 adapter

    Do not forget to add an electrode and an electrode cable!


    Want to learn about YSI's full line of titration systems and features? Visit our titration homepage

    You can also download The Titration Handbook - the comprehensive guide to titration fundamentals and common applications.

  • Specifications
    Accuracy

    according to DIN ISO 8655, part 3: accuracy: < 0.15 %, precision: < 0.05 - 0.07 % (in dependence of the used burette size)

    Certification EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006 Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, Part 1
    Connectivity / Communications 100-240 V; 50/60 Hz, power input: 30 VA
    Display

    3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels

    Power 3 × USB (2 x USB-A and 1 × USB-B), 2 × RS-232-C and 1 x LAN
    Resolution

    20,000 steps

    Size

    15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable head, 2.3 kg for basic device, 3.5 kg for complete device with the exchangeable head (with empty reagent bottle)

  • Accessories

    A7780 pH Electrode

    Combination Electrode

    N62 pH Electrode

    Combination Electrode

    N61 pH Electrode

    Combination Electrode

    N6480 Eth pH Electrode

    Combination Electrode

    A162 2M-DIN-ID pH Electrode

    pH-Combination Electrode

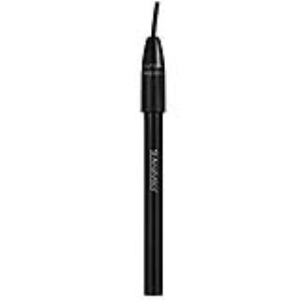

    Cu1100 PLH Ionselective Electrode

    Ion Selective Indicator Electrode

    AgCl62 Metal Electrode

    Metal Combination Electrode

    AgCl62 RG Metal Electrode

    Metal Combination Electrode

    Pt62 Metal Electrode

    Metal Combination Electrode

    Pt61 Metal Electrode

    Metal Combination Electrode

    Pt1800 Metal Electrode

    Metal Electrode

    OptiLine 6 Metal Electrode

    Metal Electrode

    TitroLine Electrolyte Solution

    Electrolyte Potassium Chloride Solution

    TitroLine Electrode Cable

    Electrode Combination Plug

    TitroLine Metal Foot Plate

    Metal Foot Plate

    TitroLine Magnetic Stirrer

    Magnetic Stirrer

  • How to Order

    Step 1: Order Instrument

    SKU Description
    285230220 TitroLine 7000 YSI Autotitrator Basic Unit
    285230230 TitroLine 7000 YSI Autotitrator Basic Unit with magnetic stirrer TM 235
    285230650 TitroLine 7000 YSI-C Autotitrator Basic Unit*

    Step 2: Order Accessories

    SKU Description
    285220410 Titrator and Piston Burette PC Keyboard
    285220590 Titration Reagent Reservoir
    285214232 TitroLine Magnetic Stirrer 10pcs.

    Step 3: Order Electrodes

    SKU Description
    285101260 A7780 pH Electrode
    285100034 N62 pH Electrode
    285100001 N61 pH Electrode
    285092329 N6480 Eth pH Electrode
    285130275 A 162 2M-DIN-ID
    285216273 Cu1100 PLH Ion-selective Electrode
    285102413 AgCl62 Metal Electrode
    285102100 AgCl62 RG Metal Electrode
    285102019 Pt62 Metal Electrode
    285102002 Pt61 Metal Electrode
    285103553 Pt 1800
    285221300 OptiLine 6

    Step 4: Order Electrode Cables

    SKU Description
    285120217 K1A - Plug cable combination, Coaxial electrode plug, 1 m coaxial cable, DIN instrument plug
    285120225 K2A - Plug cable combination, Coaxial electrode plug, 2 m coaxial cable, DIN instrument plug
    285122456 L1A - Plug cable combination, Coaxial electrode plug, 1 m coaxial cable, DIN instrument plug
    285122464 L2A - Plug cable combination, Coaxial electrode plug, 2 m coaxial cable, DIN instrument plug
    285122653 LB1A - Plug cable combination, Coaxial electrode plug (for BlueLine), 1 m coaxial cable, DIN instrument plug

    Step 5: Order Solutions

    SKU Description
    285138554 L300 - Electrolyte solution in bottles, 1000 ml DURAN® bottle, potassium chloride solution 3 mol/l, sterilized
    285138427 L3004 - Electrolyte solution in bottles, 250 ml DURAN® bottle, potassium chloride solution 3 mol/l, sterilized
    285138440 L3004 cert - Electrolyte solution in bottles, 250 ml DURAN® bottle, potassium chloride solution 3 mol/l, sterilized, with manufacturer certificate
    285138632 L4895 - Buffer solution in FIOLAX® ampoules, 2 x 9 ampoules, buffer solution pH = 4.00 / 7.00, sterilized, with manufacturer certificate, 50 ml plastic bottle KCl solution 3 mol/l

    Step 6: Order Maintenance Items

    SKU Description
    285223007 3/2 Way Valve
    285224303 3-Part Tube Set
    285223718 20 mL Dosing Unit
    285223767 50 mL Dosing Unit

    Step 7: Order Replacement Parts

    SKU Description
    285225840 TM 50 Magnetic Stirrer
    285212217 Titrator and Piston Burette Power Supply
    285215229 Karl Fischer Coulometric Tapper Adapter
    285227103 Replacement Titration Tip with Tube
    285227263 Titration Tip (Blue), 0.7 mm, 5 pcs.
    285220540 Titration Clamp
    285220530 Titrator and Piston Burette Manual Controller

  • Video

    TitroLine 7000 Titrator Set Up

    This video is ideal if you have recently purchased a TitroLine 7000 unit from us, or maybe you're thinking about doing so. Either way, we go through all the steps of setting up the hardware from A to Z and show you how simple it is.
