IQ SensorNet Alyza Analyzer PO4

Alyza IQ Overview

The Alyza IQ is an online, cabinet-style analyzer used for continuous monitoring of orthophosphate or ammonium in a municipal water resource recovery facility.

Alyza | The Simple Choice for Orthophosphate Monitoring

The Alyza IQ PO4 is an online, cabinet-style analyzer used for continuous monitoring of orthophosphate in a municipal water resource recovery facility. This analyzer is weatherproof and can be deployed anywhere in the wastewater treatment process.

phosphorus removal wastewater

PriceRequest Pricing

Option

SKU825511Y


Meet Alyza!

YSI’s new IQ SensorNet Analyzer for Orthophosphate provides accurate, reliable measurements for process control. The IQ Analyzer features a revolutionary MultiValve that dramatically reduces reagent use and maintenance requirements.

  • Overview

    The Alyza IQ PO4 is an online, cabinet-style analyzer used for continuous monitoring of orthophosphate in a municipal water resource recovery facility. This analyzer is weatherproof and can be deployed anywhere in the wastewater treatment process. Applications include monitoring bio-p removal and monitoring and controlling chemical phosphorus removal. An innovative Multivalve within the analyzer significantly reduces reagent use to 5 µL per measurement decreasing the analyzer’s regular maintenance requirements. The analyzer is available as a single-channel or two-channel instrument. The analyzer is available in one of two measuring ranges: 0.02 to 15.00 mg/L PO₄-P or 0.2 to 50.0 mg/L PO₄-P. The IQ Analyzer can be used as a stand-alone analyzer or be incorporated into an IQ SensorNet network of sensors. The IQ Analyzer provides accurate measurements with minimal maintenance requirements.

    IQ Analyzer offers:

    • Reliable, accurate measurements at low measurement concentrations
    • Extremely low reagent consumption, 5 µL per measurement
    • Automatic calibration, 1 or 2 point
    • Automatic cleaning, lowering maintenance requirements
    • Serviceable – safe and easy replacement of reagents, no need for expensive service contracts
    • One or two channel versions available
    • Reliable sample delivery pump built into the cabinet
    • Uses proven Vanadomolybdate (yellow) method of detection
    • Filtration unit allows analyzer to process samples with solids concentrations up to 6,000 mg/L

    Applications include:

    • Monitoring and control of chemical phosphorus removal, reducing dosing chemicals and sludge production
    • Effluent monitoring to ensure compliance

    Interested in ammonium? Learn more about our Alyza NH4 Analyzer

  • Specifications
    Calibration Automatic 1- and 2-point calibrations
    Cleaning Automatic cleaning with cleaning solutions
    Connectivity / Communications IQ Sensor Net-components, relays, Modbus TCP, analog outputs
    Dimensions

    30.5 x 26.6 x 17.5 in.

    Dissolved Solids Limit < 6 g/L (before filtration)
    Equipment used with IQ SensorNet 2020 3G Controller, 282/284 Controller
    Languages English, German
    Measurement Method Vanadomolybdate (yellow) method
    Operating Temperature -4 to 104 °F (-20 to +40) °C
    Parameters Measured

    Orthophosphate

    Power 120 VAC / 240 VAC, 50/60 Hz
    Reagent Use

    5 µL per measurement

    Sample Streams/Channels 1- and 2-channel versions available
    Sample Temperature 39 to 113 °F (4 to 45 °C)
    Warranty

    2 Years

    Weight 81.6 lbs (37 kg) (without liquids)

    PO4-111/112 PO4-121/122

    Measuring Range

    (Instrument Dependent)

    MR 1: 0.02 to 15.00 mg/l PO4-P

    MR 2: 0.2 to 50.0 mg/l PO4-P

    Displayed 0.00 to 15.00 mg/l PO4-P 0.0 to 50.0 mg/l PO4-P
    Resolution 0.01 mg/l PO4-P 0.05 mg/l PO4-P
    Accuracy ± 2 %, ± 0.02 mg/l ± 2 %, ± 0.2 mg/l

  • Accessories

    Alyza IQ SensorNet PO4 Reagent

    Alyza IQ SensorNet PO4 Reagent

    Alyza IQ SensorNet PO4 Reagent Set

    Reagent set for the IQ SensorNet Alyza PO4

    Alyza IQ SensorNet PO4 Standard Solution

    Standard solution for the IQ SensorNet Alyza PO4 Analyzer

    Alyza IQ SensorNet PO4 Cleaning Solution

    Cleaning solution for the IQ SensorNet Alyza PO4 Analyzer

    Alyza IQ SensorNet PO4 Solution Set

    Solution set for IQ SensorNet Alyza PO4 Analyzer

    Alyza IQ SensorNet MultiPort Valve

    MultiPort Valve for the Alyza IQ PO4 and Alyza IQ NH4

    Alyza IQ SensorNet PO4 Tubing Set

    Tubing set for Alyza IQ SensorNet PO4

    Alyza IQ SensorNet Syringe Pump Set

    Syringe pump set for Alyza IQ SensorNet

    Alyza IQ SensorNet Overflow Vessel

    Overflow vessel for Alyza IQ SensorNet

    Alyza IQ SensorNet Check Valve

    Check valve for Alyza IQ SensorNet filtration

    Alyza IQ SensorNet Filter Membrane PC

    Two filter membranes for Filter-Case PC

    Alyza IQ SensorNet Unheated Return Line

    Unheated return line for Alyza IQ SensorNet

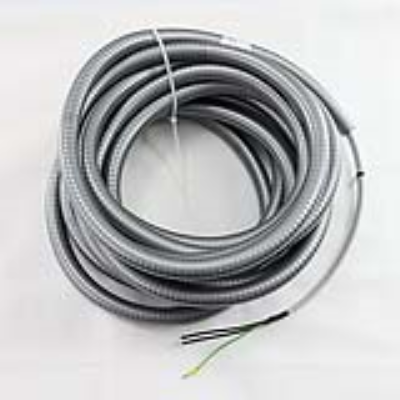

    Alyza IQ SensorNet Heated Return Line

    Heated return line for Alyza IQ SensorNet

    Alyza IQ SensorNet Waste Funnel

    Waste funnel for Alyza IQ SensorNet

    Alyza IQ SensorNet Wall Mount

    Wall mount for Alyza IQ SensorNet or P700

    Alyza IQ SensorNet Stand Mount

    Stand mount for Alyza IQ SensorNet or P700

    Alyza IQ SensorNet Rail Mount

    Rail mount for Alyza IQ SensorNet or P700

    Alyza IQ SensorNet Controller Module Mounting

    Controller Module Mounting, Alyza IQ

    Alyza IQ SensorNet Suction Line

    Suction line for Alyza IQ SensorNet

    Alyza IQ SensorNet Unheated Suction Tube With Slide

    Unheated suction tube with slide for Alyza IQ SensorNet

    Alyza IQ SensorNet Heated Suction Tube With Slide

    Heated suction tube with slide for Alyza IQ SensorNet

    Alyza IQ SensorNet Filter Case and Filter Membrane

    Rectangle filter membrane module with premounted membrane for Alyza IQ SensorNet.

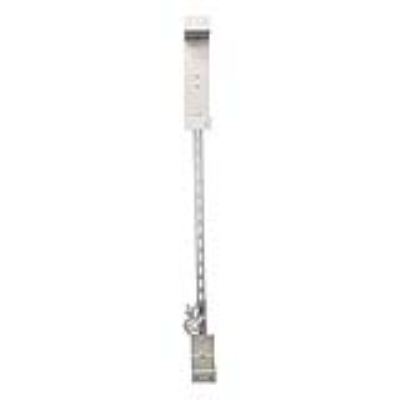

    Alyza IQ SensorNet Filter Mount

    Filter mount for Alyza IQ SensorNet Filter

    Alyza IQ SensorNet Filter Extension Attachment

    Extension attachment for Alyza IQ SensorNet Filter Mount

    Alyza IQ SensorNet Filter Adapter

    Horizontal mount adapter for filter membrane Alyza IQ SensorNet Filter Mount
