Meet Alyza - YSI’s new IQ SensorNet Analyzer for Ammonium

  • Overview

    The Alyza IQ NH4 is an online, wet-chemistry cabinet analyzer designed for continuously monitoring ammonium in the biological tank and effluent streams of municipal wastewater treatment facilities.

    Alyza IQ NH4 provides accurate, reliable data at low measurement ranges with minimal maintenance requirements or operator intervention. The IQ Analyzer features a revolutionary MultiPort mixing valve that dramatically reduces chemical use and maintenance requirements. In addition, Alyza has both an automatic cleaning and calibration option further reducing service requirements.

    Alyza IQ is weatherproof and can be deployed anywhere in the wastewater treatment process. Applications include monitoring in biological tanks for ammonium-based aeration control and plant effluent locations to ensure compliance. The analyzer is available as a single-channel or two-channel instrument allowing you to sample from two different locations. The Alyza analyzer can be used as a stand-alone analyzer or be connected to a YSI IQ SensorNet network of sensors.

    IQ Analyzer NH4 offers:

    • Reliable, accurate data at low measurement concentrations
    • Extremely low chemical use
    • Automatic or manual calibration, 1 or 2 point
    • Automatic cleaning, lowering maintenance requirements
    • Serviceable – safe and easy replacement of reagents, no need for expensive service contracts
    • One or two channel versions available
    • Reliable sample delivery pump(s) built into the cabinet
    • Uses Indophenol (blue) method of detection
    • Filtration unit allows analyzer to process samples with solids concentrations up to 6,000 mg/L

    Applications include:

    • Biological tank monitoring for ammonia-based aeration control and/or ensure compliance
    • Effluent monitoring to ensure compliance

  • Specifications

    MR1: ± 2 %, ± 0.02 mg/l

    MR2: ± 3 %, ± 0.10 mg/l

    Calibration Automatic or manual 1- and 2-point calibrations
    Chemical Use MR1 reagent consumption 10 minute interval: 90 days; MR2 reagent consumption 20 minute interval: 45 days; Cleaning and calibration solution at a daily cleaning/calibration interval: 180 days
    Cleaning Automatic cleaning with cleaning solutions
    Connectivity / Communications interfaces via IQ Sensor Net-components, relays, Modbus TCP, analog outputs

    30.5 x 26.6 x 17.5 in.

    Dissolved Solids Limit < 6 g/L (before filtration)
    Equipment used with IQ SensorNet 2020 3G Controller, 282/284 Controller
    Languages English, German
    Measurement Method Indophenol (blue) method
    Measurement Range

    MR1: 0.02 to 5.00 mg/l NH4-N

    MR2: 0.10 to 20.00 mg/l NH4-N

    Operating Temperature -4 to 104 °F (-20 to +40) °C
    Parameters Measured


    Power 120 VAC / 240 VAC, 50/60 Hz

    MR1: 0.01 mg/l NH4-N

    MR2: 0.01 mg/l NH4-N

    Sample Streams/Channels 1- and 2-channel versions available

    2 Years

    Weight 81.6 lbs (37 kg) (without liquids)
  • Accessories

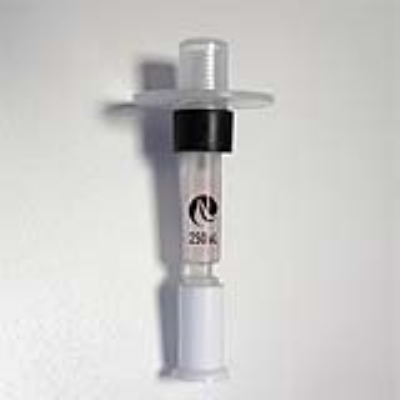

    Alyza IQ SensorNet Syringe Pump Set

    Syringe pump set for Alyza IQ SensorNet

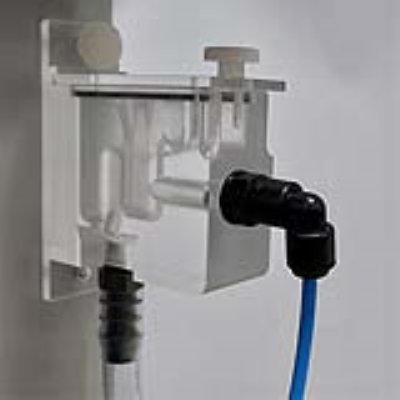

    Alyza IQ SensorNet Overflow Vessel

    Overflow vessel for Alyza IQ SensorNet

    Alyza IQ SensorNet Check Valve

    Check valve for Alyza IQ SensorNet filtration

    Alyza IQ SensorNet Filter Membrane PC

    Filter membrane PC for Filter-Case PC

    Alyza IQ SensorNet Unheated Return Line

    Unheated return line for Alyza IQ SensorNet

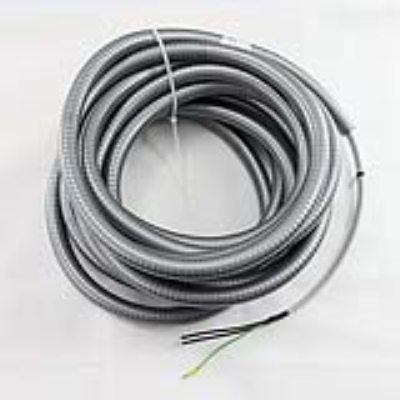

    Alyza IQ SensorNet Heated Return Line

    Heated return line for Alyza IQ SensorNet

    Alyza IQ SensorNet Filter Case and Filter Membrane

    Rectangle filter membrane module with premounted membrane for Alyza IQ SensorNet.

    Alyza IQ SensorNet NH4 Reagent

    Reagent for the IQ SensorNet Alyza NH4 Analyzer

    Alyza IQ SensorNet NH4 Standard Solution

    Standard solution for the IQ SensorNet Alyza NH4 Analyzer

    Alyza IQ SensorNet NH4 Reagent Set

    Reagent set for the IQ SensorNet Alyza NH4 Analyzer

    Alyza IQ SensorNet NH4 Solution Set

    Solution set for the IQ SensorNet Alyza NH4 Analyzer

    Alyza IQ SensorNet Waste Funnel

    Waste funnel for Alyza IQ SensorNet

    Alyza IQ SensorNet Controller Module Mounting

    Controller Module Mounting, Alyza IQ

    Alyza IQ SensorNet Suction Line

    Suction line for Alyza IQ SensorNet

    Alyza IQ SensorNet Unheated Suction Tube With Slide

    Unheated suction tube with slide for Alyza IQ SensorNet

    Alyza IQ SensorNet Heated Suction Tube With Slide

    Heated suction tube with slide for Alyza IQ SensorNet

    Cleaning Solution 2 for Alyza IQ SensorNet NH4 Analyzer

    Cleaning Solution 2 for IQ SensorNet Alyza NH4 Analyzer
