IQ SensorNet NitraVis® Sensors

5 Questions to Ask When Selecting
a UV/UV-Vis Sensor

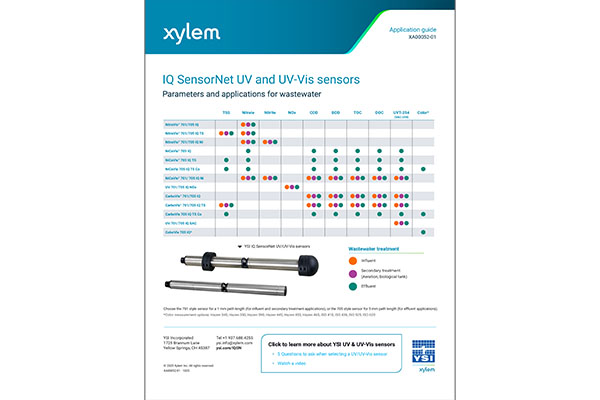

UV and UV-Vis Sensor
Application Chart

YSI IQ SensorNet UVVIS Ultrasonic Cleaning with UltraClean Technology

The ultrasonic cleaning of the UVVIS IQ SensorNet sensors. This short video demonstrates the ultrasonic cleaning when power is added to this sensor and the milky substance is quickly cleaned off. The UltraClean technology is continuously on and built into the sensor to prevent fouling.


PriceRequest Pricing

Option

SKU481 044YM


Optical Nitrate probe for IQ SensorNet systems. For help choosing a spectral sensor check out our 5 Questions to Ask When Selecting a UV or UV Vis Sensor Guide or our UV & UV-Vis Sensor Application Chart.

  • Overview

    The NitraVis® is a reagentless, optical-based spectrophotometer built into a rugged, corrosion-resistant field probe for the IQ SensorNet system. The NitraVis probe scans 256 wavelengths per measurement between 200 and 720 nm to provide the most accurate Nitrate and TSS measurements with precise compensation for interferences such as turbidity. The NitraVis provides continuous data to help operational improvement decisions. The probe’s built-in UltraClean ultrasonic cleaning technology reduces routine maintenance requirements.

    For Help choosing the right sensor for your application, reference these guides:

    • 256 wavelength scans per measurement results in better accuracy and better compensation for interferences
    • Factory calibrated
    • 2-year warranty
    • Two options available - one ideal for effluent applications and one ideal for influent and aeration tank applications
    • Maintenance free ultrasonic cleaning with UltraClean technology; prevents biofouling from taking place. Built-in air holes for added air cleaning in high fouling applications

    The sensor is part of our IQ SensorNet family of products and works directly with our advanced wastewater process monitoring system. This system is controled by the IQ SensorNet 2020 3G controller or our simplified IQ SensorNet 282/284 controller.

  • Specifications
    Anti Fouling UltraClean™ ultrasound cleaning system
    Certifications CE, cETLus
    Depth / Pressure Rating / Limit 1 bar (14.5 psi)
    Equipment used with 282/284, 2020 3G
    Integrated Lightning Protection Yes
    Languages English/ German
    Measurement Method / Channels The NitraVis probe scans 256 wavelengths per measurement between 200 and 720 nm to provide the most accurate Nitrate and TSS measurements with precise compensation for interferences such as turbidity.
    Measurement Range NO3-N 0.00 to 60.00 mg/L (influent/aeration); NO3 0.0 to 300.0 mg/L (influent/aeration); NO3-N 0.0 to 150.0 mg/L (effluent); NO3 0.0 to 750.0 mg/L (effluent)
    Operating pH Range 4 to 12
    Operating Temperature 32 to 113 °F (0 to 45 °C)
    Parameters Measured Nitrate
    Precision (+/-)3% of the measured value (+/-) 0.5 mg/L
    Sampling Yes
    Smart Sensors / Ports Yes
    Storage Temperature 14 to 122 °F (-10 to 50 °C)
    Unit of Measure mg/L, g/L
    Warranty 2 years
    Waterproof Sensor with SACIQ cable connected: IP68
