IQ SensorNet CarboVis® Sensors

IQ SensorNet Spectral Sensor Portfolio Overview

PriceRequest Pricing

Option

SKU481 049YM


Optical probe for measuring COD, BOD, UVT-254, TOC, DOC, SAC-254, Color, and TSS for IQ SensorNet systems. For help choosing a spectral sensor, check out our 5 Questions to Ask When Selecting a UV or UV Vis Sensor Guide or our UV & UV-Vis Sensor Application Chart.

  • Overview

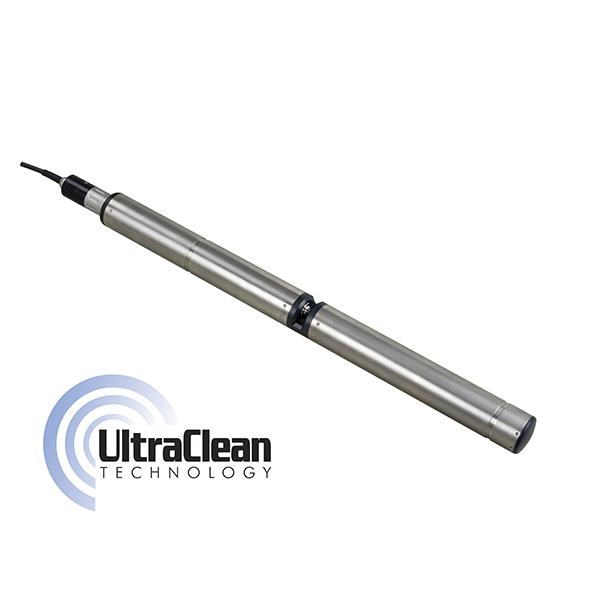

    The CarboVis® is a reagentless, optical-based spectrophotometer built into a rugged, corrosion-resistant field probe for the IQ SensorNet system. The CarboVis can report up to 5 parameters, including: COD (total and soluble), BOD, UVT-254, TOC, DOC, SAC (total and soluble), Color, and TSS (optional).

    The CarboVis probe scans 256 wavelengths per measurement between 200 and 720 nm to provide the most accurate measurements with precise compensation for interferences such as turbidity. The CarboVis offers continuous data to help operational improvement decisions. The probe’s built-in UltraClean ultrasonic cleaning technology reduces the need for routine maintenance.

    For Help choosing the right sensor for your application, reference these guides:

    • 5 Questions to Ask When Selecting a UV or UV Vis Sensor Guide
    • UV & UV-Vis Sensor Application Chart.
    • 256 wavelength scans per measurement result in better accuracy and better compensation for interferences
    • UVT-254 measurement used to determine required UV light intensity and contact time for disinfection, lowering a facility’s disinfection costs
    • Factory calibrated
    • 2-year warranty
    • Two options available - one ideal for effluent applications and one ideal for influent/aeration/effluent applications
    • Maintenance-free ultrasonic cleaning with UltraClean technology built in; prevents biofouling from taking place—built-in air holes for added air cleaning in high fouling applications.

    The sensor is part of our IQ SensorNet family of products and works directly with our advanced wastewater process monitoring system. This system is controlled by the IQ SensorNet 2020 3G controller or our simplified IQ SensorNet 282/284 controller.

  • Specifications
    Anti Fouling UltraClean™ ultrasound cleaning system
    Depth / Pressure Rating / Limit 1 bar (14.5 psi)
    Equipment used with 2020 3G, 282/284
    Integrated Lightning Protection Yes
    Languages English/ German
    Measurement Method / Channels 200-720 nm., Measuring over total spectrum from ultraviolet (UV) to visible (VIS) light
    Operating pH Range 4 to 12
    Operating Temperature 32 to 113 °F (0 to 45 °C)
    Parameters Measured

    COD (total and soluble), BOD, UVT-254, TOC, DOC, SAC (total and soluble). Hazen 340, Hazen 350, Hazen 390, Hazen 445, Hazen 455, Hazen 465, ISO 410, ISO 436, ISO 525, or ISO 620,

    Precision (+/-)3% of the measured value (+/-) 2.5 mg/L
    Sampling Yes
    Smart Sensors / Ports Yes
    Storage Temperature 14 to 122 °F (-10 to 50 °C)
    Unit of Measure 1/m, mg/L
    Warranty 2 years
    Waterproof Rating: IP-68
    Technical Data
    Parameters Range (5mm Gap) Range (1mm Gap)
    COD (total) 0.0 to 800 mg/L 0 to 20000 mg/L
    COD (soluble) 0.0 to 800 mg/L 0 to 12500 mg/L
    TOC 0.0 to 500 mg/L 0 to 20000 mg/L
    DOC 0.0 to 500 mg/L 0 to 12500 mg/L
    BOD 0.0 to 500 mg/L 0 to 8000 mg/L
    SAC 254 (total) 0.0 to 600.0 1/m 0 to 5000 1/m
    UVT 254 (total) 0.0 to 100.0% 0.0 to 100.0%
    TSS 0.0 to 900.0 mg/L 0.00 to 20 g/L
    HAZEN 340 8 to 1050 mg/L Pt/Co /
    HAZEN 350 8 to 2100 mg/L Pt/Co /
    HAZEN 390 8 to 2100 mg/L Pt/Co /
    HAZEN 445 150 to 10000 mg/L Pt/Co /
    HAZEN 455 150 to 10000 mg/L Pt/Co /
    HAZEN 465 150 to 10000 mg/L Pt/Co /
    ISO 410 20 to 5300 mg/L Pt/Co /
    ISO 436 0 to 200 1/m /
    ISO 525 0 to 200 1/m /
    ISO 620 0 to 200 1/m /
  • Accessories

    IQ SensorNet Universal Cleaning Kit for UVVIS Sensors

    Universal cleaning kit for IQ SensorNet UVVIS sensors

    IQ SensorNet Cleaning Kit for UVVIS Probes

    Cleaning kit for UVVIS probes, IQ SensorNet. Includes 20 perforated textured cleaning cloths in two sizes for 1 mm and 5 mm gap sensors.

    IQ SensorNet Air Pressure Cleaning Set

    Air Pressure cleaning set with connector and 15m air tubing

    Sensor check standard, high concentration for 1 mm UVVIS

    Sensor check standard, high concentration for 1 mm UVVIS IQ SensorNet probes.

    Sensor check standard, low concentration for 5 mm UVVIS

    Sensor check standard, low concentration for 5 mm UVVIS IQ SensorNet probes.
