IQ SensorNet SensoLyt® 700 IQ Sensors

pH and ORP probe for IQ SensorNet systems

• Overview

  The SensoLyt® is a rugged, online probe for the IQ SensorNet process monitoring system. The SensoLyt provides continuous and reagentless monitoring of pH or ORP using a combination electrode for the most accurate wastewater process monitoring. The digital probes can be calibrated in the lab for greatest convenience. The probe automatically recognizes YSI buffers for even greater convenience. Replaceable electrodes have a long lifetime, minimizing ownership costs.

  • SensCheck function monitors glass membrane breakage
  • Probe guard for electrode protection
  • Easily replace electrodes without tools
  • Pre-amplified signal
  • Digital sensors store calibration. Calibrate in lab, take to the field
  • Integrated NTC temperature sensor for temperature compensation of pH
  • 2-year warranty on the probe. 6-months on the electrodes

  The sensor is part of our IQ SensorNet family of products and works directly with our advanced wastewater process monitoring and control platform the IQ SensorNet 2020 3G controller or our simplified IQ SensorNet 282/284 controller.

• Specifications

  Certifications	cETLus, CE
  Depth / Pressure Rating / Limit	10 bar (106 Pa) CAUTION: The pressure resistance of the operable pH/ORP armature can be reduced by the pressure resistance of the combination electrode. When selecting the combination electrode make sure it is suitable for the intended pressure and temper
  Equipment used with	282/284 and 2020 3G
  Integrated Lightning Protection	Yes
  Languages	English/ German
  Measurement Method / Channels	Integrated microprocessor electronics, shielded 2-wire connection for power and data transmission., Potentiometric measurement using a combination electrode
  Measurement Range	pH: 0.00 to 14.00 (depending on the electrode) ORP: -2000 mV to +2000 mV (depending on the electrode)
  Operating pH Range	4 to 12
  Operating Temperature	32 to 104°F (0 to 40°C)
  Parameters Measured	pH/ ORP
  Sampling	Yes
  Smart Sensors / Ports	Yes
  Storage Temperature	23 to 149 °F (- 5 °C to + 65 °C)
  Unit of Measure	mV, pH
  Warranty	2 years (electrodes 6 months)
  Waterproof	Sensor with installed combination electrode and including SACIQ (SW) sensor connection cable is IP-68. Sensor plug head connector without sensor connection cable (sensor with installed combination electrode) is IP 67.

• Accessories



  SensoLyt SEA-HP pH Electrode

  pH Electrode with Built in Reference for High Pressure



  SensoLyt DWA pH Electrode

  pH Electrode with Built in Reference for SensoLyt



  SensoLyt PtA ORP Electrode

  ORP Electrode with Built in Reference for SensoLyt



  SensoLyt ECA pH Electrode

  IQ SensorNet ECA pH Electrode for SensoLyt Probes

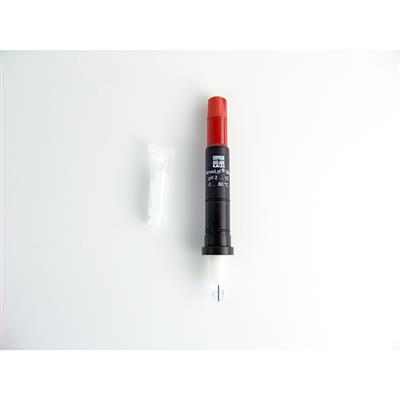

  SensoLyt SEA pH Electrode

  IQ SensorNet pH Electrode with Built in Reference for SensoLyt
