IQ SensorNet NOx

YSI IQ SensorNet UVVIS Ultrasonic Cleaning with UltraClean Technology

The ultrasonic cleaning of the UVVIS IQ SensorNet sensors. This short video demonstrates the ultrasonic cleaning when power is added to this sensor and the milky substance is quickly cleaned off. The UltraClean technology is continuously on and built into the sensor to prevent fouling.

PriceRequest Pricing

Option

SKU481035Y

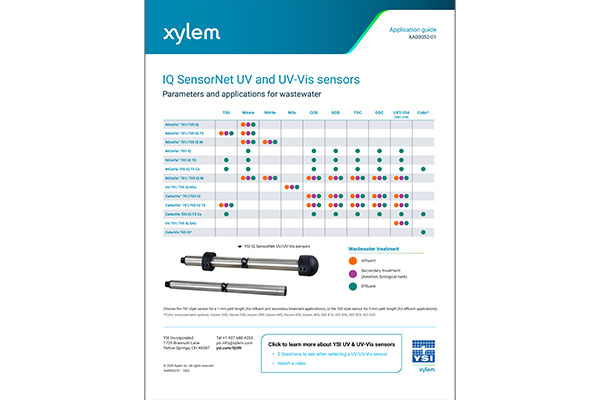

Optical Nitrate probe for IQ SensorNet systems. For help choosing a spectral sensor check out our 5 Questions to Ask When Selecting a UV or UV Vis Sensor Guide or our UV & UV-Vis Sensor Application Chart.

  • Overview

    The YSI IQ SensorNet NOx sensor uses a reagentless, UV-based absorption measurement that is built into a rugged, corrosion-resistant field probe for the IQ SensorNet system. The NOx sensor measures the sum of nitrate (NO3-N) and nitrite (NO2-N) to determine NOx-N (NO2+3-N). Measurements can be displayed as NO3-N or NO3. The NOx sensor measures nitrogen at a wavelength below 250 nm. A second wavelength is also measured in order to compensate for turbidity and organic matter that is in the water. The NOx sensor provides continuous data to help operational improvement decisions. The probe’s builtin UltraClean® ultrasonic cleaning technology reduces routine maintenance requirements.

    For Help choosing the right sensor for your application, reference these guides:

    • Ideal for monitoring and controlling the nitrification/denitrification process; effluent monitoring
    • Single wavelength determination of NOx; second wavelength for turbidity compensation
    • Factory calibrated with optional user-calibration
    • 2-year warranty
    • Measurement directly in the process; no reagents required
    • Maximum durability due to high-tech materials Titanium/PEEK
    • Maintenance free ultrasonic cleaning with UltraClean technology built-in; no wipers or seals to replace and prevents biofouling from taking place. Built-in air holes for added air cleaning in high fouling applications.

    The sensor is part of our IQ SensorNet family of products and works directly with our advanced wastewater process monitoring system. This system is controled by the IQ SensorNet 2020 3G controller or our simplified IQ SensorNet 282/284 controller.

  • Specifications
    Anti Fouling UltraClean™ ultrasonic cleaning system
    Certifications CE, cETLus
    Equipment used with 2020 3G, 282/284
    Integrated Lightning Protection Yes
    Languages English/ German
    Measurement Method / Channels The NOx sensor measures nitrogen at a wavelength below 250 nm. A second wavelength is also measured in order to compensate for turbidity and organic matter that is in the water.
    Measurement Range

    0.0 to 20 mg/L NOx-N (NO3-N); 0.0 to 100.0 mg/L NOx (NO3)

    Operating pH Range 4 to 12
    Operating Temperature 0 to 45 °C (32 to 113 °F)
    Parameters Measured

    Measures the sum of nitrate (NO3-N) and nitrite (NO2-N) to determine NOx-N (NO2+3-N).

    Smart Sensors / Ports Yes
    Storage Temperature -10 to 50 °C (14 to 122 °F)
    Unit of Measure mg/L
    Warranty

    2 years

    Waterproof Sensor with SACIQ cable connected: IP68
