IQ SensorNet NitraLyt® Plus Sensors

Industry-Leading Online Ammonium & Nitrate ISE Sensors for Wastewater

Learn why IQ SensorNet’s ion-selective electrode sensors (ISE) are the best choice for continuously monitoring ammonium and nitrate in wastewater. With many innovative features, the YSI VARiON, AmmoLyt, and NitraLyt provide accurate and reliable measurements to monitor and control the activated sludge process.

PriceRequest Pricing

Option

SKU107081Y


Nitrate and Chloride probe for IQ SensorNet systems

  • Overview

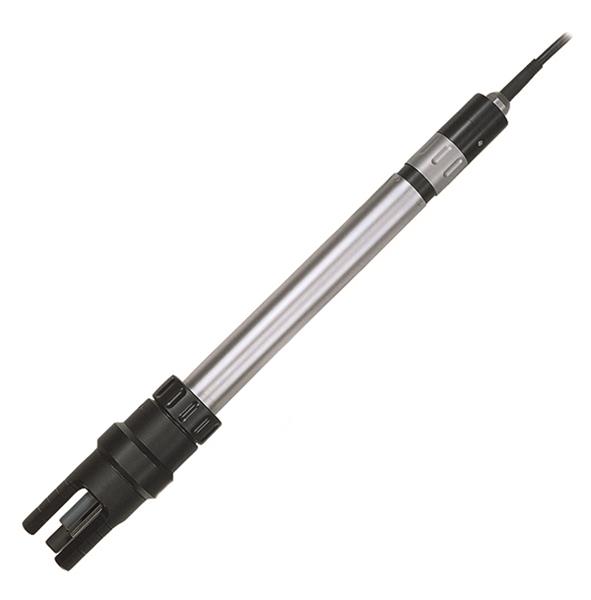

    The NitraLyt® is a rugged ion selective electrode (ISE) probe for the IQ SensorNet process monitoring system. The NitraLyt provides continuous and reagentless monitoring of Nitrate and Chloride, the most precise and reliable electrodes on the market. The individually replaceable electrodes have a typical lifetime of 18 to 24 months and are warrantied for 1 year, minimizing maintenance efforts and ownership costs. The NitraLyt is a good choice for monitoring denitrification process control of mixed liquor recirculation and external carbon dosing.

    • Measurement and display of nitrate and chloride
    • Dynamic compensation of nitrate measurement for chloride
    • Measuring range up to 1,000 mg NO3-N/L; 1,000 mg Cl/L
    • Individually, user-replaceable measuring and reference electrodes
    • NitraLyt® reference system is very stable over long periods of time
    • Digital probe recognizes electrodes automatically
    • Simple in-situ calibration
    • Integrated NTC temperature sensor for temperature compensation
    • 2-year warranty on the probe, 1-year on electrodes

    The sensor is part of our IQ SensorNet family of products and works directly with our advanced wastewater process monitoring and control platform the IQ SensorNet 2020 3G controller or our simplified IQ SensorNet 282/284 controller.

    Additional IQ SensorNet ISE sensors include the VARiON and AmmoLyt

  • Specifications
    Depth / Pressure Rating / Limit 0.2 bar (2.9 psi) depth of immersion: min. 50 mm, max. 2 m depth
    Equipment used with 282/284, 2020 3G
    Integrated Lightning Protection Yes
    Languages English/ German
    Measurement Method / Channels Potentiometric measurement by means of ion sensitive electrodes. Modular structure with jointly used reference electrode and ion sensitive electrodes. Integrated microprocessor electronics, screened 2-wire connection for power and data transmission.
    Measurement Range NO3-N: 1 to 1000 mg/L or 0.1 to 100.0 mg/L NO3-: 5 to 4500 mg/L or 0.5 to 450.0 mg/L Cl-: 1 to 1000 mg/L
    Operating pH Range 4 to 11
    Operating Temperature 32 to 104°F (0 to 40°C)
    Parameters Measured Nitrate
    Precision Accuracy in lab standards +5% of measured value +0.2 mg/L in standard solutions
    Sampling Yes
    Smart Sensors / Ports Yes
    Storage Temperature 32 to 104°F (0 to 40°C)
    Unit of Measure mg/L
    User Replaceable Yes
    Warranty 2 years (typical working life is 18 months)
    Waterproof IP-68
  • Accessories

    VARiON Plus Cl Electrode

    Chloride compensating electrode for VARiON Plus and NitraLyt Plus 700 IQ probes

    VARiON Plus NO3 Electrode

    Nitrate measuring electrode for VARiON Plus, NitraLyt and NitraLyt Plus 700 IQ probes

    VARiON, NitraLyt, and AmmoLyt Reference Electrode

    IQ SensorNet Reference Electrode

  • Video

    Industry-Leading Online Ammonium & Nitrate ISE Sensors for Wastewater

    Learn why IQ SensorNet’s ion-selective electrode sensors (ISE) are the best choice for continuously monitoring ammonium and nitrate in wastewater. With many innovative features, the YSI VARiON, AmmoLyt, and NitraLyt provide accurate and reliable measurements to monitor and control the activated sludge process.
