Multiparameter Water Quality Instruments Assist in Stormwater and CSO Baseline Monitoring

Baseline Monitoring on the White River

The city of Indianapolis, Indiana has been monitoring surface water quality of the White River and its tributaries since 1991. Each year the Indianapolis Office of Environmental Services (OES) collects nearly 6,000 samples from 27 locations. Two specialized programs, Continuous Dissolved Oxygen and Critical DO, are designed to collect data during periods when the potential exists for dissolved oxygen problems.

YSI multiparameter monitoring equipment, such as the EXO (or YSI 6600 and 6920 usedin this study), were deployed at seven sites on the White River and its tributaries, where monitoring dissolved oxygen levels is the focus. Six sondes are mounted from bridges and one is mounted on a buoy in the White River. Temperature, conductivity, pH, and dissolved oxygen data are collected every 15 minutes, then transmitted via cellular telemetry to the OES office.

The data is used as a baseline to measure the success of programs including the Storm Water Management and Combined Sewer Overflow (CSO) Long Term Control plan as a check against the city’s water quality modeling efforts. Low oxygen levels can lead to fish kills—which have already been reported at a few locations on the river. As improvements in the system are made, dissolved oxygen levels in the White River and its tributaries should improve. This will reduce the potential for fish kills and other environmental effects caused by critical dissolved oxygen levels in the streams.

Image-1-Local_EWH-6940-0

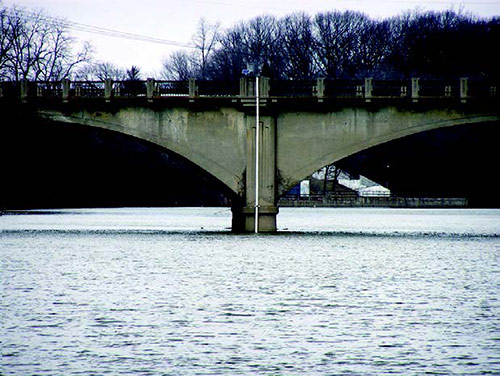

Deployment site for Indianapolis OES. The sonde is deployed in a long PVC tube for protection. The solar panel and telemetry system can be seen at bridge level.

“The YSI equipment performance has been excellent.We were able to upgrade some of our locations to real-time data transmission and we have not had a single problem. We’re collecting some very valuable data,”

comments Tom White, Senior Project Manager for the Indianapolis Office of Environmental Services.

Image-2-Local_EWH-6940-0

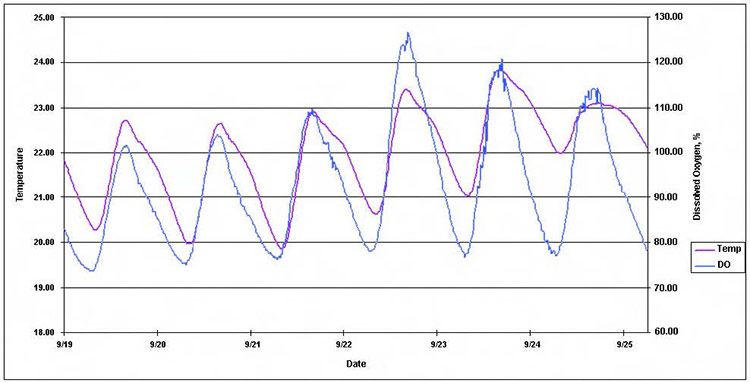

Preliminary DO and temperature data collected from an Indianapolis OES site.

For additional information regarding programs to improve water quality in the Indianapolis area, please visit http://www.indygov.org/eGov/City/DPW/Environment/WaterQuality/home.html


Monitoring CSO & Stormwater Effects Across Central Ohio

Five waterways with 34 sites in the Columbus, Ohio area are being monitored for stormwater and CSO effects using YSI multiparameter monitoring equipment. Data collected from many YSI 6600EDS and 6920 sondes deployed at these sites will be used to characterize the water quality and calibrate a water quality model.

Image-3-Local_EWH-6940-0

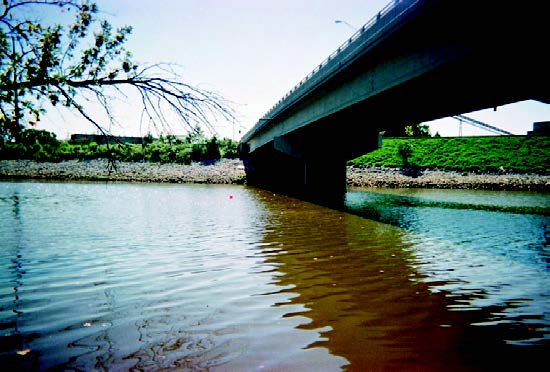

Buoy deployment site for Central Ohio study.

YSI sondes are deployed either floating in the channel or fixed to a bridge or pier. Readings are taken every 15 minutes and include dissolved oxygen, temperature, conductivity, pH, chlorophyll, turbidity, level, and rhodamine — dissolved oxygen being the focus of the study. YSI handhelds such as the Pro Plus or ProDSS (for this particular study the YSI 556 handheld units were used) to spot-check the deployed sondes when crews visit the sites. Initially, crews had trouble with super-saturated dissolved oxygen readings. Kathleen Gordon, Engineer with Malcolm Pirnie, Incorporated, elaborates

“With help from YSI we have changed our calibration method and have been getting better results this season. Overall the equipment has been reliable.”

Image-4-Local_EWH-6940-0

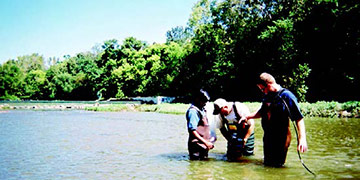

Crews use YSI equipment for spot sampling.

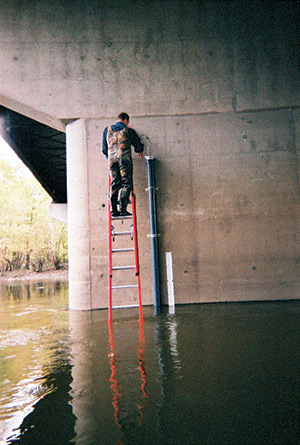

Sonde Installed on Bridge A525

Sonde with level is deployed in a tube for protection.

For additional information regarding the City of Columbus Storm Water Programs, please visit
http://utilities.ci.columbus.oh.us/sewers_drains/
