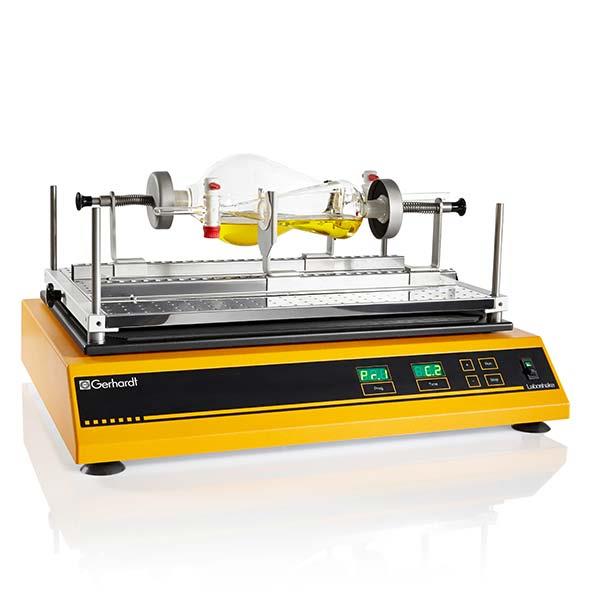

LABOSHAKE Heavy-Load Shaker

Time to shake things up with Gerhardt's LABOSHAKE, a sturdy laboratory shaker that can withstand loads of up to 30 kg (66 lbs) and can be programmed for a wide range of shaking speeds (20 to 200 rpm).

• Overview

  Gerhardt’s LABOSHAKE is a sturdy, reliable laboratory shaker that can handle loads up to 30 kg (66 lbs) on its large platform. With the ability to move in a linear or circular motion, it is ideal for use in chemical, biological, or microbiological laboratories.

  The easy-to-use onboard controller stores up to 9 programs with up to 9 steps each and has an RS-485 interface. Shaking speed can be programmed from 20 to 200 rpm.

  The low-maintenance LABOSHAKE features corrosion-resistant plastic housing and anti-slip feet to ensure stability.

  Options and accessories are available for a variety of applications, as well as tiered attachments to save bench space. For temperature-controlled applications, Gerhardt offers the THERMOSHAKE Incubator Shaker.

  LABOSHAKE Features:

  • Can handle loads up to 30 kg (66 lbs)
  • Ability to move in a linear or circular motion
  • Stores up to 9 programs with up to 9 steps each
  • Corrosion-resistant plastic housing and anti-slip feet to ensure stability

• Specifications

  General Specifications
  Type	LS 500	RO 500
  Motion	linear	circular
  Programs	9	9
  Time program [h, min, s]	99, 59, 59 and infinite	99, 59, 59 and infinite
  Speed frequency [min-1]	0 and 20 - 200	0 and 20 - 200
  Amplitude [mm]	50	50
  Maximum load [kg]	30	30
  Nominal voltage [V	230 / 115	230 / 115
  Frequency [Hz]	50 - 60	50 - 60
  Wattage [W]	80	80
  Weight [kg]	28	28
  Dimensions shaking plattform W x D [mm]	540 x 380	540 x 380
  Dimensions W x D x H [mm]	610 x 510 x 120	610 x 510 x 120
  RS-485 interface	2	2
