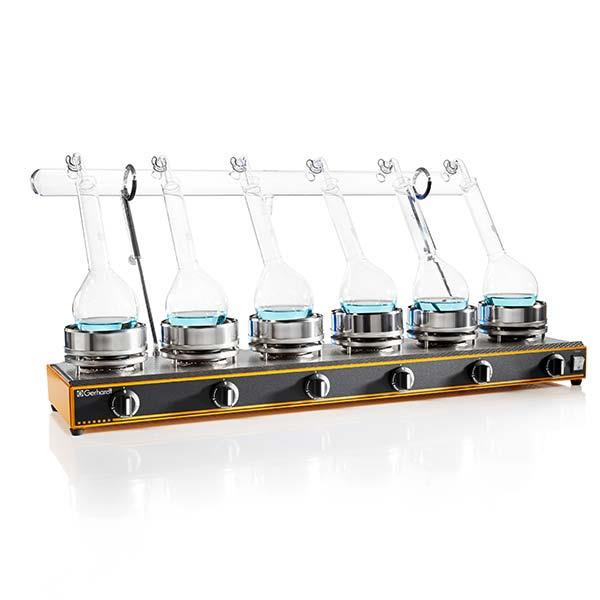

Classic Digestion Apparatus

Gerhardt's Classic Digestion Apparatus has a serial heating unit with 6 individually adjustable heaters, offering a reliable and flexible solution for the manual Kjeldahl digestion process.

• Overview

  Gerhardt’s traditional manual Kjeldahl apparatus offers a serial heating unit with 6 individually adjustable heaters that can be used with 50-, 100-, 250-, 500- or 750-ml Kjeldahl flasks.

  Flasks are available that also fit the VAPODEST.

  This apparatus can also be connected to a water jet pump or TURBOSOG suction system to process fumes.

  Classic Digestion Apparatus Features:

  • Serial heating unit with 6 individually adjustable heaters
  • Can be used with 50-, 100-, 250-, 500- or 750-ml Kjeldahl flasks

• Specifications

  General Specifications
  Type	KI 8/16	KI 11/26
  Max. temperature [°C]	600	650
  Heating places	6	6
  Size of flasks [ml]	50, 100, 250	500, 750
  Dimensions W / D / H [mm]	600 / 250 / 300	900 / 250 / 300
  Weight [kg]	8	15
  Nominal voltage [V]	230, 115	400 V 3P+N, 115
  Frequency [Hz]	50 - 60	50 - 601]
  Nominal wattage [W]	1800	3480
