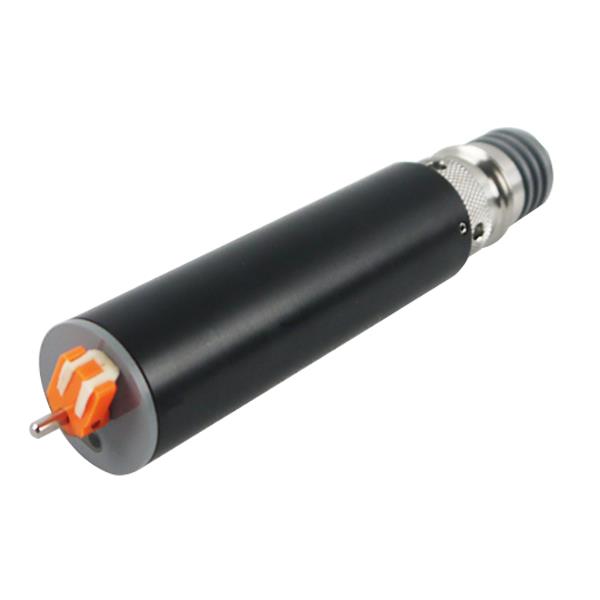

6130 Rhodamine WT Sensor

6-Series Legacy Sondes

View YSI 6-Series water quality sondes being used in a variety of water environments for long-term underwater monitoring and spot sampling.

PriceRequest Pricing

SKU006130


The YSI 6130 sensor provides accurate, in situ measurement of Rhodamine WT in fresh, brackish, sea water, stormwater, and wastewater.

This sensor must be installed into a 6-Series sonde to function. Does not function on its own.

  • Overview

    In response to the need for accurate, in situ measurement of Rhodamine WT for water and pollutant tracing, YSI has developed the 6130 Rhodamine WT Sensor.

    The 6130 is a fouling-resistant, wiped sensor designed to seamlessly integrate - using no external interface hardware - with all YSI sondes that contain an optical port. The YSI 6130 provides accurate, in situ measurement of Rhodamine WT in fresh, brackish, and sea water, as well as in stormwater and wastewater. The YSI 6130 Rhodamine WT Sensor rejects turbidity and chlorophyll interference.

    Features include:

    • Temperature compensation provides greater accuracy
    • Turbidity and chlorophyll fluorescence rejection helps eliminate interference
    • Wiped optics field-proven for fouling prevention

    The YSI 6130 sensor can be used in combination with those YSI sondes that have optical ports - 600 OMS, 6820, 6920, 6600, 6820 V2, 6920 V2, or 6600 V2 - and a YSI 650 MDS handheld display-logger. Make surface as well as vertical profile measurements. In addition, the YSI 6130 in combination with one of the YSI data logging sondes can be used for unattended continuous monitoring or integrated with data collection platforms for real-time data acquisition. Measurement accuracy is further enhanced through correction for the effects of temperature.

    Notable Specifications:

    • Range: 0-200 ug/L
    • Resolution: 0.1 ug/L
    • Accuracy: +/-5% reading or 1 ug/L, whichever is greater

  • Specifications
    Certifications and RoHS, IP-67, FCC, U.S. EPA ETV, WEEE, Assembled in the USA, CE
    Depth / Pressure Rating / Limit Deep depth Option: 200 ft, 60 m
    Equipment used with 6820V2, 6920, 6600V2, 6820, 6600EDS, 6920V2, 6600, 600OMS
    Monitoring Yes
    Parameters Measured Rhodamine
    Precision 0-200 µg/L
    Sampling Yes
    User Calibratable Yes
    User Replaceable Yes
    Warranty

    2 years
