EXO Handheld Display

EXO Sonde Overview | Multiparameter Water Quality

Explore common features and individual options of the different EXO Multiparameter Water Quality Sondes

Price$3,220.00 (US Only)

SKU599960


In Stock 1

Enhanced interface for calibrating and data logging with the EXO platform.

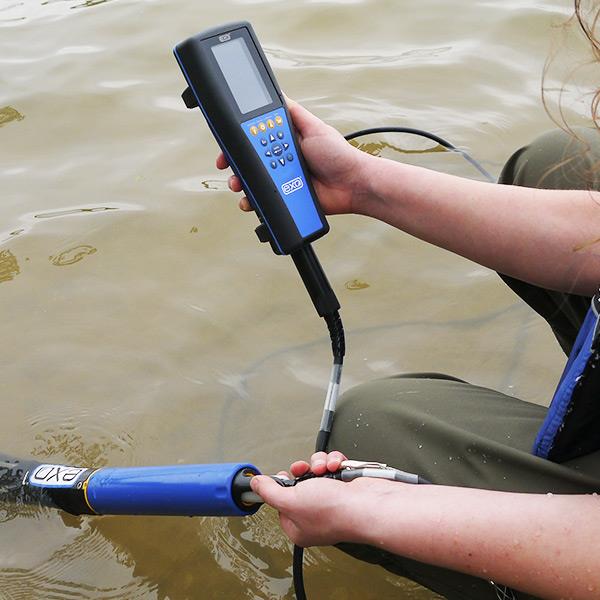

The EXO Handheld offers convenient monitoring with a dedicated, streamlined interface to EXO Sondes. The ultra-rugged handheld features a backlit color display, ergonomic design, and simple operation.

Download the EXO Handheld Operation Mini-Manual


  • Overview

    The EXO Handheld from YSI is designed and engineered as a dedicated interface to EXO sondes. With this feature-packed device, you can log real-time data, calibrate sensors, set up sondes for deployment, and transfer water quality data to a PC. Designed for reliable field use in challenging environmental conditions, this display features a waterproof IP-67, an impact-resistant case, and a wet-mate connector.

    Discover the benefits of the EXO Handheld:


    Lighten the load for long trips into the field with an ergonomic device that feels at ease in your hand while sampling and profiling


    Lower the learning curve of collecting high-quality data with a simplified user interface and integrated help screens


    Keep your sensors performing at their best with automatic calibration reminders based on your standard operating procedures


    Build a georeferenced data set using GPS and site tagging functionality for up to 100 locations



    Quickly transfer collected data sets and calibration records to a USB flash drive with the push of a button

    Battery Icon


    Eliminate the need for alkaline batteries and sample for longer than ever with a powerful rechargeable Li-Ion battery

    Designed for Use with EXO Multiparameter Sondes

    • EXO1 Sonde — Compact design with 4 ports.
    • EXO2 Sonde — 7-port, high-capacity monitoring.
    • EXO3 Sonde — 5-port, cost-effective option.
    • EXO2s Sonde — offers the same features as the EXO2, but without the battery compartment

  • Specifications
    Autostable Yes
    Cable Options Any EXO field cable
    Certification CEC, CE; RoHS; IP-67; WEEE; FCC; UN Part III, Section 38.3, Test methods for lithium-ion batteries (Class 9)
    Connector Wet-mate connectors
    Desktop Software Compatible KOR software for the EXO platform
    Equipment used with Any EXO Sonde
    GPS Yes
    Graphic Display Graphic display with detailed help menus and auto-sized dashboard text based on number of sensors
    Keypad Yes
    Languages German, English, Spanish, Italian, Norwegian, Traditional Chinese, French, Simplified Chinese, Japanese, Portuguese
    Logging Capabilities > 100,000 data sets with single point or continuous logging with autostability option
    Operating Temperature 0 to 50 °C (32 to 122 °F)
    Power Rechargeable lithium-ion battery pack provides ~48 hours if powering the handheld only and ~20 hours if powering the handheld, sonde and four sensors; battery recharge time is ~9 hours with the AC power adapter. The instrument can also be powered via AC or external power pack though the USB port.
    Sampling Yes
    Size

    Instrument: 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.27 in x 8.5 in x 2.21 in)

    Storage Temperature 0 to 45 °C (32 to 113 °F) with battery installed; 0 to 60 °C (32 to 140 °F) without battery installed. Note: Storing Li-Ion batteries in cool environments will help extend their lifespan.
    User Calibratable Yes, 400 detailed calibration records can be stored and are available to view, download and print for traceability.
    Warranty

    3-year handheld; 1-year Li-ion battery pack

    Waterproof Floats, IP-67
    Weight Weight with Battery, 567 grams (1.25 lbs)
  • Software
    Kor Software - v1.4.1.10
    Oct 2024

    Kor Software is designed to interface with both EXO and ProDIGITAL (DSS) instruments, including the new ProSwap Logger. Use Kor Software to view live data, import/export recorded data, calibrate sensors, manage handheld settings, set up deployments, and more! This software is included on a USB flash drive that ships with all new instruments, and the latest version can be found here on the website.

    Use with the following instruments:

    • EXO Sondes
    • ProSwap Loggers
    • ProSwap Handhelds
    • ProSolo Handhelds
    • ProDSS Handhelds

    Functions:

    • Calibrate Sensors
    • View and Record Live Data
    • Download and View Recorded Data
    • Set Up Deployments
    • Configure Handheld Settings
    • Adjust Instrument and Sensor Settings

    What's New:

    Kor Software replaces both KorEXO and KorDSS as the primary user interface for managing EXO and ProDIGITAL (ProSwap, ProSolo, and ProDSS) instruments and data.

    Note: Be sure to update instrument firmware before attempting to download data.

    Software Change Notes [PDF]

    Download Kor Software

  • Firmware
    EXO Firmware Update Package - v5.5.0.0
    Apr 2024

    If you've experienced problems with automatically downloading the latest firmware versions for your EXO equipment using KOR Software, you can attempt a manual update using this firmware package. This will update the EXO Sonde to version 1.0.86.

    EXO Firmware Update Instructions [PDF]

    EXO Firmware Change Notes [PDF]

    Download EXO Firmware
