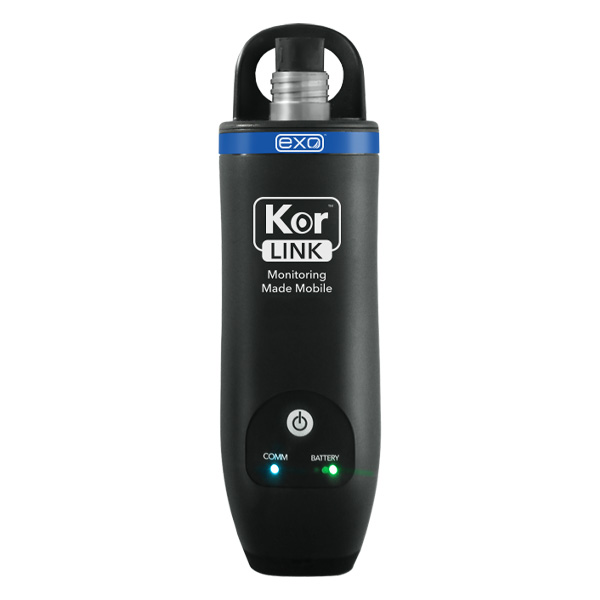

EXO KorLink Bluetooth Adapter

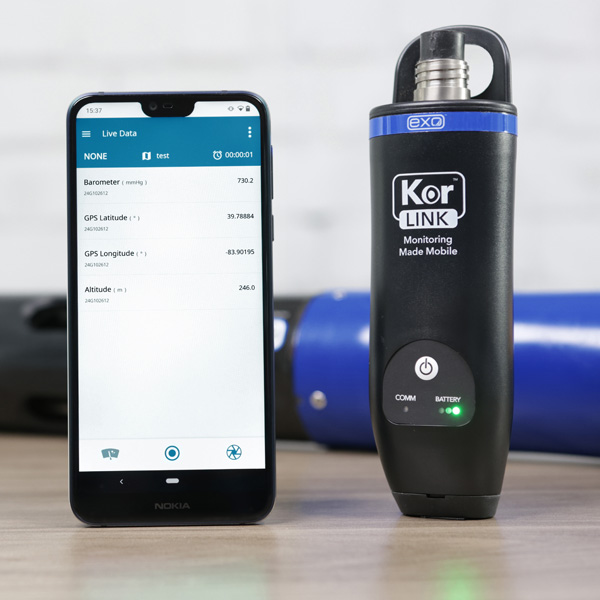

The EXO KorLink is a Bluetooth communication adapter designed for seamless integration with any EXO sonde with a field cable. It connects to iOS or Android mobile devices via the Kor Mobile App, or to Windows tablets and laptops using Kor Software.

EXO KorLink serves as the next-generation replacement for the EXO GO, offering enhanced functionality and flexibility in the field.

• Overview

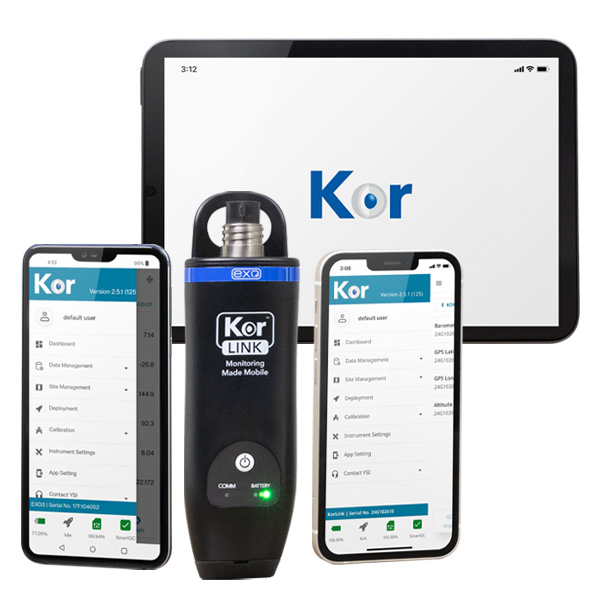

  The EXO KorLink is a versatile Bluetooth adapter designed for seamless integration with any EXO sonde and field cable. Compatible with iOS, Android, tablets, and laptops, it enables full access to Kor Software via the mobile app or desktop platform.

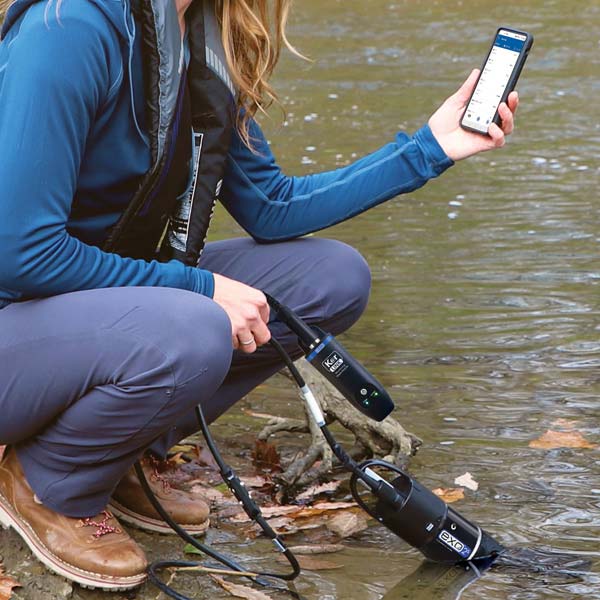

  KorLink features an integrated GPS and barometer for precise location tracking and pressure compensation, enhancing measurement accuracy. Ideal for discrete sampling, it converts your mobile device into a handheld meter for real-time data collection and sonde control. After sampling, KorLink also functions as a wireless interface, enabling seamless data transfer from a deployed EXO sonde to your device.

  Key Benefits

  • Hands-free use with included breakaway belt clip
  • Onboard memory
  • Rechargeable lithium-ion battery
  • Compatible with iOS, Android, or Windows devices
  • Built-in barometer and GPS

• Specifications

  Battery Operating Time	15+ hours (powering EXO3 with full payload)
  Bluetooth Frequency	2.402 – 2.480 GHz
  Bluetooth Transmission	Class 2, 10 m typical range
  Compliance	BC; CE; RoHS; WEEE; FCC ID: T9J-RN42; ISED ICES; RCM; TELEC; VCCI
  Connectivity / Communications	Micro USB, Bluetooth, BTC for Computer, BTC with Android, BTLE Apple with SD Card
  Connector	MCIL Female wet-mate connector, USB Micro-AB receptacle
  Depth / Pressure Rating / Limit	Immersion up to 1 m for 30 minutes
  Enclosure	Xenoy
  Equipment used with	Any EXO Sonde and Windows OS, Android, or iOS mobile device
  GPS	GPS + u-blox MAX-M10S Ultra Low Power GNSS Receiver Type, Lat/Long = decimal degrees; Altitude = m (80,000 m limit); 1.5 m CEP Position Accuracy
  Operating Temperature	-5°C to 50°C (23°F to 122°F)
  Power	Rechargeable Li-Ion battery (typically 9 hours of charging time for a full charge). 15+ hours of operating time (powering an EXO3 with full payload). 12 VDC voltage output.
  Size	17.8 x 5.1 x 3.8 cm (7.0 x 2.0 x 1.5 in)
  Software	Kor for Windows OS devices; Kor Mobile for Android and iOS mobile devices
  Storage Temperature	-20°C to 50°C (-4°F to 122°F)
  Warranty	1 year
  Waterproof	IP-67 rated
  Weight	242 g (0.53 lbs)

• Accessories



  EXO Field Cable

  Field Cable

• What's Included
  • KorLink
  • Rechargeable Lithium-Ion Battery (pre-installed)
  • Detachable Belt Clip and Attachment Kit
  • Micro USB Cable (for charging)
  • USB Flash Drive
  • International Outlet Adapter
  • Quick Start Guide
  • Belt Clip Installation Guide
• Video

  Kor Mobile App | Overview

  The Kor Mobile App, now available on iOS and Android. Kor Mobile offers a convenient way to interface with your EXO multiparameter water quality sonde, from calibrating sensors, to setting unattended deployments, to viewing data and sharing it remotely over wireless networks.
