EXO NitraLED UV Nitrate Sensor Overview

Utilizing state-of-the-art UV LED technology, EXO NitraLED is an optical nitrate sensor designed for long-term, low-drift monitoring.

PriceRequest Pricing

Option

SKU608090


EXO NitraLED UV Nitrate Sensor for Freshwater Environments

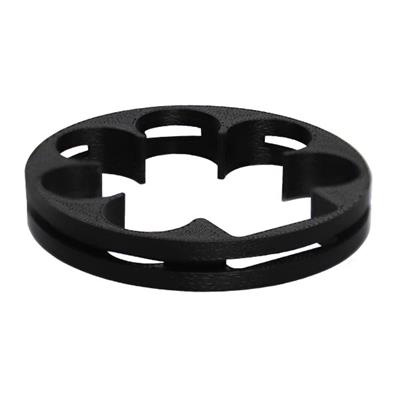

608090 EXO NitraLED Kit includes necessary Alignment Ring and Wiper Brush for EXO2 and EXO3 installations.

608040 EXO NitraLED Sensor includes only the sensor.

This sensor must be installed into an EXO Sonde to function. Does not function on its own.

  • Overview

    Nitrate Monitoring, Enlightened.

    Utilizing state-of-the-art UV LED technology, EXO NitraLED™ is an optical nitrate sensor designed for long-term, low-drift monitoring. Built-in corrections for Natural Organic Matter (NOM) and Turbidity minimize interference in freshwater environments. Its compact form factor allows for seamless integration with any EXO Sonde.

    LIGHT UP YOUR MONITORING!
    Expand and enhance your water quality monitoring program with UV Nitrate for more informed decision making.

    LIGHTEN YOUR BUDGET!
    The world’s most accessible monitoring solution for nitrate, at a fraction of the cost of lamp-based monitors.

    LIGHTEN YOUR LOAD!
    Fits in the palm of your hand—and integrates directly into any EXO Sonde. No external hardware required!

    Nitrate Sensor

    Learn more about EXO NitraLED

    Compact and Accurate
    The EXO platform offers a completely new approach - highly accurate, quick-response sensors in a small, easy-to-deploy and easy-to-maintain package. Gone are large and complicated sensor arrangements requiring complex integration.

    Smart Probes
    All EXO sensors have onboard memory and processing, allowing users to easily calibrate and configure sensors at one location and distribute to various field sites. Smart sensors are auto-recognized from any port of an EXO sonde making sensor payloads interchangeable and completely customizable.

    Smart Ports
    Wet-mateable connectors allow for swaps in wet conditions, while the smart ports shut down any excessive current draws to prevent damage.

    Designed for Use with EXO Multiparameter Sondes
    Please visit the EXO Sonde Platform to explore more of our EXO offerings!

  • Specifications
    Depth Rating 250 m
    Dimensions

    Length: 21.3 cm; Diameter: 1.5 cm; Weight: 0.07 kg

    Drift / Stability

    ≤ 0.2 mg/L–N²

    Equipment used with EXO™
    Lab Accuracy

    0 to ≤ 10 mg/L                 ± 0.1 mg/L–N or 5% of reading, w.i.g. (within 2°C)
                                              ± 0.4 mg/L–N or 5% of reading, w.i.g. (full temp range)¹


    > 10 to 30 mg/L               >±7% of reading

    Light Source UV LED (x2)
    Measurement Range

    0 to 30 mg/L

    Medium

    Fresh water

    Minimum Detection Limit

    0.01 mg/L–N¹

    Nominal Wavelengths 235 nm, 275 nm
    Operating Temperature 5-35°C
    Pathlength 10 mm
    Precision

    ≤ 2% Coefficient of Variation (CV)¹

    Resolution

    0.01 mg/L–N¹

    Response Time T95 < 30 seconds
    Sensor Optical, absorbance
    Storage Temperature -20-80 °C
    Unit of Measure NO3-N (Nitrate-N) in mg/L
    Warranty

    2 years

    EXO sensors are not compatible with YSI 6-Series sondes, sensors, or handheld.

    1These apply to analytes comprised of nitrate in pure water only and absent of all other absorbing species.
    2 Assumes a 30 day deployment with a 15 minute logging interval, and does NOT account for drift due to fouling.

  • Accessories

    EXO NitraLED Wiper Brush Kit

    Wiper brush for EXO NitraLED UV Nitrate Sensor

    NitraLED Calibration Standard

    Calibration Standard for EXO NitraLED UV Nitrate Sensor

  • Firmware
    EXO Firmware Update Package - v5.5.0.0
    Apr 2024

    If you've experienced problems with automatically downloading the latest firmware versions for your EXO equipment using KOR Software, you can attempt a manual update using this firmware package. This will update the EXO Sonde to version 1.0.86.

    EXO Firmware Update Instructions [PDF]

    EXO Firmware Change Notes [PDF]

    Download EXO Firmware

  • Video

    EXO NitraLED UV Nitrate Sensor Overview

    Utilizing state-of-the-art UV LED technology, EXO NitraLED is an optical nitrate sensor designed for long-term, low-drift monitoring.
