MultiLab 4010-2W

YSI MultiLab - Simplify Your Lab

The YSI MultiLab line allows you to customize your single channel, dual channel, and three channel instruments to meet the demands of your application. With the ability to measure up to 25 different parameters and simultaneously connect up to three sensors, the MultiLab is a line of flexible, bench top meters that can help streamline your lab.

Price$1,490.00 (US Only)

SKU1FD560Y


In Stock 3

Laboratory instrument for DO/BOD, pH, ORP, conductivity and ion activity measurement. EPA approved for drinking water and wastewater compliance reporting.

Connect digital IDS sensors to the MultiLab 4010-2W for the measurement of DO/BOD, pH, ORP, and conductivity in any combination. Ion selective electrodes (ISEs) can also be connected to the instrument.

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

Please see the MultiLab Ordering Guide if ordering a complete system, or contact us if you have any questions.

  • Overview

    The YSI MultiLab line includes the 4010-1W (single channel), 4010-2W (dual channel) and 4010-3W (three channel) instruments providing easy to use and calibrate menu-driven operation ideal for the laboratory.

    All MultiLab instruments can accurately measure pH, ORP, conductivity, and DO/BOD. ISEs can also be connected to two and three channel instruments.

    Please visit the MultiLab Kits page for fully assembled systems.

    Features of the MultiLab line:

    • Input for pH, ORP, DO/BOD (optical or polarographic), or conductivity sensors
    • ISEs with BNC connection can be connected to the MultiLab 4010-2W and 4010-3W with an adapter (108132Y) that converts one digital input to an analog BNC input (i.e. only one ISE can be connected)
    • Built-in OUR/SOUR software on the MultiLab 4010-2W and 4010-3W
    • Wireless sensors available for the MultiLab 4010-1W, 4010-2W, and 4010-3W
    • Data storage - 500 data sets in manual mode and 5,000 (MultiLab 4010-1W) or 10,000 (MultiLab 4010-2W and 4010-3W) data sets in automatic logging mode
    • Large, easy to read graphic display
    • Color screen and antibacterial keypad on MultiLab 4010-2W and 4010-3W instruments
    • Intelligent, digital sensors - plug and play connectivity
    • GLP traceability (sensors store serial # and calibration data)
    • USB connectivity to manage data; USB cable included
    • PC software included for easy data transfer
    • Durable electrode stand included
    • 3-year warranty

    Intelligent Digital Sensors (IDS)

    The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The sensors can be moved from instrument to instrument and maintain their calibration data and transmit this information to the new instrument.

    • Plug and play connectivity with each instrument
    • IDS sensors store their own unique ID with serial number and calibration data
    • Digital sensor recognition, processing and data transfer
    • Includes self-stirring BOD (optical or polarographic), fluorescent dissolved oxygen (FDO), pH, ORP and conductivity sensors

    Wireless Sensors

    Free yourself from cables! The MultiLab offers wireless sensors for pH, FDO, conductivity, and ORP, giving you freedom to move around your laboratory.

    EPA Approved Methodology

    The IDS OBOD probe (optical) and the IDS 4100 BOD probe (polarographic) can be used for wastewater compliance reporting of BOD and CBOD. Available IDS pH and conductivity sensors can also be used for drinking water and wastewater compliance reporting.

    By using the available BNC adapter and the corresponding ISE, the MultiLab 4010-2W and 4010-3W can be used for compliance reporting of Ammonia (wastewater), Bromide (wastewater), Chloride (wastewater), Cyanide (wastewater and drinking water), Fluoride (wastewater and drinking water), Nitrate (wastewater and drinking water), Potassium (wastewater), and Sulfide (wastewater).


    You may be interested in downloading the YSI pH Handbook - a practical guide to pH measurements in the lab and field. It's full of tips and recommendations for ensuring accurate, repeatable pH measurements.

    pH Handbook on Homepage Download

  • Specifications
    Autostable Yes
    Benchtop Yes
    Buffer Recognition Yes
    Certifications cETLus, CE
    Connectivity / Communications USB-A, Mini USB
    Data Management

    500 data sets in manual mode and 10,000 data sets in automatic mode

    Desktop Software Compatible BOD Analyst Pro desktop software to automatically calculate BOD values
    Digital / Digital Sensors Yes
    Display

    Large, easy to read graphic color displays

    Equipment used with Multilab IDS probes and accessories
    GLP Compliance Yes
    Graphic Display Large, easy to read graphic color displays
    Keypad Antibacterial
    Logging Capabilities Yes
    Measurement Method / Channels 2 Measurement Channels
    Measurement Range

    pH - 0.000 to 14.000 (+/-0.004), Conductivity - 10 µS/cm to 2,000 mS/cm +0.5% of value (301710Y), .01µS/cm to 200 µS/cm +0.5% of value (301720Y), TDS - 0 to 100ºC (32 to 212ºF), Dissolved Oxygen - 0 to 50 mgL; 0 to 500% air saturation, Salinity - 0.0 to 70.0 ppt +0.5% of value

    Operating pH Range 0.000 to 14.000 (+/-0.004)
    Operating Temperature 32 to 176º degrees F
    Parameters Measured

    Temperature, Conductivity, Resistivity, Salinity, TDS (Total Dissolved Solids), pH/mV, Oxidation Reduction Potential (ORP), Partial Pressure, Dissolved Oxygen (% and mg/L* (BOD)

    Power Universal power supply
    Sampling Yes
    Smart Sensors / Ports Intelligent Digital Sensors (IDS)
    User Calibratable Yes
    User Replaceable Yes
    Warranty

    3 years

    Waterproof Yes
  • Accessories

    pH Buffer

    pH Buffer

    Conductivity Calibrator Solution

    Conductivity Calibrator Solution

    MultiLab IDS ProOBOD

    Optical Self stirring BOD probe with temperature sensor, IDS

    MultiLab IDS 4100 ProBOD Polarographic Probe

    Self-stirring, polarographic, membrane-covered BOD probe

    MultiLab IDS 4110 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 1.5 meter cable

    MultiLab IDS 4110-3 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 3 meter cable

    MultiLab IDS 4120 pH and Temperature Sensor

    Combination pH and temperature, plastic, 3 mol KCl, digital,double junction, 1.5 meter cable, refillable reference

    MultiLab IDS 4130 pH and Temperature Sensor

    Combination pH and temperature, Glass, 3 mol KCL, digital, double junction probe, 1.5 meter cable, refillable reference

    MultiLab IDS 4211 ORP and Temperature Sensor

    ORP and temperature, glass, 3 mol KCl, digital, double junction probe with refillable reference, 1.5 meter cable

    MultiLab IDS 4310 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 1.5 meter cable

    MultiLab IDS 4310-3 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 3 meter cable

    MultiLab IDS 4320 Conductivity and Temperature Sensor

    Conductivity and temperature, Stainless Steel body, 2-electrodes, digital probe, 1.5 meter cable

    MultiLab FDO 4410 IDS Sensor

    Fluorescent dissolved oxygen (FDO) probe with temperature sensor

    MultiLab IDS 4110W pH and Temperature Wireless Sensor

    Wireless pH and temperature, plastic, gel, digital, double junction probe

    MultiLab IDS 4120W pH and Temperature Wireless Sensor

    Wireless pH and temperature, plastic, 3 mol KCl, digital, double junction probe with refillable reference

    MultiLab IDS 4130W pH and Temperature Wireless Sensor

    Wireless pH and temperature, glass, 3 mol KCL, digital, double junction probe with refillable reference

    MultiLab IDS 4210W ORP Wireless Sensor

    Wireless ORP, glass, 3 mol KCl, digital, double junction probe with refillable reference

    MultiLab IDS 4310W Conductivity and Temperature Wireless Sensor

    Wireless conductivity and temperature, epoxy body, 4-graphite electrodes, digital probe, K= 0.475 cm-1

    MultiLab IDS 4320W Conductivity and Temperature Wireless Sensor

    Wireless conductivity and temperature, stainless steel body, 2-electrodes, digital probe, K = 0.1 cm-1

    MultiLab FDO 4410W IDS Wireless Sensor

    Wireless fluorescent dissolved oxygen (FDO) probe with temperature

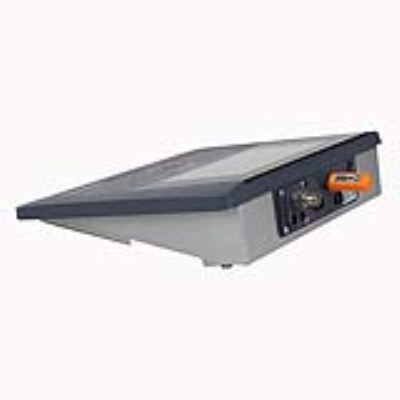

    Wireless Meter Module for MultiLab

    WA-M wireless meter module

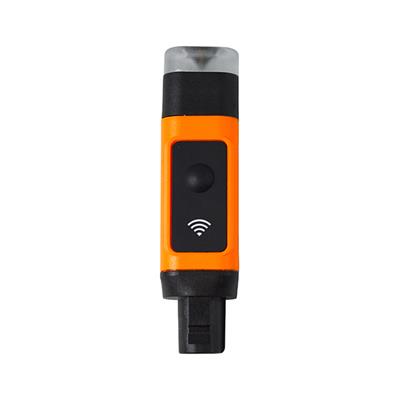

    Battery Charger for MultiLab Wireless Sensor Module

    Charger for MultiLab WA-S wireless sensor module

    MultiLab Wireless Module Kit

    Kit with WA-S wireless sensor module, WA-M wireless meter module, charger for WA-S modules, and USB power supply

    MultiLab Cable Adapters for Wireless Sensors

    Cables for wireless MultiLab sensors

    MultiLab 4011 BOD Adapter

    Cable for connecting YSI 5010 BOD probe to MultiLab

    MultiLab OBOD/BOD Probe Stirrer Adapter

    OBOD/BOD power stirrer adapter

    QSC Kit

    Calibration kit for IDS pH electrodes; 3 ampules: 4.01, 6.86, 9.18

    MultiLab 4010-2/3 DIN Adapter

    DIN pH/ORP adapter for MultiLab 4010-2/3 instruments

    MultiLab 4010-2/3 BNC Adapter

    BNC pH/ORP/ISE adapter for MultiLab 4010-2/3 instruments

    MultiLab 4010 Power Supply

    Universal power supply for MultiLab instruments

    MultiLab 4010 Stand

    Stand + holder for MultiLab 4010

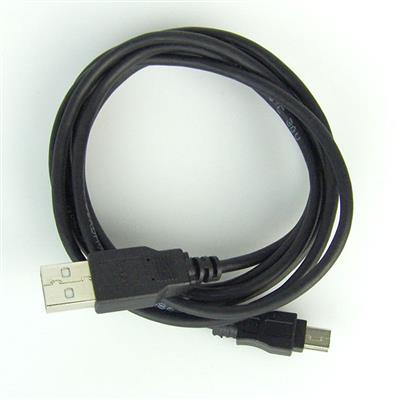

    USB A – Mini B Cable

    USB cable for connecting instrument with USB-Mini B to a Computer

    UK Style BOD bottle funnel adaptor

    Allows OBOD to be used in UK BOD bottles

    TruLab/MultiLab Printer Paper

    Replacement printer paper

    3 M KCl Electrolyte Solution

    250 mL of solution for refillable lab electrodes

    Replacement OBOD Sensor Cap Kit

    Replacement OBOD Sensor Cap Kit

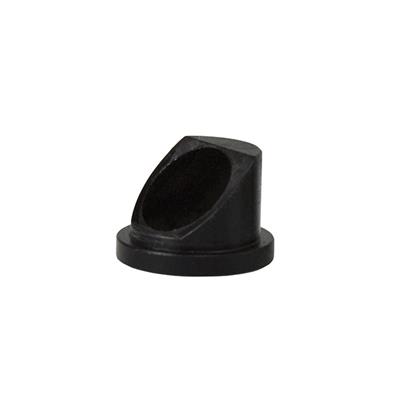

    Replacement Cap for MultiLab FDO Sensor

    FDO replacement cap for MultiLab 4410 and 4410W sensors

    TruLine Ammonium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Ammonia Electrode Kit

    Includes ISE, 2 membrane modules, fill solution, ISA, and high standard.

    TruLine Bromide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Cadmium Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Calcium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Chloride Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Copper Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Cyanide Electrode Kit

    Includes ISE with refillable reference, fill solution, and ISA.

    TruLine Fluoride Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Iodide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Lead Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Nitrate Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high (1000 mg/L) standard.

    TruLine Potassium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Silver/Sulfide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high silver standard.

    TruLine Sodium Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

  • Video

    YSI MultiLab Laboratory Meter | BNC connection

    Ion selective electrodes (ISEs) with BNC connections can be connected to the YSI MultiLab 4010-2 and MultiLab 4010-3 with an adapter that converts one digital input to an analog BNC input. See how easy is it to connect the adapter!

    YSI MultiLab Laboratory Meter | From the Box to the Lab

    The MultiLab instrument measures pH, ORP, conductivity, BOD and ion activity measurement. Connect digital Intelligent Digital Sensors (IDS) to the MultiLab 4010-3 for the measurement of pH, ORP, conductivity, and DO/BOD in any combination. Ion selective electrodes (ISE) can also be connected to the instrument. Find out all the other great features of the YSI MultiLab instrument in this video including the large, graphic display, plug-and-play connectivity, GLP traceability, USB connectivity to manage data, electrode stand, 3-year warranty and much more.

    YSI MultiLab Line of Instruments for pH, ORP, conductivity, BOD and Ion Activity Measurement

    The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments ideal for the laboratory.
