SonTek-IQ Series

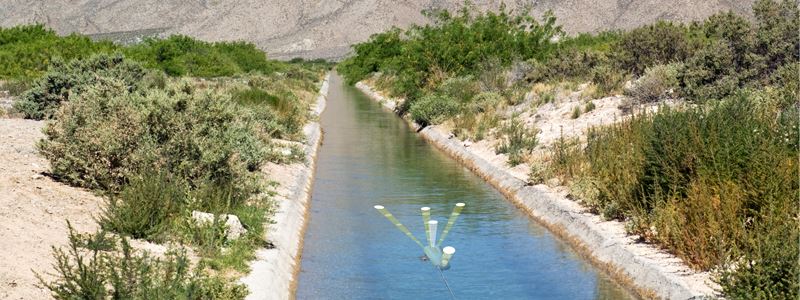

Ideal for monitoring flows in canals, culverts, pipes, and natural streams, the SonTek-IQ starts with a custom flow algorithm derived from hundreds of field measurements. Four velocity beams profile water velocity along both the length and width of the channel, to ensure the best possible coverage and most accurate representation of the velocity field. The built-in pressure sensor and vertical acoustic beam work in tandem to measure water level. Simply input the channel geometry using the intuitive SonTek-IQ software and you are outputting flow data in minutes.

All stainless steel hardware makes the IQ even more capable in difficult environments such as stormwater and certain wastewater where corrosion is a potential concern.

• Overview

  Capable of working both in artificial and natural channels, the SonTek-IQ can collect flow (area-velocity) and volume data in as little as 8 cm (3 in) of water. Its five-beam pulsed Doppler design is Modbus, SDI-12, RS232, and Analog ready. Even better news - the SonTek-IQ installs with limited or no earthworks. With the SonTek-IQ, expect to get quality data for quality decision-making.

  • Self-contained all-in-one design
  • Proprietary flow algorithms for irrigation canals, natural streams, and pipes
  • Uses SonTek's exclusive SmartPulseHD adaptive sampling
  • Self-calibrating water level using vertical acoustic beam and pressure
  • The standard package includes the SonTek-IQ, IQ software, easy mounting hardware, cable, adaptor, and power supply

  The SonTek-IQ Standard, the SonTek-IQ Plus and SonTek-IQ Pipe all operate at 3 MHz. The Standard model works in depths up to 1.5 m (5 ft), while the Plus and Pipe models are ideal for water depths up to 5m (16 ft). The SonTek-IQ Plus/Pipe also incorporates advanced post-processing functions, providing deeper insight into your flow and volume data. All models use SonTek's proprietary algorithm SmartPulseHD.



• Specifications

  Specifications	Standard	Plus	Pipe
  Application1	Regular Canals	Open Channels	Open Channels
  Acoustics Beams — Along-Axis (2)	25° off-vertical axis, along the axis of channel	25° off-vertical axis, along the axis of channel	25° off-vertical axis, along the axis of channel
  Acoustics Beams — Skew (2)	60° off vertical and 60° off-center axis of channel	60° off vertical and 60° off-center axis of channel	37° off vertical and 45° off-center axis of channel
  Velocity — Sampling Range	0.05 – 1.5 m | 0.16 - 5 ft	0.05 – 5.0 m | 0.16 - 16 ft	0.05 – 5.0 m | 0.16 - 16 ft
  Number of Cells	1	Up to 100	Up to 100
  Cell Size	Dynamic integrated	2 cm – 10 cm | 0.8 - 4 in	2 cm – 10 cm | 0.8 - 4 in
  Velocity — Range	±5 m/s | 16 ft/s	±5 m/s | 16 ft/s	±5 m/s | 16 ft/s
  Velocity — Resolution	0.0001 m/s | 0.0003 ft/s	0.0001 m/s | 0.0003 ft/s	0.0001 m/s | 0.0003 ft/s
  Velocity — Accuracy	±1% of measured velocity, ±0.5 cm/s  | 0.2 in/s	±1% of measured velocity, ±0.5 cm/s  | 0.2 in/s	±1% of measured velocity, ±0.5 cm/s  | 0.2 in/s
  Advanced Data Reprocessing	N/A	Yes	Yes
  Increased Number of Data Fields	N/A	Yes	Yes
  Vertical Beam Range2	0.05 – 1.5 m | 0.2 - 5 ft	0.05 - 5.0 m | 0.2 - 16 ft	0.05 - 5.0 m | 0.2 - 16 ft
  Water Level Accuracy	0.1% of measured depth or ±0.003 m (0.01 ft), whichever is greater	0.1% of measured depth or ±0.003 m (0.01 ft), whichever is greater	0.1% of measured depth or ±0.003 m (0.01 ft), whichever is greater
  Pressure — Range3	30 m | 98 ft; 42 psi	30 m | 98 ft; 42 psi	30 m | 98 ft; 42 psi
  Pressure — Accuracy	0.1% of full scale	0.1% of full scale	0.1% of full scale
  Communications	RS232, SDI-12, Modbus, Analog (via optional Flow Display)	RS232, SDI-12, Modbus, Analog (via optional Flow Display)	RS232, SDI-12, Modbus, Analog (via optional Flow Display)
  Data Storage	4GB (approximately 1-yr)	4GB (approximately 1-yr)	4GB (approximately 1-yr)
  Operating Temperature	-5 to 60°C | 23-140°F	-5 to 60°C | 23-140°F	-5 to 60°C | 23-140°F
  Temperature & Tilt Sensors	Yes	Yes	Yes


  ¹ The SonTek-IQ Series is not IS or ATEX certified. Do not use in areas with explosion risk.
  ² Water level measured primarily with vertical beam, with pressure sensor for redundancy.
  ³ For use in pressurized pipes. Housing rated to 42 psi.

• Accessories



  IQ Series Tool Kit

  Tool Kit



  IQ Series Spare Parts Kits

  Spare Parts Kits



  SL/IQ Series Communication Cable

  Communication Cable



  SL/IQ Series Battery Hook-Up Cable

  Battery Hook-Up Cable



  SL/IQ Series Dummy Plug Kit

  Dummy Plug Kit



  SL/IQ Series Power Supply

  Power Supply



  SL/IQ Series Cable Adaptor

  Cable Adaptor

• Software


  Flowpack Software - V 1.21

  Become an instant velocity-indexing pro! FlowPack allows you to generate easy to interpret Velocity-Index ratings. Promising to make your data reporting process a whole lot friendlier (and faster), FlowPack also provides a simple method to store flow, velocity, and stage measurements — all through one software program. FlowPack can produce comprehensive reports that assist you in making better, more informed decisions.

  ---



  SonTek-IQ Software - V 3.0

  The SonTek IQ Window-based software package contains an all in one package for interfacing with the SonTek IQ Standar, Plus and Pipe models. The software is used to interface, configure the system, visualize and export data.

  Recent improvements include:

  • Added user-configurable (manual) velocity cell sizes
  • Increased sampling interval and duration range: 1 to 3600 seconds
  • Improved performance in very shallow water (less than 15cm)

  Other features include:

  • Water level options, including the ability to use pressure data if vertical beam is too shallow or variable. Gives you more data in shallow and variable conditions when data might otherwise not be reported. Prevents data loss.
  • Advanced user settings for working in difficult flow regimes. Gives you more flexibility to adapt to conditions at your particular site.
  • File size limit on recorded data files. The IQ reports lots of data--you might want all those data but not in large file sizes that take long to download. Now, you can opt to limit file sizes for more bite-size downloads.
  • Modbus output now includes the 40,000 registers. Some Modbus users will find this easier to integrate with their networks.
  • When outputting total volume, now you can choose to reset the total volume after N samples. This is more convenient and allows higher-resolution data for those outputting data over analog signal that has to be set up with a maximum analog signal range.

  ---

  SonTek-IQ Firmware - V 3.1

  SonTek-IQ firmware version 3.1 addresses:

  • Fix for SDI-12 data logger interruptions
  • Improved in-air pressure calibration routine
  • Corrected ASCII “A” command response when the Sample Interval is not equal to the Sample Duration.

  ---
