WE710 Surface Temperature Sensors

Price$507.00 (US Only)

SKUEFA000


In Stock 0 - Available for Backorder

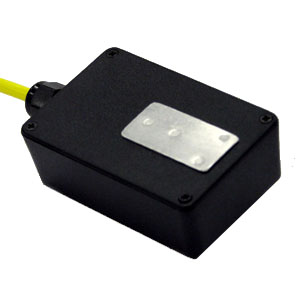

The surface temperature sensor outputs 4-20 mA with a two-wire configuration. Each surface temperature sensor is molded to a marine grade cable, with lengths up to 500 ft available upon request. The surface temperature sensor's electronics are encapsulated in marine-grade epoxy within an ABS plastic housing.

  • Overview

    FEATURES

    • 4-20 mA output
    • Marine grade cable with strain relief
    • Fully encapsulated electronics

    Surface Temperature Sensor Applications

    The surface temperature sensors are well suited for many applications including, pipe temperature monitoring, solar panel temperature, water tanks, control panels, battery monitoring, and many others.

    What is Temperature and How is it Affected?

    Temperature is typically measured in degrees Celsius or Fahrenheit. To accurately measure temperature the surface temperature sensor should be mounted in direct contact with the surface to be measured. Using the surface temperature sensor's included silicone heat transfer compound will ensure that temperature transfer from the monitored surface to the sensor's heatsink will be efficient, minimizing the impact of ambient temperature on the measurement. Dirt or other insulators, like paper labels, can cause errors in the surface temperature sensor's reading or cause slower response times.

  • Specifications
    Specifications
    Sensor Type 100ohm Platinum Class A RTD
    Output

    4-20 mA

    Range -58°F to +185°F (-50°C to +85°C)
    Accuracy

    ±0.5°F (±0.25°C)

    Operating Voltage 10-36 VDC

    Storage Temperature

    -67°F to +195°F (-55°C to +90°C)

    Current Draw

    Same as sensor output current

    Warm-Up Time 3 seconds minimum
    Sensing Surface

    0.75x1.5 inch (19x38 mm) Aluminum

    Housing 2.0x1.1x3.8 inch (5x2.8x9.7 cm) (WxHxL) ABS
    Weight

    13oz (368g) with 25 ft of cable
