Flow Probe

Flow Probe | Features & Benefits | Global Water

Price$1,367.00 (US Only)

Option

SKUBA1100


In Stock 6

The Flow Probe was designed for hydrological flow measurements in streams, rivers, canals, storm water, wastewater, inflow & infiltration studies, and industrial process waters.

  • Overview

    Applications include: stormwater runoff studies, sewer flow measurements, measuring flows in rivers and streams, and monitoring water velocity in ditches and canals.

    Key Benefits Unique to Flow Probe:


    Turbo-Prop Sensor
    Designed to shed debris while protected inside a 2-inch diameter housing, the probe uses the most accurate positive displacement technique available for velocity sensing. Its rugged housing may be placed directly on the bottom of a pipe or streambed for measuring low flows down to 2 inches in depth. The Turbo-Prop is easily removed for cleaning or replacement.


    Telescoping Handles
    Three telescoping range options are available from 3 ft to 14 ft (see specification sheet for details) for highly-accurate, easy flow monitoring. Its lightweight handle is constructed of anodized aluminum and designed with a mylar-coated staff gauge for instant water depth measurements and accurate propeller positioning.

    exo anti-fouling antifouling


    Water Velocity Computer
    Easily view velocity readings on the LCD screen. Store up to 30 sets of data points and view them on the computer screen at your leisure. Its water-resistant housing incorporates a unique four-button operation for changing functions and resetting the display in the field.


    True Velocity Averaging
    Collect highly-accurate flow measurements at a rate of one reading per second, while viewing the continuous average water velocity on the display. Busy in the field? No problem—easily save these readings and view them at a later time.


    Rotate and Reach
    Rotate the flow probe's Turbo-Prop to + 90 degrees from its standard position—allowing velocity measurements in hard-to-measure areas such as vertical pipes on water tanks or swimming pool drainage systems.

  • Specifications
    Flow Probe Specifications
    Range 0.3 - 19.9 FPS (0.1 - 6.1 MPS)
    Accuracy

    0.1 FPS

    Averaging True digital running average. Updated once per second.
    Display

    LCD, Glare, and UV Protected

    Control 4 button

    Datalogger

    30 sets, MIN, MAX, and AVG

    Features

    Timer, Low battery warning

    Sensor Type Protected Turbo-Prop propeller with magnetic pickup.
    Weight

    Instrument: 2 lbs (0.9 kg) (FP111); 3 lbs (1.4 kg) (FP211); 2.8 lbs (1.3 kg) (FP311)

    Shipping: 13 lbs (5.9 kg) (FP111); 23 lbs (10.4 kg) (FP211); 19 lbs (8.6 kg) (FP311)

    Expandable Length 3.7 to 6 ft (1.1 to 1.8 m) (FP111); 5.5 to 14 ft (1.7 to 4.3 m) (FP211); 2.5 to 5.5 ft (0.76 to 1.7 m) (FP311)
    Materials

    Probe: PVC and anodized aluminum with stainless steel water-bearing

    Computer: ABS/Polycarbonate housing with polyester overlay

    Power

    Internal Lithium Battery, Approx 5 years life with typical use, Non-Replaceable

    Auto Shutoff After 5 minutes of inactivity
    Operating Temperature -4 °F to 158 °F (-20 °C to 70 °C)
    Storage Temperature -22 °F to 176 °F (-30 °C to 80 °C)
    Carrying Case The Flow Probe is shipped in a padded carrying case.
    Certificates CE
  • Accessories

    Flow Probe Propeller Kit

    Turbo-prop replacement kit for Flow Probes FP111, FP211, FP311 FP111-S, FP211-S, and FP411.

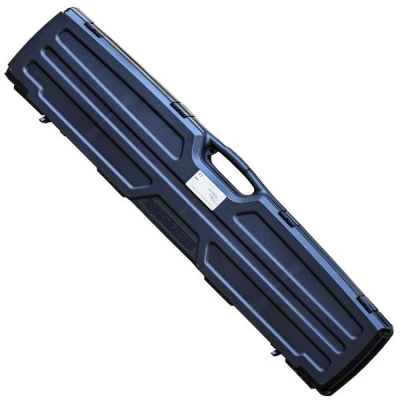

    FP211 Flow Probe Case-Long

    Long Case for FP211 Flow Probe

    FP111 Flow Probe Case, Short

    Short case for FP111 Flow Probe

    FP411 Pistol Case

    Pistol case for Flow Probe FP411

    FP311 Flow Probe Case

    Case for FP311 Flow Probe

    Flow Probe Computer

    Flow Probe Computer
