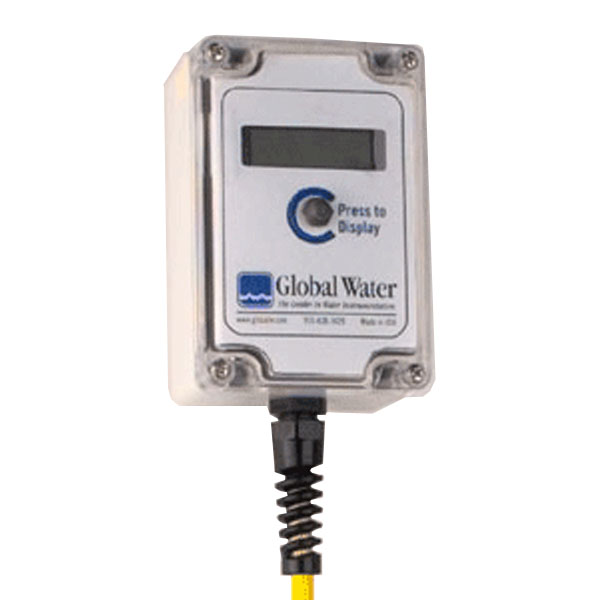

EZ100 Portable Sensor Display

Global Water's EZ Display features a large LCD readout that can be configured to display 4-20mA electronic sensor output values in any engineering units. The portable display is housed in a rugged, weatherproof enclosure that can be either hand held or wall mounted.

• Overview

  FEATURES

  • Seamless interface with 4-20mA electronic sensors
  • Large LCD readout can display sensor output in any engineering units
  • Can be used for both portable and permanent installations
  • Rugged, weather resistant enclosure

  The Global EZ Display comes with two installation options:

  • Battery powered for portable hand-held or stationary applications (when no power is available). In this mode, the display stays on for as long as the display button is pushed.
  • External 18VDC power for continuous monitoring applications. In this mode, the display is on permanently and the 4-20 mA signal can be used to interface with process control systems or dataloggers.

• Specifications

  EZ100 Sensor Display
  Output Range	+1900 Engineering Units
  Input Range	4-20 mA
  Accuracy	+0.05% of full scale
  Operating Voltage	10-36 VDC
  Warm Up Time	1 minute
  Operating Temperature	0° to +60°C
  Size of Enclosure	4 ¾" L x3 1/8" W x2 1/8" D
  Weight	0.5 lb
