BTEX/GRO Analysis System

PriceRequest Pricing


OI Analytical’s BTEX/GRO Analysis System is the total package for analyzing Benzene, Toluene, Ethylbenzene, and Xylenes (BTEX), as well as gasoline range aromatics, and aliphatics in water, soil, and solids based on USEPA methods.

  • Overview

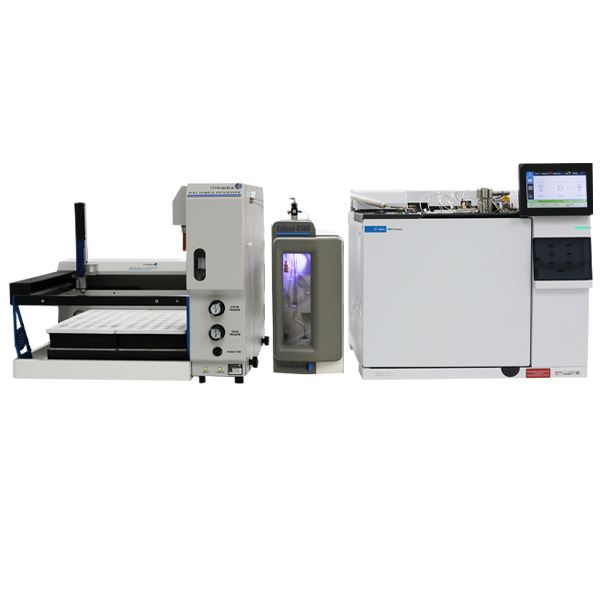

    Our BTEX/GRO Analysis System offers preconfigured systems to simplify and customize instrumentation to provide complete GC-based solutions. A powerful lineup of instruments working together ensures reliable analyses of even the most challenging analytical problem. The BTEX Analysis System product lineup includes Agilent GC, OI Analytical Model 4760 Purge-and-Trap Sample Concentrator, Model 4450 Tandem PID/FID, column and autosampler.

    Principal applications for the System include Massachusetts Volatile Petroleum Hydrocarbon (VPH) method; benzene, toluene, ethylbenzene, xylenes, and other aromatics (BTEX); USEPA Methods 602, 8015, and 8020; GRO; leaking underground storage tank monitoring; fuel spills in soils; combined total leachate program; fuels in water (wastewater); ISO 15009 and 15680; and standard methods 6200C.

    BTEX Analysis System Features:

    • Standard system package includes all necessary hardware for analysis: Agilent GC, OI Analytical Model 4760 Purge-and-Trap Sample Concentrator, Model 4450 Tandem PID/FID, column and autosampler
    • Sample Concentrator provides built-in Cyclone Water Management, rapid trap heating and cooling, Silcosteel sample pathway, unique protective sparge filter design, and optional Infra-Sparge Sample Heater for improving sample recoveries
    • Uses the Tandem PID/FID for excellent sensitivity and linearity
    • PID hidden-window design prevents lamp fouling
    • Third detector capability offers additional analyses
    • Choice of capillary columns
    • Choice of autosamplers available for automated analysis
    • Optional automated pH measurement
    • Includes installation and startup using appropriate standards or methods in systems delivered in the U.S.

  • Specifications
    General Specifications
    Standard System VPH and System BTEX Hardware
    • Eclipse Purge-and-Trap Sample Concentrator
    • Model 4450 Tandem PID/FID detector system
    • Agilent GC
    • OI Analytical low-dead-volume injector or Agilent split/splitless injector
    • Method-appropriate GC capillary column


    Performance Specifications
    Minimum Detectable Mass
    PID <40 pg benzene
    FID 5 pg carbon/second propane
    Dynamic Range
    PID >106
    FID ±10% over a 106 range
    Communications Interface  Ethernet/LAN connection to the sample concentrator and GC
    Detector Output  1V full-scale analog voltage



    Power Requirements

    110 VAC (±10%), 60 Hz
    220 VAC (±10%), 50 Hz

    Benchspace Requirements 109.2 linear cm (43 inches) for a standard system
    Gas Requirements Ultrahigh purity H2 , and He (99.999% purity or better)
