4100 Water and Soil Sample Processor

PriceRequest Pricing


Improve sample processing reliability and analytical performance with the Model 4100 Water/Soil Sample Processor. This automated instrument is efficiently built to process up to 100 drinking water, wastewater, or soil samples.

  • Overview

    Say Goodbye to Handling and Processing Samples for Purge and Trap Analysis!

    The 4100 Sample Processor is designed to operate with (single or dual) Eclipse 4760 purge-and-trap sample concentrators. You can trust the VOA Constrictor™ vial gripper technology to handle samples carefully, while high-speed injection valves improve the precision of standard addition, reduces the volume of standards used, complies with industry standards, and decreases laboratory operating costs.

    Say Goodbye to Dropped Vials

    A pneumatically actuated vial gripper effectively handles vials with labels and eliminates dropped vials. Highspeed injection valves improve the precision of standard addition, significantly reduce the volume of standards used, and decrease laboratory operating costs for expensive standards.

    Model 4100 Features:

    • Holds 100 samples in two 50-position vial racks
    • Operates with one or two Eclipse 4760 purge-and-trap instruments
    • Vial cooling option keeps vials at 10 °C or less in accordance with USEPA Method 524.3
    • VOA Constrictor™ vial gripper has a built-in vial sensor
    • Standard Addition Module has two 3-mL reservoirs, expendable to four 3-mL reservoirs
    • High-speed injection valves in Standard Addition Module inject programmed volume with no excess or waste
    • VOA View Windows®-based software offers an intuitive user interface with a real-time view of sampling progress

    VOA Software

    VOA View software is a Windows®-based GUI that enables users to program methods, sequences, and internal standard addition. The VOA View run screen visually depicts water and soil samples, the progress of vials that have been processed, and provides details of the method being run.

    Vial Cooling Option

    A vial cooling option is available to maintain sample vials at 10 °C or less before analysis for compliance with USEPA Method 524.3. Two 50-position insulated vial racks fit into a cooling base with quick disconnects for easy tubing connection to a recirculating chiller.

    Water / Soil Sampling Station

    Vials containing water are lifted up to engage a sample probe, aspirate, and fill a loop with the sample for transfer to the P&T instrument. Vials containing soil samples are lifted to engage a probe that injects a programmed volume of clean or spiked water, heats and stirs the sample to purge VOCs from the matrix, and deliver them to the trap in the P&T instrument.

    Automated Standard Addition

    Integrated into the tower of the 4100 are two 3-mL reservoirs and electronically controlled high-speed injection valves that automate the addition of internal standards or surrogate matrix spike standards. An option allows the expansion of standard reservoirs and injection valves from 2 to 4 separate channels to support operation with tandem purge-and-trap instruments.

    Available Application Notes:

    Want to Chat with Our Experts?

    Book an appointment with our team! We will match you with our top experts in your geographic region and schedule a time to discuss your work via phone, video, or email. Your choice! Talk to one of the experts to see if the products you're considering are right for you or if the project you're starting has what you need.

    Talk to an Xylem Lab Expert!

  • Specifications
    General Specifications
    Purge-and-Trap Compatibility Operates with one or two Eclipse 4660 instruments
    Sample Capacity 100 standard USEPA 40-mL VOA Vials
    ​Sample Loop​ 5mL standard loop, 10 or 25 mL loops optional
    Automated Standard Addition (2) 3mL reservoirs standard, expansion to (4) optional
    Sampling Mode – Water Aspiration and transfer to purge-and-trap instrument sparge vessel
    Sampling Mode – Soil In-vial needle sparging and transfer to trap of purgeand-trap instrument
    Sample Transfer Pathway –
    Water Samples
    Silcosteel® 316L stainless steel and PEEK®
    Sample Transfer Pathway –
    Soil Samples
    Silcosteel® 316L stainless steel and PEEK®
    Blank Water Transfer PFA–Teflon®
    Vial Trays (2) 50-position VOA vial trays
    Vial Gripper Mechanism Pneumatically actuated cylindrical gripper with vial sensing
    Vial Cooling Option Cooling base for two 50-position vial trays with quickdisconnect fittings for recirculating chiller
    X/Y-Axis Mechanism Digitally controlled linear drive rails
    Z-Axis Mechanism Pneumatically actuated
    Operating Software VOA View Windows®-based GUI
    Operating System Windows® 7or Windows® 8 and 8.1
    PC to 4100 Communications USB port for each 4100 instrument connected to PC
    Water Supply Clean, VOC-free water for rinsing sample pathway
    Gas Requirements -
    Sample Transfer
    99.999% (UHP Grade) He or N2
    Gas Requirements - Gripper / Z-axis Actuator Nitrogen
    Power Requirements 110VAC / 60HZ or 230VAC / 50Hz
    Dimensions 27 in. W x 24 in. D x 21.5 in. H
    68.6 cm W x 61 cm D x 54.6 cm H
    Weight 36 Kg (80 lbs) , typical depending on options
    Certifications CE Safety and EMC EN50082-1/EN55011 Group 1 Class A
  • Accessories

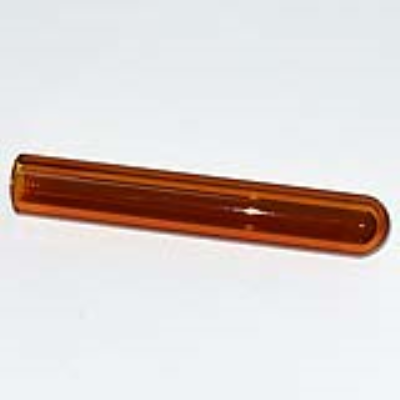

    LV20 3mL Amber Reservoir
