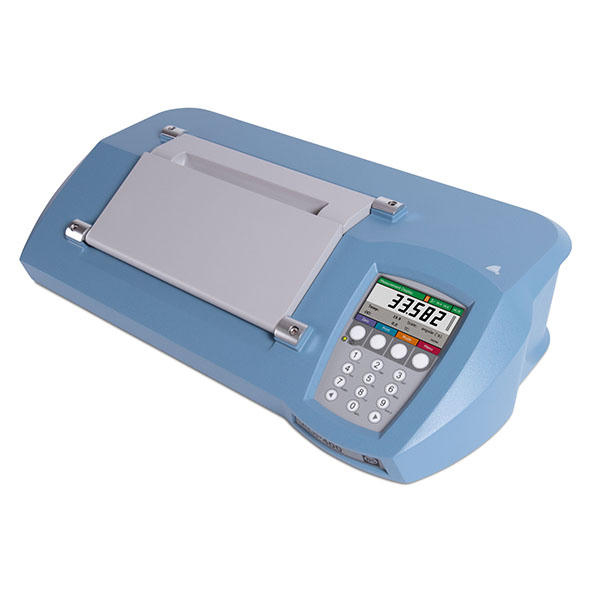

ADP430 Single Wavelength Polarimeter

B+S ADP430 Single Wave Polarimeter Overview

The ADP430 is a fully-featured instrument designed for use in applications where internal temperature control is not required or where the use of automatic temperature compensation or a water bath is preferred, such as the food and beverage industry.

Price$9,950.00 (US Only)

SKU37-30


In Stock 0 - Available for Backorder

The ADP430 is one of two models in the ADP400 Series, the second being the ADP450 which is a Single wavelength polarimeter with XPC temperature control and low maintenance LED light source. Suitable for sugar, food, chemical, and pharmaceutical industries.

  • Overview

    Single Wavelength Polarimeter

    The ADP430 polarimeter from Bellingham + Stanley is available without XPC – Xylem’s patented internal Peltier temperature control system.

    Key Features:

    • It can be used with waterbath
    • Up to 200mm tube length
    • Standard ICUMSA tubes
    • Continuous or single-shot readings
    • Conforms to USP/EP/BP/JP (@589nm)



    Food, Flavors, Fragrance & More!

    The ADP400 Series are general-purpose single-wavelength polarimeters suitable for the sugar, food, chemical, and pharmaceutical industries. Capable of measuring up to 3.0 OD at 589nm over a maximum tube length of 200mm, the ADP450 offers three decimal place precision to an accuracy of ±0.01 °Angular making it ideal for general purpose use in food, flavors, fragrance, pharmaceutical, and chemical industries as well as within academia and research.

    Low Cost of Ownership

    These polarimeters contain proven optics, pioneered by Bellingham + Stanley, featuring “no maintenance” yellow LED and interference filter. This allows for the reading of up to 3.0 OD samples at the commonly used sodium (589nm) wavelength.

    ADP400 polarimeters include angular and sugar scales (ISS) and can be programmed with user scales, industry-standard methods for displaying invert sugar, inversion (A-B), or when applying other factors such as tube length and concentration, Specific Rotation (or concentration when entering specific rotation). This flexibility makes the ADP430 the ideal polarimeter for use within laboratories where compliance with Pharmacopoeia is required.

    RFID Technology

    Calibration and configuration of the ADP430 are password-protected, accessible by keypad entry or for convenience, using a fully configurable RFID tag.  This, together with the audit trail, facilitates operation in environments conforming to FDA regulation 21 CFR Part 11 or GLP.

  • Specifications
    Measurement Specifications
    Scales Angular degrees and International Sugar Scale (°Z)
    Ranges

    -355° to +355° Angular degrees / -225 to +225 °Z

    Resolution 0.01/0.001° Angular degrees / 0.01/0.001 °Z
    Reproducibility

    0.002° Angular degrees / 0.005 °Z

    Accuracy ±0.01° Angular degrees / ±0.03 °Z

    Other Scales/Methods

    User definable scales and methods, specific rotation, inversion, and concentration

    Automatic Temperature Compensation

    None, sugar (ICUMSA), quartz, and user definable

    Reading Time (seconds) 4 – 30 (selectable)
    Working Temperature Range

    5 to 40°C

    Beam Diameter 4mm
    Optical Density Range 0.0 to 3.0 OD
    Interface

    1 x USB (A), 1 x USB (B), 1 x Ethernet (RS232 by USB adaptor)

    Ambient Humidity Range <90% RH
    Order Code 37-50
    Physical Specifications
    Sample Illumination Light Emitting Diode (Life 100,000Hr +) with interference filter
    Wavelength

    589nm

    Temperature Control (XPC Technology) Xylem Peltier Control
    Display

    High resolution color 480 x 272 pixel LED-backlit LCD

    Housing Low Density Expanded Polyurethane Foam (chemical/acid resistant)

    Maximum Tube Length

    10-200mm

    Minimum Tube Bore

    5mm

    ElectricalSpecifications
    24vdc by external power supply:100 – 240V ~, 50-60Hz, <2A
    Printer Specifications
    Printer Formats 24 column / CSV for LIMS, Print to Secure PDF (via by USB)
    Printer Packages & Cables (Optional)

    Serial dot matrix (GLP) printer / PC interface cable and adaptor

    Temperature Control (XPC Technology) Xylem Peltier Control
