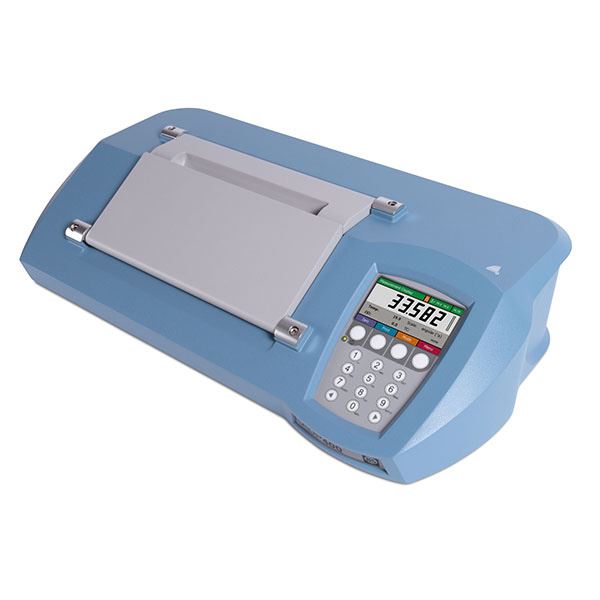

ADP450 Single Wavelength Polarimeter

Bellingham + Stanley utilizes over 100 years of experience to manufacture robust polarimeters for a variety of applications.

• Overview

  Several Options for Instrument Validation

  This single wavelength polarimeter is everything your lab needs! It includes several options for sample tubes and quartz control plates for instrument validation and is packed full of features.

  Bellingham + Stanely offers three series of polarimeters or saccharimeters to choose from including one that has Peltier temperature control.

  The ADP400 Series polarimeters offer measurement to 3 decimal places for extreme precision and come packed full of features normally reserved for high-end instrumentation. This single wavelength polarimeter also comes with XPC temperature control and low maintenance LED light source.

  Suitable for the following applications:

  • Sugar
  • Food
  • Chemical
  • and Pharmaceutical

  Data Protection & RFID Technology

  Calibration and configuration of the instrument can be protected by a password, keypad entry, or a fully configurable RFID tag. This feature, combined with an audit trail, ensures this instrument can comply with FDA 21 CFR Part 11 compliance, which is extremely important within the food and beverage and pharmaceutical industries.

• Specifications

  Measurement Specifications
  Scales	Angular degrees and International Sugar Scale (°Z)
  Ranges	-355° to +355° Angular degrees / -225 to +225 °Z
  Resolution	0.01/0.001° Angular degrees / 0.01/0.001 °Z
  Reproducibility	0.002° Angular degrees / 0.005 °Z
  Accuracy	±0.01° Angular degrees / ±0.03 °Z
  Other Scales/Methods	User definable scales and methods, specific rotation, inversion, and concentration
  Automatic Temperature Compensation	None, sugar (ICUMSA), quartz, and user definable
  Reading Time (seconds)	4 – 30 (selectable)
  Working Temperature Range	5 to 40°C
  Beam Diameter	4mm
  Optical Density Range	0.0 to 3.0 OD
  Interface	1 x USB (A), 1 x USB (B), 1 x Ethernet (RS232 by USB adaptor)
  Ambient Humidity Range	<90% RH
  Order Code	37-50

  Physical Specifications
  Sample Illumination	Light Emitting Diode (Life 100,000Hr +) with interference filter
  Wavelength	589nm
  Temperature Control	(XPC Technology) Xylem Peltier Control
  Display	High resolution color 480 x 272 pixel LED-backlit LCD
  Housing	Low Density Expanded Polyurethane Foam (chemical/acid resistant)
  Maximum Tube Length	10-200mm
  Minimum Tube Bore	5mm

  ElectricalSpecifications
  	24vdc by external power supply:100 – 240V ~, 50-60Hz, <2A

  Printer Specifications
  Printer Formats	24 column / CSV for LIMS, Print to Secure PDF (via by USB)
  Printer Packages & Cables (Optional)	Serial dot matrix (GLP) printer / PC interface cable and adaptor
  Temperature Control	(XPC Technology) Xylem Peltier Control

• Video

  B+S ADP430 Single Wave Polarimeter Overview

  The ADP430 is a fully-featured instrument designed for use in applications where internal temperature control is not required or where the use of automatic temperature compensation or a water bath is preferred, such as the food and beverage industry.
