2920 OPC Data Manager

PriceRequest Pricing

SKU572920

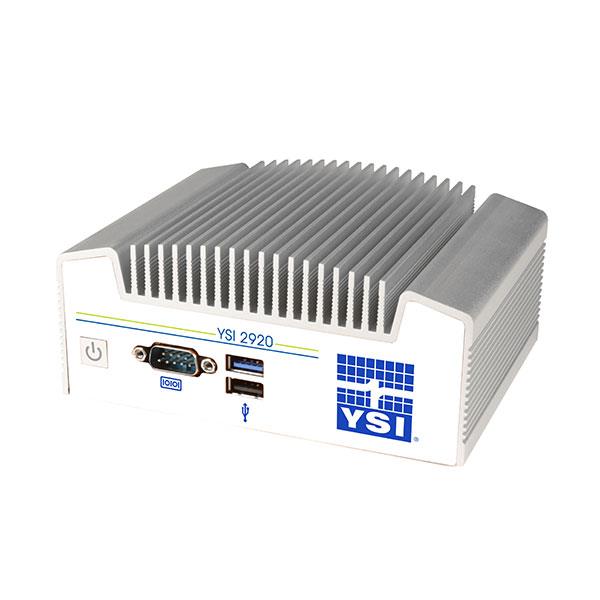

Add-on module that provides OPC data management for off-line YSI 2900 Series Biochemistry Analyzers or YSI 2900M Online Monitoring & Control Systems.

  • Overview

    YSI’s OPC data management technology seamlessly acquires data from both off-line and on-line YSI analyzers and exports your data into any OPC-enabled SCADA, bioprocess management system or data historian. Our OPC Data Manager and OPC-enabled online monitoring systems feature an internal web server, which allows easy remote access using a web browser. Whether you are networking a single bioreactor system, an entire PD lab or multiple labs or suites, YSI’s OPC data management options provide simple connectivity and data management solutions for your process systems.

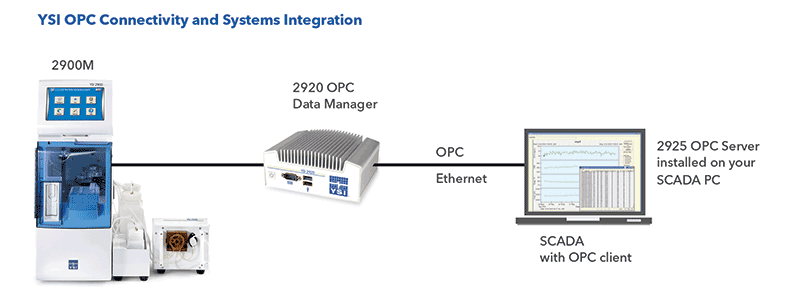

    YSI 2920 OPC Connectivity System Integration.gif

    • Add-on module for off-line YSI 2900 Series Biochemistry Analyzers or YSI 2900M Online Monitoring & Control Systems
    • Internal web server
    • Remote access using IP address and web browser
    • Performs extensive error tracking and management
    • Sleek, modular design
    • Requires YSI 2925 OPC Server Software

  • Specifications
    Compliance

    OPC Data Manager: CE, RoHS, FCC
    Power Supply: UL, IEC, CE, RoHS

    Equipment used with 2900M, 2900D, 2950
    Ethernet Yes
    OPC UA, DA Requires Matrikon UA Tunneller
    Operating Temperature 18–29°C
    Power 100–240 VAC, 60 W
    Security / Password Protection / UserID Yes
    Storage Temperature -20–60°C
    Warranty

    1 year
