MultiLab 4010-1

YSI MultiLab Line of Instruments for pH, ORP, conductivity, BOD and Ion Activity Measurement

The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments ideal for the laboratory.

Price$1,095.00 (US Only)

SKU1FD350Y


In Stock 2

Laboratory instrument for DO/BOD, pH, ORP, and conductivity measurement. EPA approved for drinking water and wastewater compliance reporting.

Connect digital IDS sensors to the MultiLab 4010-1 for the measurement of DO/BOD, pH, ORP, and conductivity.

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

  • Overview

    The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments providing easy to use and calibrate menu-driven operation ideal for the laboratory. All MultiLab instruments can accurately measure pH, ORP, conductivity, and DO/BOD. ISEs can also be connected to two and three channel instruments.

    Please visit the MultiLab Kits page for fully assembled systems.

    Features of the MultiLab line:

    • Input for pH, ORP, DO/BOD, or conductivity sensors
    • ISEs with BNC connection can be connected to the MultiLab 4010-2 and 4010-3 with an adapter (108132Y) that converts one digital input to an analog BNC input (i.e. only one ISE can be connected)
    • Data storage - 500 data sets in manual mode and 5,000 (MultiLab 4010-1) or 10,000 (MultiLab 4010-2 and 4010-3) data sets in automatic logging mode
    • Large, easy to read graphic display
    • Color screen and antibacterial keypad on MultiLab 4010-2 and 4010-3 instruments
    • Intelligent, digital sensors - plug and play connectivity
    • GLP traceability (sensors store serial # and calibration data)
    • USB connectivity to manage data; USB cable included
    • PC software included for easy data transfer
    • Durable electrode stand included
    • 3-year warranty

    Intelligent Digital Sensors (IDS)

    The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The sensors can be moved from instrument to instrument and maintain their calibration data and transmit this information to the new instrument.

    • Plug and play connectivity with each instrument
    • IDS senors store their own unique ID with serial number and calibration data
    • Digital sensor recognition, processing and data transfer
    • Includes self-stirring BOD, pH, ORP and conductivity sensors
    • BOD probe uses optical dissolved oxygen technology and includes a guarded sensor tip

    EPA Approved Methodology

    The MultiLab 4010-1 can be used with the IDS OBOD probe for wastewater compliance reporting of BOD and CBOD. Available IDS pH and conductivity sensors can also be used for drinking water and wastewater compliance reporting.

    Continuous Measurement Control (CMC)

    The CMC function displays continual monitoring of the sensor's measuring range. The range is represented with a bar and calibration points are shown as vertical lines at the cal point. A moving cursor shows the current measured value and indicates if the measurement is within the calibrated range.

    Quality Sensor Control (QSC)

    The QSC is a system to monitor the condition of the pH electrode. An initial calibration is performed and, afterwards, the sensor status is monitored and graphically displayed over time.


    You may be interested in downloading the YSI pH Handbook - a practical guide to pH measurements in the lab and field. It's full of tips and recommendations for ensuring accurate, repeatable pH measurements.

    pH Handbook on Homepage Download

  • Specifications
    Autostable Yes
    Benchtop Yes
    Buffer Recognition Yes
    Certifications CE, cETLus
    Connectivity / Communications USB-A, Mini USB
    Data Management 500 data sets in manual mode and 5,000 data sets in automatic mode
    Desktop Software Compatible BOD Analyst Pro desktop software to automatically calculate BOD values
    Digital / Digital Sensors Yes
    Display Large, easy to read graphic display
    Equipment used with Multilab IDS probes and accessories
    GLP Compliance Yes
    Graphic Display easy to read graphic display, Large
    Logging Capabilities Yes
    Measurement Method / Channels 1 Measurement Channel
    Measurement Range pH - 0.000 to 14.000 (+/-0.004), Conductivity - 10 µS/cm to 2,000 mS/cm +0.5% of value (301710Y), .01µS/cm to 200 µS/cm +0.5% of value (301720Y), TDS - 0 to 100ºC (32 to 212ºF), Dissolved Oxygen - 0 to 50 mgL; 0 to 500% air saturation, Salinity - 0.0 to 70.0 ppt +0.5% of value
    Operating pH Range 0.000 to 14.000 (+/-0.004)
    Operating Temperature 32 to 176º degrees F
    Parameters Measured Temperature, Conductivity, Resistivity, Salinity, TDS (Total Dissolved Solids), pH/mV, Oxidation Reduction Potential (ORP), Partial Pressure, Dissolved Oxygen (% and mg/L* (BOD)
    Power Universal power supply
    Sampling Yes
    Smart Sensors / Ports Intelligent Digital Sensors (IDS)
    User Calibratable Yes
    User Replaceable Yes
    Warranty 3 years
    Waterproof Yes
  • Accessories

    pH Buffer

    pH Buffer

    Conductivity Calibrator Solution

    Conductivity Calibrator Solution

    MultiLab IDS ProOBOD

    Optical Self stirring BOD probe with temperature sensor, IDS

    MultiLab IDS 4110 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 1.5 meter cable

    MultiLab IDS 4110-3 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 3 meter cable

    MultiLab IDS 4320 Conductivity and Temperature Sensor

    Conductivity and temperature, Stainless Steel body, 2-electrodes, digital probe, 1.5 meter cable

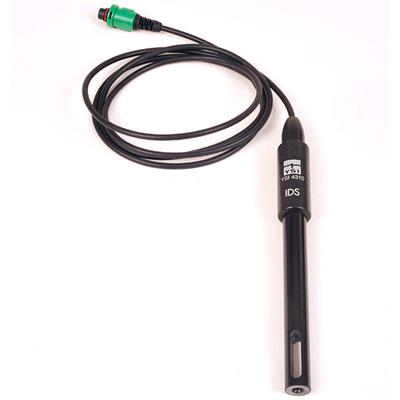

    MultiLab IDS 4310-3 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 3 meter cable

    MultiLab IDS 4310 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 1.5 meter cable

  • Video

    YSI MultiLab Laboratory Meter | From the Box to the Lab

    The MultiLab instrument measures pH, ORP, conductivity, BOD and ion activity measurement. Connect digital Intelligent Digital Sensors (IDS) to the MultiLab 4010-3 for the measurement of pH, ORP, conductivity, and DO/BOD in any combination. Ion selective electrodes (ISE) can also be connected to the instrument. Find out all the other great features of the YSI MultiLab instrument in this video including the large, graphic display, plug-and-play connectivity, GLP traceability, USB connectivity to manage data, electrode stand, 3-year warranty and much more.

    YSI MultiLab Line of Instruments for pH, ORP, conductivity, BOD and Ion Activity Measurement

    The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments ideal for the laboratory.
