VOC Analysis System

PriceRequest Pricing


Save hours of searching for GC-based solutions with OI Analytical’s preconfigured systems for analysis of Volatile Organic Compounds (VOCs) in water, soil, and solids based on USEPA methods. Use our expertise to customize an instrument that will meet your laboratory needs.

  • Overview

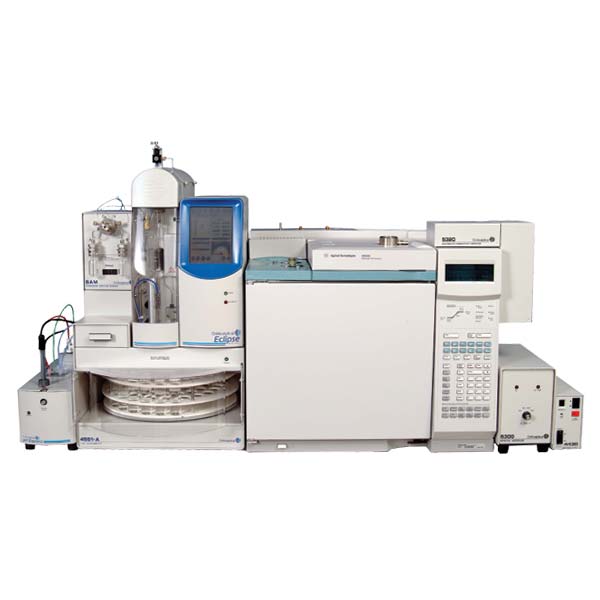

    The System VOC is the complete G.C. package, incorporating our new 4760 Eclipse Purge-and-Trap Sample Concentrator, Low-Dead-Volume Injector, Agilent® Technologies 6890 GC, and your choice of our optional autosamplers. The System VOC is also configured with a tandem PID/ELCD for analyzing halogenated and aromatic species found in USEPA Methods 601/602 and 502.2

    Principal applications for the System VOC include USEPA Methods 502.2, 503.1, 601, 602, 8010, and 8021; ISO 15009 and 15680; standard methods 6200C; halocarbons; aromatics and olefins; solvents; and hazardous wastes.

    VOC Analysis System Features:

    • Preconfigured packages include all necessary hardware for analysis: Agilent GC, O.I. Analytical Model 4760 Purge-and-Trap Sample Concentrator, Model 5350 Tandem PID/ELCD, columns, and standards
    • Sample Concentrator provides built-in Cyclone Water Management, rapid trap heating and cooling, Silcosteel sample pathway, unique protective sparge filter design, and optional Infra-Sparge Sample Heater for improving sample recoveries.
    • Tandem PID/ELCD uses only one detector port, allowing the mounting of up to four detectors.
    • ELCD features rapid release reactor design, quick-change disposable resin cartridges, and digital control
    • PID exhibits extremely low baseline noise
    • M.S. systems include current Agilent GC/MS hardware with a 6890 Plus G.C.
    • Choice of capillary columns
    • Choice of autosamplers to fully automate the analysis process
    • Optional automated pH measurement
    • Includes installation and startup using appropriate standards or methods for systems delivered in the U.S.

  • Specifications
    General Specifications
    Standard System VOC Hardware
    • Eclipse Purge-and-Trap Sample Concentrator
    • Model 5350 Tandem PID/ELCD System
    • Agilent GC
    • OI Analytical low-dead-volume injector


    Performance Specifications
    Trap >1,000 °C/minute heating rate to 300 °C; 450 °C maximum
    >240 °C/minute cooling rate (200 °C to 30 °C in <50 sec)
    Water Management
    • ​Water removal at level equivalent to condensation at 4.8 °C
    • Eliminates all but ~0.25 µL (0.063 µL/minute) of trapped desorb water (>96% water removed)
    • Operates at ambient temperature
    Minimum Detectable Mass Halogen: 1 pg lindane
    Maximum Detectable Mass Halogen: 5 µg lindane
    Dynamic Range Greater than 106
    Sensitivity <40 picograms benzene
    Communication Interface Ethernet/LAN connection to the sample concentrator
    Detector Output 1V full-scale analog voltage


    Power Requirements

    115 VAC (±10%), 60 Hz
    230 VAC (±10%), 50 Hz

    Benchspace Requirements 105.4 linear cm (41.5 inches) for total basic system
    Gas Requirements Ultrahigh purity H2 , and He (99.999% purity or better)
