TruLine Copper Electrode Kit

Price$865.00 (US Only)

SKU400445


In Stock 0 - Available for Backorder

Add to Cart Add to wishlist

Add TruLine Copper Electrode Kit to wishlist

Request a Quote

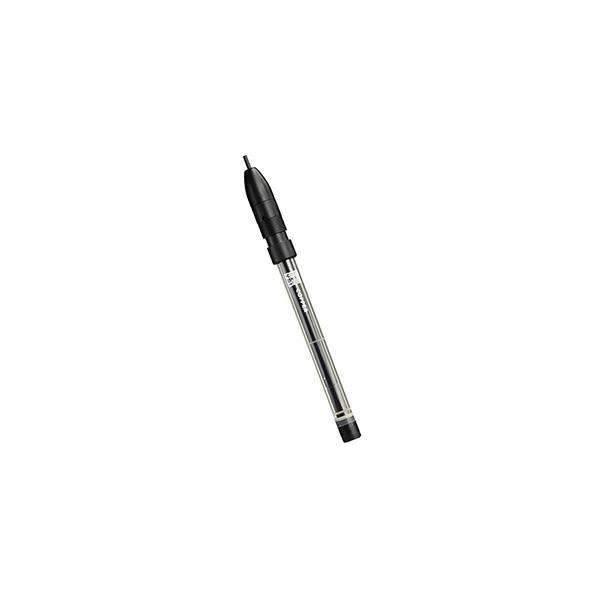

The TruLine Copper ISE features BNC connection and can be used with the YSI TruLab 1320. It can also be used with the YSI MultiLab 4010-2 or 4010-3 if a BNC adapter is installed.

The TruLine Copper laboratory electrode kit includes a solid state combination ISE with refillable reference, bottle of fill solution (30 mL), bottle of ISA (30 mL), and small bottle (30 mL) of high (1000 mg/L) standard.

Copper ISE range: 0.06 to 6400 mg/L

  • Overview

    There are 15 electrodes in the TruLine ISE series, with each electrode measuring the effective ion concentration of a different ionic species. This provides our customer with a wide range of ISEs to choose from.

    ISE parameters include: Ammonia, Ammonium, Bromide, Cadmium, Calcium, Chloride, Copper, Cyanide, Fluoride, Iodide, Lead, Nitrate, Potassium, Silver/Sulfide, and Sodium. Some ISEs are EPA approved for wastewater and/or drinking water compliance reporting.

    Each TruLine ISE features an integrated reference.  This eliminates the need for a separate reference half-cell when measuring ion concentration and is more convenient.  Each ISE can be refilled with reference/electrode filling solution, extending the life of each ISE.  The electrodes also feature a double-junction reference for optimum performance in the lab.

    ISE TruLine Electrode features include:

    • Wide selection of 15 electrodes for 16 different parameters
    • 4 sensor technologies - gas sensing, polymer/PVC membrane, solid state, and glass sensor
    • Integrated reference (i.e. combination/full-cell). Separate reference not needed
    • Double-junction* and refillable to ensure long electrode life
    • BNC connection, connects to any instrument with BNC connectors including the YSI TruLab 1320 or the YSI MultiLab 4010-2 and 4010-3 when used with a BNC adapter
    • 3 foot cable
    • Made in the U.S.A
    • Reference/electrode fill solution, ionic strength adjustor (ISA), and small bottle of standard** included with each ISE
    • Complete suite of fill solutions, ISAs, and standards available to support customers after purchase
    • 12 month warranty for solid state, glass sensor, and gas-sensing ISEs
    • 9 month warranty for ISEs with polymer/PVC membrane

    *The ammonia ISE is not a true double-junction electrode, but it does contain a single-junction pH electrode inside an outer membrane that only ammonia can permeate.

    **Cyanide and sulfide standards not included with respective kits.

  • Specifications
    Benchtop Yes
    Buffer Recognition Yes
    Connector BNC
    Equipment used with TruLab 1320, MultiLab 4010-2 or 4010-3 with BNC adapter (108132Y)
    GLP Compliance Yes
    Operating Temperature -5° to 100°C, 23°F to 212°F
    Parameters Measured Copper
    Sampling Yes
    User Calibratable Yes
    User Replaceable Yes
    Warranty 1 year
