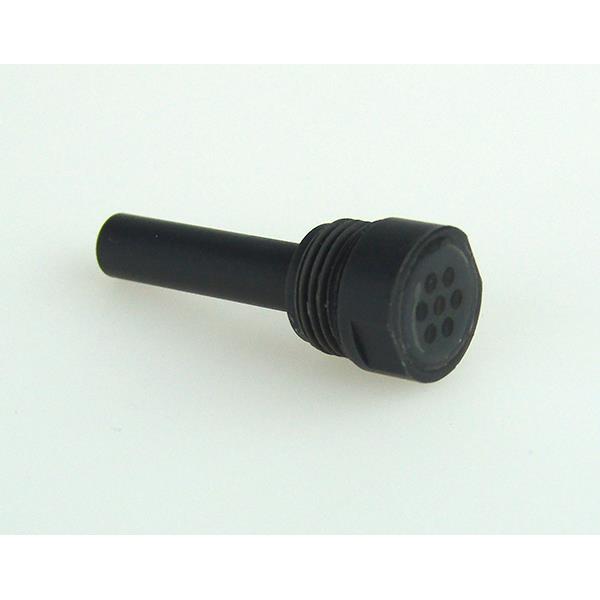

TruLine Calcium Replacement Sensor Module

Price$317.08 (US Only)


In Stock 0 - Available for Backorder

TruLine Calcium Electrode Replacement Sensor Module, 1 each.

Dated material. Item is heat packed in the winter months.

Each TruLine ISE features an integrated reference.  This eliminates the need for a separate reference half-cell when measuring ion concentration and is more convenient.  Each ISE can also be refilled with reference/electrode filling solution, extending the life of each ISE.  The electrodes also feature a double-junction reference for optimum performance in the lab.

  • Overview

    There are 15 electrodes in the TruLine ISE series, with each electrode measuring the effective ion concentration of a different ionic species. This provides our customer with a wide range of ISEs to choose from.

    ISE parameters include: Ammonia, Ammonium, Bromide, Cadmium, Calcium, Chloride, Copper, Cyanide, Fluoride, Iodide, Lead, Nitrate, Potassium, Silver/Sulfide, and Sodium.

    ISE TruLine Electrode features include:

    • Wide selection of 15 electrodes for 16 different parameters

    • 4 sensor technologies - gas sensing, polymer/PVC membrane, solid state, and glass sensor

    • Integrated reference (i.e. combination/full-cell). Separate reference not needed

    • Double-junction* and refillable to ensure long electrode life

    • BNC connection, connects to any instrument with BNC connectors including the YSI TruLab 1320 or the YSI MultiLab 4010-2 and 4010-3 when used with a BNC adapter

    • 3 foot cable

    • Made in the U.S.A

    • Reference/electrode fill solution, ionic strength adjustor (ISA), and small bottle of standard** included with each ISE

    • Complete suite of fill solutions, ISAs, and standards available to support customers after purchase

    • 12 month warranty for solid state, glass sensor, and gas-sensing ISEs

    • 9 month warranty for ISEs with polymer/PVC membrane


    *The ammonia ISE is not a true double-junction electrode, but it does contain a single-junction pH electrode inside an outer membrane that only ammonia can permeate.

    **Cyanide and sulfide standards not included with respective kits.

  • Specifications
    Benchtop Yes
    Buffer Recognition Yes
    Connector BNC
    GLP Compliance Yes
    Operating Temperature -5° to 100°C, 23°F to 212°F
    Parameters Measured Calcium
    Sampling Yes
    User Calibratable Yes
    User Replaceable Yes
    Warranty 1 year
