Pro30 Conductivity, Salinity Instrument

Pro30 Conductivity, Salinity Instrument

YSI Pro30 conductivity meter. Measure conductivity, specific conductance, salinity, TDS (total dissolved solids) and temperature. Great for field work.

Price$610.00 (US Only)

SKU6050030


In Stock 3

The Pro30 provides everything you need in a handheld meter that measures salinity, conductivity, specific conductance, total dissolved solids, and temperature. Rugged, simple and reliable.

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

Take advantage of the Complete Solution promo going on now through December 31, 2019. Order a Pro30 system (handheld and probe/cable assembly) and receive a case, shoulder strap, and case of conductivity standard for FREE (US only). Use the code Pro30complete to receive your discount. Please see the ordering directions below for more detail.

  • Order Meter
    SKU Description Price Quantity
    6050030 Pro30 $610.00
  • Order Cables
    SKU Description Price Quantity
    60530-1 Pro Series Conductivity Sensor with 1 M Cable $338.00
    60530-4 Pro Series Conductivity Sensor with 4 M Cable $348.00
    60530-10 Pro Series Conductivity Sensor with 10 M Cable $410.00
    60530-20 Pro Series Conductivity Sensor with 20 M Cable $461.00
    60530-30 Pro Series Conductivity Sensor with 30 M Cable $574.00
  • Order Standards and Solutions
    SKU Description Price Quantity
    065270 3161: Conductivity Calibrator 1,000 umhos/cm (quart) Fresh Water $75.00
    065272 3163: Conductivity Calibrator 10,000 umhos/cm (quart) Brackish Water $75.00
    065274 3165: Conductivity Calibrator 100,000 umhos/cm (quart) Supersaturated Sea Water $75.00
    060907 3167: Conductivity Calibrator 1,000 umhos/cm (8 ea, pint) Fresh Water $128.00
    060906 3160: Conductivity Calibrator 1413 umhos/CM, +/- 1% (.01 MOLAR KCL) (8 ea, pint) $128.00
    060911 3168: Conductivity Calibrator 10,000 umhos/cm (8 ea, pint) Brackish Water Conductivity Calibrator, 10,000 umhos/cm (8 ea, pint) $128.00
    060660 3169: Conductivity Calibrator 50,000 umhos/cm (8 ea, pint) Sea Water $128.00
  • Order Accessories
    SKU Description Price Quantity
    605978 5978 - 4.9 oz weight $28.00

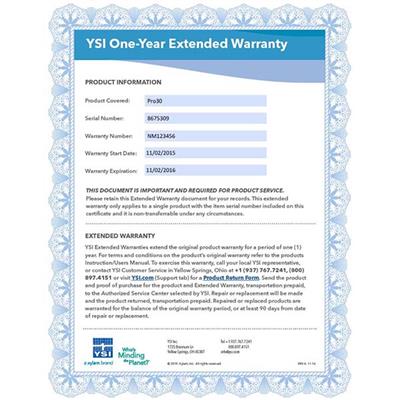

    EWPRO30 Extended Warranty PRO30 $110.00
    603075 3075 - Pro Series Soft Sided Carrying Case $128.00
    603069 3069 - Belt clip (screws into back of meter) $28.70
    603070 3070 - Shoulder strap $32.00
    603074 3074 - Pro Series Hard Sided Carrying Case $299.00
    603162 6262 - Pro Series Soft Sided Small Carrying Case $92.25
    063517 614 - Ultra clamp (screws into back of meter) $25.00
Add to Cart
  • Overview

    Rugged and reliable, the YSI Pro30 provides everything you need in a handheld conductivity meter.

    User-replaceable cables and convenient Quick Cal feature that walks you through the calibration routine makes it extremely user friendly. Mil-spec (military spec) quarter-turn locking connectors, IP-67 waterproof rating with a rubber over molded case, and 1-meter drop tests ensures durability and the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro30 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

    The super-stable 4-electrode conductivity cell is built directly into the cable bulkhead providing years of accurate data. The conductivity cells are designed for rugged field performance and are easily cleaned with a small conductivity brush. The electrodes require minimal maintenance.

    Additional features include:

    • Quick Cal routine allows calibrations with the push of a button; remembers previous calibration values and walks you through the routine
    • Stores 50 data sets
    • Graphic, backlit display and glow in the dark keypad
    • Available with 1, 4, 10, 20, or 30-meter cables (4-meter and longer cables include cable management kit)
    • View display with polarized sunglasses on
    • Multiple languages include English, Spanish, French and German
    • User replaceable cables utilizing a robust MS connector that locks in place with a quarter turn rotation
    • Conductivity cell is part of the cable bulkhead and is a proven, field-worthy electrode
    • 3-year instrument; 2-year cable warranty

    YSI now offers an Extended Warranty for the Pro30 (new instruments only).

    When ordering the Pro30 you must order the instrument and cable separately, allowing you to choose the system that best fits your application. The conductivity sensor is part of the cable you order and included in the cable purchase.

    How to Order a Pro30 Complete Solution Package:

    1. Add the following to your cart using the order tabs above:
      • Pro30 meter
      • Pro Series conductivity sensor with cable (any length)
      • Case of conductivity standard (any)
      • Soft-sided case (603075 or 603162)
      • Shoulder strap (603070)
    2. Apply the code Pro30complete to your order before checking out.

  • Specifications
    Certifications RoHS, IP-67, Assembled in USA, CE, 1-meter drop test, WEEE
    Connector MS (military spec) waterproof with bayonet lock
    Digital / Digital Sensors Analog
    Equipment used with ProSeries 30-x cables
    Graphic Display backlit display AND keypad, Graphic display with detailed Help
    Languages German, French, English, Spanish
    Logging Capabilities Single
    Memory 50 data sets
    Multiparameter Yes
    Parameters Measured

    Conductivity, Salinity, Total Dissolved Solids (TDS), Temperature

    Power 2 alkaline C-cells provide 400 continuous hours at ambient temperature without backlight
    Sampling Yes
    Unit of Measure Temperature-°C, Conductivity-mS/cm, Salinity-ppt, Total Dissolved Solids (TDS)-g/L
    User Calibratable Yes
    User Replaceable Yes
    Warranty 3-year instrument; 2-year field cables
    Waterproof IP-67 (even with the battery cover off), floats

    Pro30 Instrument General Specifications

    Specification
    Cable & Probe Assembly Lengths Standard lengths of 1, 4, 10, 20, or 30 meters (3.28, 13.1, 32.8, 65.6 ft.)
    Dimensions 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.25 in x 8.5 in x 2.21 in)
    Conductivity Reference Temp​ Adjustable; range 15°C to 25°C
    TDS Constant Range 0.3-1.0
    Weight 475 grams (1.05 lbs)



    Pro30 System Specifications (Instrument, Cables & Sensors)

    Parameter
    (units)
    Sensor Type Range Accuracy Resolution
    Conductivity*
    (µS, mS)
    Four Electrode Cell 0 to 200 mS/cm (auto-range) 1 m, 4 m cables:
    ±1.0% of the reading or 1.0 μS/cm, whichever is greater​
    10 m, 20 m, 30 m cables:
    ±2.0% of the reading or 1.0 μS/cm, whichever is greater

    0.0001 to 0.1 mS/cm (range dependent)

    Salinity
    (ppt, PSU)
    Calculated from Conductivity and Temperature 0 to 70 ppt ±1% of reading or ±0.1 ppt, whichever is greater 0.01 ppt

    Temperature
    (°C, °F, K)

    Thermistor  -5 to 70°C (23 to 158°F)
    ±0.2°C;
    ±0.3°C cables over 45-meters
    0.1°C
    Total Dissolved Solids (TDS)
    (mg/L, kg/L, g/L)
    Calculated from Conductivity and Temperature 0 to 100 g/L TDS constant range 0.30 to 1.00 (0.65 default) Dependent on temp, conductivity and TDS constant 0.001, 0.01, 0.1g/L

    Specifications indicate typical performance and are subject to change.

  • Accessories

    Weight, Probe/Cable, 4.9 oz

    Weight, Probe/Cable, 4.9 oz

    Extended Warranty Pro30

    One Year Extended Product Warranty for Pro30

    Pro Series Soft Sided Carrying Case

    Carrying Case, Soft Sided

    Cable Management Kit

    Cable Management Kit

    Conductivity Calibrator Solution

    Conductivity Calibrator Solution

    Belt Clip

    Belt Clip

    Shoulder Strap

    Shoulder Strap

    Pro Series Conductivity Field Cable

    Conductivity and temperature cable assembly

    Flow Cell, Extended Length

    Flow Cell, Extended Length

    Tripod Clamp

    Tripod Clamp

    Pro Series Hard Sided Carrying Case

    Carrying Case, Hard Sided

    Ultra Clamp

    Ultra Clamp

  • How to Order

    Step 1: Order Instrument

    SKU Description
    6050030 Pro30 Handheld Instrument

    Step 2: Order Cable(s)

    SKU Description
    60530-1 1 m cable for cond/temp
    60530-4 4 m cable for cond/temp*
    60530-10 10 m cable for cond/temp*
    60530-20 20 m cable for cond/temp*
    60530-30 30 m cable for cond/temp*

    *Includes Cable Management Kit

    Step 3: Order Optional Accessories

    SKU Description
    603074 Hard-sided Pelican carrying case
    603075 Large, soft-sided carrying case
    603162 Small, soft sided carrying case (up to 10-meter cable)
    603069 Belt clip to attach instrument to belt
    603070 Shoulder strap
    063517 Ultra clamp (attach to instrument to secure it to a desk, boat, etc.)
    605978 Cable weight, 4.9 oz. (attach to stainless steel tip)
    3161 1,000 μs/cm calibrator; quart
    3163 10,000 μs/cm calibrator; quart
    3165 100,000 μs/cm calibrator; quart
    3167 1,000 μs/cm calibrator; 8 each pints
    3168 10,000 μs/cm calibraotr; 8 each pints
    3169 50,000 μs/cm calibrator; 8 each pints
