9800 Photometer

Portable, multiparameter photometer for water quality testing in the field and laboratory.

As the latest addition to YSI's best-in-class platform of portable instrumentation, the YSI 9800 provides direct measurements for over 30 water quality tests in any application. Utilizing accurate and proven photometric test methodologies with an ergonomically improved, modern, sleek user interface, the YSI 9800 makes water quality testing convenient, quick, and easy for all customers.

The YSI 9800 directly replaces the YSI 9300 and YSI 9500 photometers. The YSI 9300 and YSI 9500 have been discontinued.

Note: Reagents are sold separately.

• Order Photometer

  SKU	Description	Price	Quantity
  YPT980	9800 Photometer Kit	$1,813.00	* * *

• Order Reagents

  SKU	Description	Price	Quantity
  YAT1707	YAT1707	$47.00	* * *

• Order Replacement Reagents

  SKU	Description	Price	Quantity

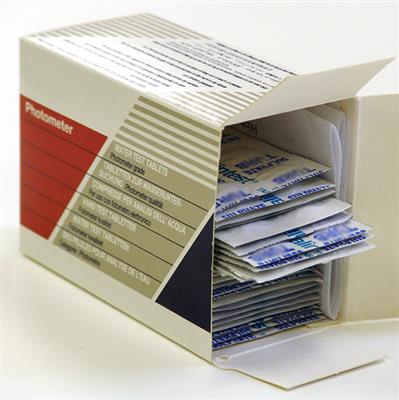

  YAP188	Alkalinity, Total Replacement Reagent	$115.00	* * *
  YAP166	Aluminum Replacement Reagent	$159.00	* * *
  YAP152	Ammonia Replacement Reagent	$125.00	* * *
  YAP060	Bromine Replacement Reagent	$47.00	* * *
  YAP252	Calcium Hardness Replacement Reagent	$132.00	* * *
  YAP011	Chlorine DPD-Free Replacement Reagent	$52.00	* * *
  YAP187	Copper (Free) Replacement Reagent	$171.00	* * *
  YAP186	Copper Replacement Reagent	$242.00	* * *
  YAP087	Cyanuric Acid Replacement Reagent	$102.00	* * *
  YAP179L	Fluoride Replacement Reagent (200 tests per pack)	$174.00	* * *
  YAP254L	Hardness Replacement Reagent	$160.00	* * *
  YAP156	Iron HR Replacement Reagent	$90.00	* * *
  YAP193L	Magnesium Replacement Reagent	$114.00	* * *
  YAP173L	Manganese Replacement Reagent	$160.00	* * *
  YAP284	Nickel Replacement Reagent	$332.00	* * *
  YAP163	Nitrate, 200 test per pack (Nitratest) Replacement Reagent	$237.00	* * *
  YAP109	Nitrite-N (Nitracol) Replacement Reagent	$95.00	* * *
  YAP260	Nitrite-NaNO2 (Nitraphot) Replacement Reagent	$140.00	* * *
  YAP056	Ozone Replacement Reagent	$83.00	* * *
  YAP130	pH (Phenol Red) Replacement Reagent	$50.00	* * *
  YAP177	Phosphate LR, 200 tests per pack Replacement Reagent	$156.00	* * *
  YAP189	Potassium Replacement Reagent	$141.00	* * *
  YAP154	Sulfate Replacement Reagent	$69.00	* * *

• Order Accessories

  SKU	Description	Price	Quantity
  YPT287	9800 Carrying Case	$142.00	* * *
  YPT805	9800 Photometer Check Standards	$132.00	* * *
  YPT502	Crush/Stir Rod	$22.00	* * *
  YPT500	DE-ION Pack	$29.00	* * *
  YPT512	Dilution Tube	$20.00	* * *
  YPT606	Filter Holder Luer	$28.00	* * *
  YPT600	Filtration Set Luer/GFB	$84.00	* * *
  YPT603	GFB filters	$52.00	* * *
  YPT526	Nitrate Tube	$26.00	* * *
  YPT983	Polishing Cloth	$23.00	* * *
  YPT989	Reagent Box	$23.00	* * *
  YPT988	Round Test Tubes with Caps, 5 ea. (9800 only)	$60.00	* * *
  YPT986	USB Cable, Type A to C	$29.00	* * *

• Overview

  The YSI 9800 is a portable, multiparameter photometer for quickly and accurately measuring over 30 water quality parameters. For use in the field or lab and featuring a large touchscreen display and an intuitive user interface with onscreen instructions, the 9800 Photometer is the ideal instrument for users of any level of experience operating in any environment!

  Rugged and Modern
  Waterproof IP-67 rating even when using a USB connection to power the instrument
  Impact tested
  Abrasion-resistant and chemical-resistant coating
  Large, full-color touchscreen display works even with wet or gloved hands
  Onscreen step-by-step test instructions
  Comfrotable, ergonomic design

  Smart, Versatile
  Choose from 30+ tests or define your own
  Multiple languages, including English, French, Spanish, and Mandarin
  User-selectable options for test units, sample numbers, and dilution factors
  Automatically stores all test results, data IDs, and user information for data compliance and traceability
  Simple Data Management via USB connectivity also powers the instrument
  User-upgradeable software via USB connection to PC
  1,000 Data Set Memory

  Sustainable
  Fully serviceable and repairable over the life of the instrument
  Carrying case composed of 100% recycled materials
  Longer-lasting battery life (up to 5,000 tests per set)

  Each YSI 9800 Photometer Kit includes the following:

  • YSI 9800 photometer
  • Carrying case
  • 1 dilution tube
  • 1 syringe (luer slip, 10 mL)
  • 1 polishing cloth
  • 1 absorbent cloth
  • 1 test tube brush
  • 1 USB Type A to C cable
  • 10 stir rods
  • 10 test tubes
  • 1 reagent box
  • 1 quick start guide

• Specifications

  Feature	Specifications
  Instrument Type	Multiparameter Photometer
  Wavelengths	430 nm, 465 nm, 530 nm, 575 nm, 620 nm
  Accuracy	± 1%T (transmission)
  Display	Large, Color LCD
  User Interface	Touch screen with walkthrough text instructions
  Dimensions	Width: 211 mm (8.3 in) Length: 195 mm (7.7 in) Height: 52 mm (2.0 in)
  Weight	0.85 kg (1.87 lbs)
  IP Rating	IP-67
  Power Supply	6x AA Batteries or through USB
  Connectivity	Connect to PC via USB cable
  Memory Capacity	1,000 data sets
  Battery Life	5,000 tests on one set of batteries
  Languages	English, French, Spanish, and Chinese (Simplified)
  Certifications	EN61326, EN61010, IP67, and EN60068-2-78

• Accessories



  9800 Carrying Case

  Hard-Sided Carrying Case



  Ammonia Conditioning Reagent Starter Kit

  Ammonia Conditioning Reagent Starter Kit



  Iron LR Reagent Starter Kit

  Iron LR Reagent Starter Kit



  Iron MR Reagent Starter Kit

  Iron MR Reagent Starter Kit



  Alkalinity, Total Replacement Reagent

  Alkalinity, Total Reagent



  Aluminum Replacement Reagent

  Aluminum Replacement Reagent



  Ammonia Replacement Reagent

  Ammonia Reagent



  Bromine Replacement Reagent

  Bromine Replacement Reagent



  Calcium Hardness Replacement Reagent

  Calcium Hardness Reagent



  Chlorine DPD-Free Replacement Reagent

  Chlorine DPD-Free Reagent. Includes DPD 1.



  Copper Replacement Reagent

  Copper Replacement Reagent



  Copper (Free) Replacement Reagent

  Copper (Free) Replacement Reagent



  Cyanuric Acid Replacement Reagent

  Cyanuric Acid Replacement Reagent



  Fluoride Replacement Reagent (200 tests per pack)

  Fluoride Reagent (200 tests per pack)



  Hardness Replacement Reagent

  Hardness Reagent



  Iron HR Replacement Reagent

  Iron HR Replacement Reagent



  Iron MR Replacement Reagent

  Iron MR Replacement Reagent



  Manganese Replacement Reagent

  Manganese Reagent



  Nickel Replacement Reagent

  Nickel Replacement Reagent



  Nitrate, 200 test per pack (Nitratest) Replacement Reagent

  Nitrate, 200 test per pack (Nitratest) Reagent



  Nitrite-N (Nitracol) Replacement Reagent

  Nitrite-N (Nitracol) Reagent



  Nitrite-NaNO2 (Nitraphot) Replacement Reagent

  Nitrite-NaNO2 (Nitraphot) Reagent



  Ozone Replacement Reagent

  Ozone Replacement Reagent



  pH (Phenol Red) Replacement Reagent

  pH (Phenol Red) Reagent



  Phosphate LR, 200 tests per pack Replacement Reagent

  Phosphate LR, Reagent



  Potassium Replacement Reagent

  Potassium Reagent



  Sulfate Replacement Reagent

  Sulfate  Reagent



  USB Cable, Type A to C

  USB Cable



  9800 Photometer Check Standards

  Check Standards



  Round Test Tubes with Caps, 5 ea. (9800 Only)

  Round Test Tubes



  Polishing Cloth

  Polishing Cloth



  Reagent Box

  Reagent Box

• Guides
  • YSI 9800 Photometer Quick Start Guide
• Manuals
  • YSI 9800 Photometer User Manual
• Specification Sheets
  • YSI 9800 Photometer Spec Sheet | XA00254 English
  • YSI 9800 Photometer Spec Sheet | XA00254 French
