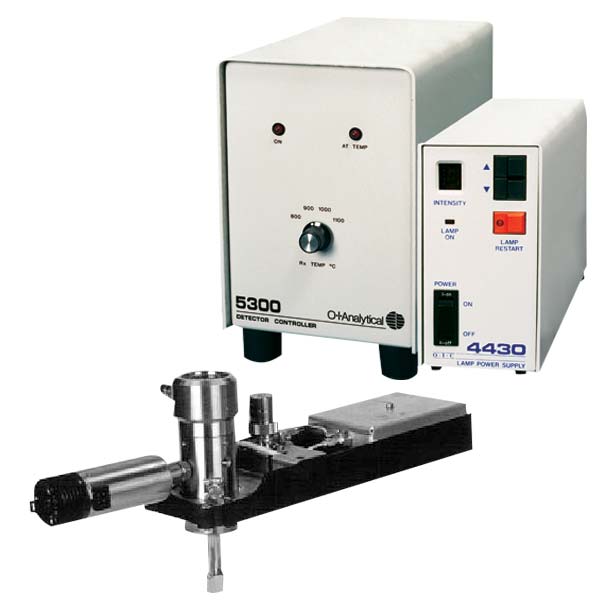

5390 Tandem PID/XSD

Work smarter with the Model 5390 Tandem PID/XSD, which combines the power of the 4430 Photoionization Detector (PID) and the 5360 Halogen Specific Detector (XSD) to simultaneously detect halogen and aromatic compounds.

• Overview

  This patented tandem detector offers the production of two gas chromatograph (GC) detectors, the 4430 PID and 5360 XSD, in one efficient package. Its unique design eliminates transfer lines and uses only one detector port. The model 5390’s simplified design improves reliability and performance, and reduces costs. Detectors can be used individually if desired.

  5390 Tandem PID/XSD Features:

  • Unique design eliminates need for transfer lines and minimizes dead volume
  • Patented tandem detector design uses only one GC detector port
  • Exclusive Lampsaver™ circuit can be programmed to turn off PID lamp after a specified period to extend lamp life
  • High sensitivity with selective detection of halogenated compounds
  • Low maintenance and increased stability and reliability
  • Unique jet design minimizes peak tailing due to unswept dead volumes or transfer lines

• Specifications

  XSD (Halogen Specific Detector) Specifications
  Dynamic Range	>105; Linear Range > 104
  Detectivity	<1 pg Cl/second
  Selectivity	Cl:HC > 104
  Reactor Operating Temperature	1,000 – 1,100 ˚C
  Gas Requirements/ Flow Rate	Ultra high purity air (or oxygen) 10-30 mL/min
  Power Requirements	90–260 VAC (±10% VAC) 47–63 Hz, 200W
  Detector Weight	0.8 lb (0.36 kg)
  Signal Output	0–1V or 0–10 V
  5300 Detector Controller Dimensions	8.25” H x 5.0” W x 12” D
  5300 Detector Controller Weight	8.4 lbs. (3.8 kg)



  PID (Photoionization Detector) Specifications
  Dynamic Range	> 104
  Sensitivity	<40 pg benzene
  Lamp Current	0 – 1.35 mA in 9.15 mA steps
  Lampsaver Time	0.5 – 2 hr, reset by external contact
  Gas Requirements	He 99.999%
  Power Requirements	105 – 125 VAC, , 25 VA 210–240 VAC, , 25 VA
  Maximum PID Operating Temperature	250 ˚C
  PID Volume	Approximately 50 µL
  PID Lamp Power Supply Dimensions	5.75” H x 2.75” W x 9” D
  Detector Weight	5.5 lb (2.7 kg)
