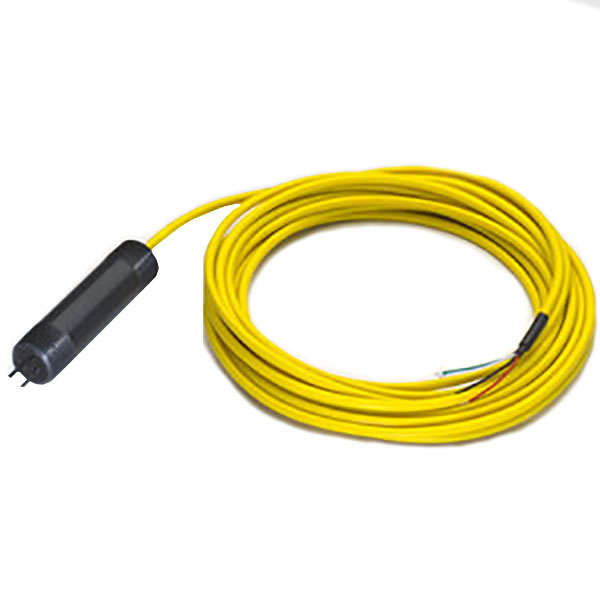

WA600 Water Level Alarm Sensor

Price$348.00 (US Only)

SKUADA000


In Stock 0 - Available for Backorder

Global Water's Water Level Alarm Sensor (WA600) is a solid state water sensor for detecting the presence of conductive solutions, such as water spills, water tank levels, and drainage ponds.

  • Overview

    FEATURES

    • Rugged
    • Fully submersible
    • Available with alarm for water or air contact
    • Ideal for water spills, tank failure, pump failure, rising water, and floods

    The water alarm sensor features two stainless steel electrodes that are positioned at a desired point for liquid detection. When fluid is detected, a relay closes in the water level alarm and the signal can be used to sound an audible alarm or close a switch inside a piece of remote monitoring equipment. The relay output is fully isolated and can handle 2 amps of current.

    After the water level alarm sensor is in dry conditions, the detection sensor will automatically reset without requiring additional service. The water level alarm is rugged and durable and requires minimal maintenance.

    The Water Level Alarm has many uses, including: surface water monitoring, precision level detection, water level control, high water indication, and submersible marine low level indication. The water alarm sensor can be purchased to trigger an alarm upon contact with water or air (please specify when ordering).

  • Specifications
    WA600 Water Level Alarm Sensor
    Electronics Solid state, fully encapsulated in epoxy
    Electrodes

    304 stainless steel

    Cable 4 wire shielded; 25 ft length (may be extended to 500 ft)
    Input Voltage

    12VDC to 36VDC

    Current Draw

    Continuous 4mA, Active 44 mA

    Alarm Output Isolated relay
     Contact Type: Switch closure
     Switching Voltage: 100Vdc max
     Switching Current: 250 mA max
     Carry Current: 400 mA max

    Weight

    6 oz (170 g)

    Dimensions

    1 inch dia. x 5 inches long (2.5 cm dia. x 13 cm long)
