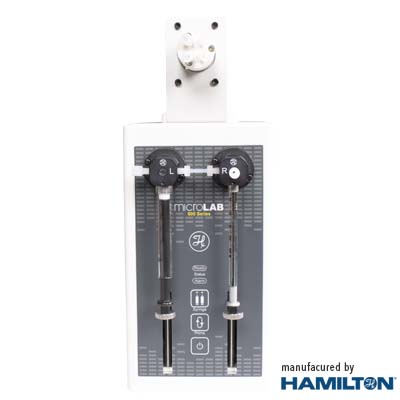

ML600 Autodilutor

Setting Up Your ML600 Autodilutor

PriceRequest Pricing

SKU332806


Optimize your productivity with this autodilutor for the FS3700 Automated Chemistry Analyzer system.

  • Overview

    Improve method accuracy through fewer dilution errors!

    Hamilton’s ML600 autodilutor automates the generation of calibration standards from stock solutions. It addresses the problem of varying initial concentrations and introduces higher precision, accuracy, and reproducibility to your lab than manual dilution.

    In conjunction with FlowView™ software, the ML600 automatically detects over-range samples, applies the correct dilution factors based on initial concentrations of the samples, and runs said samples without any interaction from the user. The ML600 ensures that the following samples are not adversely affected with an automatic re-run of followers after over-range samples.

    With this simple add-on module, maintenance, setup, and changeovers between different chemistries are quickly completed with minimal carryover risks. Optimize your productivity with this autodilutor for the FS3700 Automated Chemistry Analyzer system.

    Maintenance and setup are minimal. There’s minimal downtime between samples, too. Save time, reduce effort and reduce sample loss with no compromises to data quality.

    exo multiparameter sonde data datasonde


      Improve measurement accuracy and precision.



      Reduce cross-contamination and carryover risks.


    exo anti-fouling antifouling


      Automatic re-dilution of over-range samples.

  • Specifications
    Dilutor Specifications
    Feature
    Dilution Ratio Range 1:1.5 to 1:1,000
    Drive 1.8° Stepper motor with optical encoder
    Configuration  Dual-syringe
    Sample Syringe 0.100mL, 0.250mL, or 0.500mL
    Fluid path Borosilicate, PTFE, CTFE, PFA
    Power Requirements 100-240 VAC, 50-60 Hz, (3A/1.5A)
    Power Supply Separate module (included)
    Communications to PC USB-to-RS232 (from PC to Dilutor) (cable included)
    Communications to Valve TTL (cable included)
    Dimensions 7.0 x 5.5 x 10.5 inch (177.8 x 139.7 x 266.7 mm
    Weight 13 lbs (5.9 kg)
    Operating Temperature 41–104°F (5–40°C)
    Storage Temperature -4–158°F (-20–70°C)
    Humidity range 20–90% non-condensing
    Compliance FCC Part 15, Class B EMC: EN 61326-1, Class B
