Fixed Vertical Profiler

YSI Systems Vertical Profilers

The Vertical Profiling Systems provide automated data collection and telemetry throughout a water column in watersheds, source water and reservoir monitoring. YSI's Vertical Profilers are available in fixed, buoy, or pontoon systems.

Schedule a Free Virtual Consultation!

PriceRequest Pricing


The Vertical Profiling Systems provide automated data collection and telemetry throughout a water column in watersheds, source water and reservoir monitoring.

  • Overview

    The 6950 Fixed Profiling System provides reliable, fully-automated data collection.

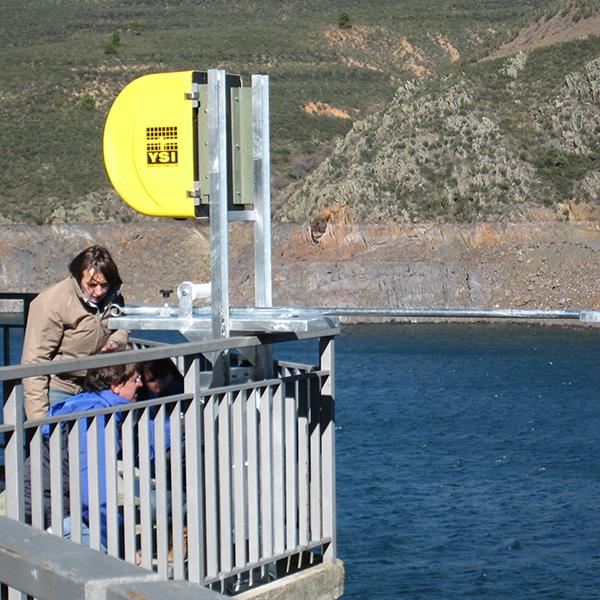

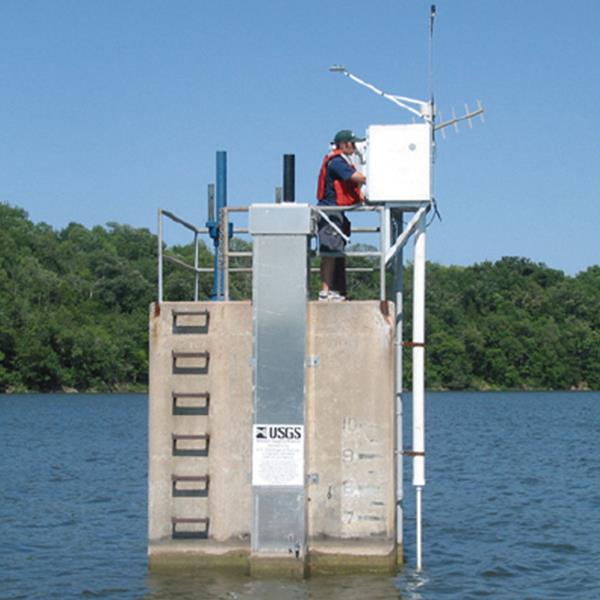

    Mountable on a dam, pier, piling, or other stationary location, the 6950 offers user-programmable sample intervals with wireless transmission options. This Fixed Profiler is compatible with all YSI EXO Sondes equipped with depth, and comes with Profile Wizard software for easy set-up and deployment.

    The fixed vertical profiling system, when equipped with a fully loaded EXO Sonde, can be programmed to move up and down the water column at regular intervals collecting valuable data on the waters condition with respect to various parameters. That information can then be relayed via telemetry or a direct connection such as Ethernet so that water treatment managers can view the data in real time. With this information, managers can adjust water treatment operations.

    Some of the notable features are:

    • NEMA4 enclosure for electronics
    • Compatible with all EXO Sondes equipped with depth
    • User-selected sample intervals
    • Profile Wizard Software for simple program configuration
    • Wireless or direct connection data transmission available

    Applications Include:

    • Drinking Water Reservoirs to ascertain water quality, salinity, turbidity, temperature, chlorophyll, DO, pH and PAR (photosynthetically-active radiation)
    • Homeland Security applications
    • Research of upwelling events
    • Hydropower thermal phenomena and temperature
    • General Monitoring of lakes, rivers, estuaries, and bays
    • Industrial drinking water holding tanks

    If you're interested in additional profiling systems we also offer pontoon profilers and buoyed profilers

    Available Options:

    •  SCADA Interface - Allows for data collection from a YSI Vertical Profiler via direct connection or telemetry to a customers PLC
    • CASTAWAY Profile - The Castaway option for Vertical Profilers allows for continuous payout of cable, sampling the entire time

    ISS_Support_Icon.pngThis product is a complete solution from our Integrated Systems & Services group.  Let our application engineers help you with the heavy lifting on your next project.  Contact YSI's Integrated Systems & Services team to discuss your specific monitoring application.  We offer a variety of buoy platforms which can be tailored to fit your needs.

  • Specifications
    Cable Options 50 m or 100 m
    Depth Profile Setpoint Accuracy

    ±0.1 m

    Equipment used with EXO Sondes, 6-Series Sondes
    Languages English
    Minimum Profile Depth 1 meter
    Profile Depth 0-50 m standard; 0-100 m optional
    Profile Direction Bottom-Up
    Reference Point Physically set and controlled bottom-referenced control point

    1-year on main profiler unit
