4450 Tandem PID/FID

Experience the convenience and flexibility of the Model 4450 Tandem Photoionization Detector/Flame Ionization Detector (PID/FID): a patented combination gas chromatography (GC) detector incorporating the Model 4430 PID and Model 4410 FlD.

• Overview

  Our dynamic duo Model 4450 Tandem PID/FID offers the goodness of two detectors packed into one convenient instrument. Together, the detectors produce simultaneous chromatograms for aromatics and aliphatics, eliminating the need for separate analysis.

  Tandem PID/FID Features:

  • Patented design uses only one GC detector port
  • Tandem design acquires two simultaneous chromatograms from a single injection
  • Elimination of transfer lines between detectors improves peak shape and performance
  • System uses GC electronics or OI Analytical’s dual channel electrometer

• Specifications

  4450 Specifications
  Weight	3 kg (5.5 lb)
  Patent	The 4450 Tandem PID/FID is protected under U.S. Patent number 4,804,846.



  4430 FID Specifications
  Dynamic Range	>106
  Minimum Detection Limit	<40 pg benzene (Based on the USEPA minimum detection limit protocol. Several factors including GC, column, and compound class can affect performance.)
  Maximum Operating Temperature	250 °C
  Materials of Construction
  Inlet	Glass-lined stainless steel
  Ion Chamber	Gold-plated stainless steel
  Vent	Controlled by GC external events relay
  Detector Volume	Approximately 50 µL
  Lamp Current	0–1.60 mA in 0.15 mA steps
  PID Sweep Gas	Hydrogen (99.999% purity), 35 ±3 mL/min flow rate
  PID Makeup Gas	Nitrogen or Helium (99.999% purity), 20 ±5 mL/min flow rate
  Controller Dimensions	14.74 cm H x 7.05 cm W x 23.08 cm D (5.75" H x 2.75" W x 9.0" D)

  4410 FID Specifications
  Dynamic Range	>106
  Minimum Detection Limit	5 pg carbon/second propane
  Maximum Linear Level	100 µg
  Maximum Operating Temperature	270 °C
  Jet Tip	0.30 mm I.D. (0.012")
  Materials of Construction
  Jet	Glass-lined stainless steel
  Collector	Stainless steel
  FID Air	Air (dry, best available purity), 170 ±15 mL/min flow rate

• Accessories

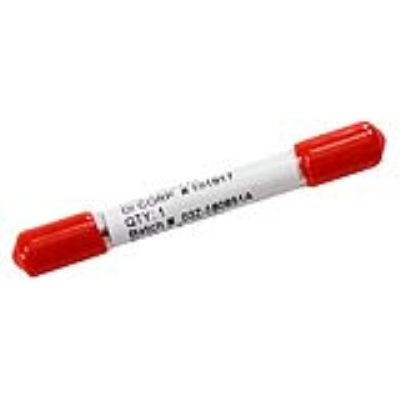

  FID Jet 1/16" 0D X .3MM ID

  FID Jet
