WA100 Liquid Level Float Switch

Price$222.00 (US Only)

Option

SKUAXF000


In Stock 0 - Available for Backorder

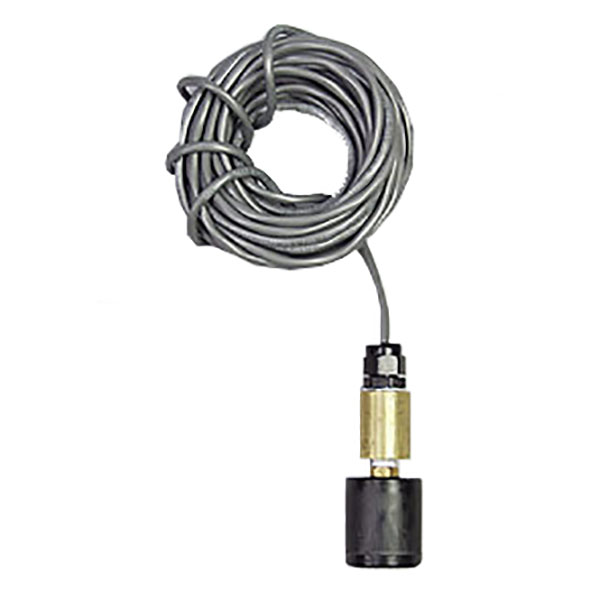

The Global Water WA100 liquid level float switch is easy to install, fully submersible and includes 20 ft of 22 AWG, PVC jacketed 2-conductor cable.

  • Overview

    FEATURES

    • Easy installation; compact size
    • Highly reliable; long service life
    • Built in slosh shield reduces false trips
    • Use for high level or low level operation

    WA100 liquid level float switches are self-weighted so they can be suspended in a tank, stilling well or standpipe without the need to tie the float switches off. The point at which the liquid level float switches actuate can be easily adjusted by adjusting the suspension depth as required. The liquid level float switch has a built-in slosh shield that prevents false tripping in turbulent conditions.

    The low-cost WA100 liquid level float switch is ideally suited for sumps, dispenser pans, monitoring wells or double-wall tanks where monitoring for leaks is required. The liquid level float switches also work great on our WA400 Level Alarms or one of our WS700 series Water Samplers.

    Another great feature of the WA100 liquid level float switch is that it can easily be changed from NC (normally closed) operation to NO (normally open) operation so that it may be used for high or low level applications. Simply remove the bottom portion of the liquid level float switch's slosh shield and flip the float over to change the function. The liquid level float switch's slosh shield may also be removed for use in applications where there are heavy solids in the water.

  • Specifications
    WA100 Liquid Level Float Switch Materials
    Stem and Extension Brass
    Float

    Buna-N

    Slosh Shield PBT
    Cable

    20 Ft AWG 22 wth PVC Jacket

    Current/Voltage Ratings

    0.14 A (resistive) @ 220 VAC
    0.28 A (resistive) @ 110 VAC
    0.07 A (resistive) @ 120 VDC
    0.28 A (resistive) @ 24 VDC

    Operation NC (normally closed): Closes on low level
    NO (normally open): Closes on high level

    Weight

    0.4Lbs (181g)

    Dimensions

    1.44in (3.7cm) diameter x 4in (10cm) long
