Digital TriOxmatic® electrochemical dissolved oxygen sensors

  • Overview

    Digital electrochemical DO sensors with TriOxmatic® electrodes for use with the IQ SensorNet terminals 282/284 and 2020 3G.

    The electrochemical method of detecting dissolved oxygen utilizes a semi-permeable membrane, an anode and cathode and an electrolytic solution.  The electrical current can be measured and correlates to the oxygen concentration.  For accurate results, required conditions include; proper calibration, flow past the membrane, clean electrolyte solution and electrodes, and a clean membrane.

    With the TriOxmatic sensors, a 3-electrode patented technology is used.  The TriOxmatic sensor functions with a potentiostatically driven 3-electrode system.  In terms of measuring technology, this means that two silver electrodes and a gold cathode are in use.  One silver anode functions as a non-current bearing reference electrode and the other silver anode is the "live" anode.  The reference anode leads to improved signal stability and higher measurement accuracy.

    The 3-electrode system also allows for monitoring of the electrolyte supply with the system display capable of indicating when the solution needs to be replaced.

    TriOxmatic 700 Series IQ sensors:

    • SensReg function monitors the electrolytic solution for replacement needs
    • SensLeak function continually monitors for leakage in the membrane and provides an alert if leakage is detected
    • Fouling resistant membranes
    • No "break in" period needed
    • No long-term drift
    • Integrated lightning protection
    • Digital sensor technology retains calibrations

    Which sensor is right for you?

    TriOxmatic 700 IQ (700 IQ SW sea water design also available)

    Universal oxygen sensor for measuring and controlling oxygen input in biological wastewater treatment processes.  Rugged DO sensor with a very durable 50 micron thick hydrophobic membrane, with a minimal flow rate of 0.5 cm/sec and response time of T90 at 25°C in 180 seconds.  Well suited sensor for DO measurements in biological purification stages at wastewater plants and control of oxygenation.  The response of the sensor prevents signal disturbances from rising air bubbles in aeration tanks.

    TriOxmatic  701 IQ

    DO sensor with increased resolution and improved response times.  The 701 IQ uses 25 micron thick membranes with a response time of T90 at 25°C in 30 seconds and an amazing T99 response time at 25°C in 90 seconds.  This sensor is ideally suited for low level concentration applications such as DO levels in denitrification processes in wastewater plants.

    TriOxmatic 702 IQ

    The 702 IQ provides similar performance to the 701 IQ but is specifically designed for trace level measurements in the ppb range.  The sensor is suited for use in ultra-pure water applications for monitoring of boiler feed water or drinking water purification.

    See "TriOxmatic Electrodes Technical Data" table under "Ordering Info" tab for more technical information.

    The TriOxmatic can only be used with the process monitors IQ SensorNet 282/284 or the IQ SensorNet 2020 3G.

  • Specifications
    Certifications CE, cETLus
    Depth / Pressure Rating / Limit 10 bar (145 psi)
    Digital / Digital Sensors Yes
    Equipment used with 282/284 and 2020 3G
    Integrated Lightning Protection Yes
    Languages English, German
    Measurement Range Oxygen Concentration - 0.0 to 60.0 mg/L; Oxygen Saturation - 0 to 600%
    Operating Temperature 32 to 140°F (0 to 60°C)
    Parameters Measured Dissolved Oxygen
    Response Time T90 at 25°C in 180 seconds
    Smart Sensors / Ports Yes
    Storage Temperature 32 to 149°F (0 to 65°C)
    User Calibratable Yes, rarely needed
    Warranty 2 years
    Waterproof IP-68
  • Accessories

    IQ SensorNet Maintenance Kit for TriOxmatic Probes

    Maintenance kit for use with TriOxmatic Probes

    Cleaning Solution for Silver Electrode

    Cleaning Solution for Silver Electrode in TriOxmatic Probes

    TriOxmatic Sensor Guard

    Protective membrane guard  for TriOxmatic and CellOx probes

    Electrolyte Solution for TriOxmatic Probes

    Solution for TriOxmatic 600/700-series probes, 50 mL

    Cleaning Cup for TriOxmatic Probes

    IQ SensorNet Cleaning Cup for TriOxmatic

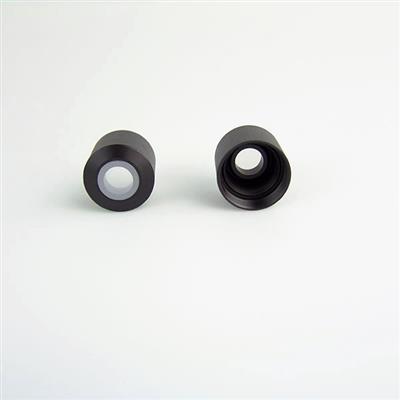

    Membrane Head Assemblies for TriOxmatic

    Membrane Head Assemblies for TriOxmatic Probes
