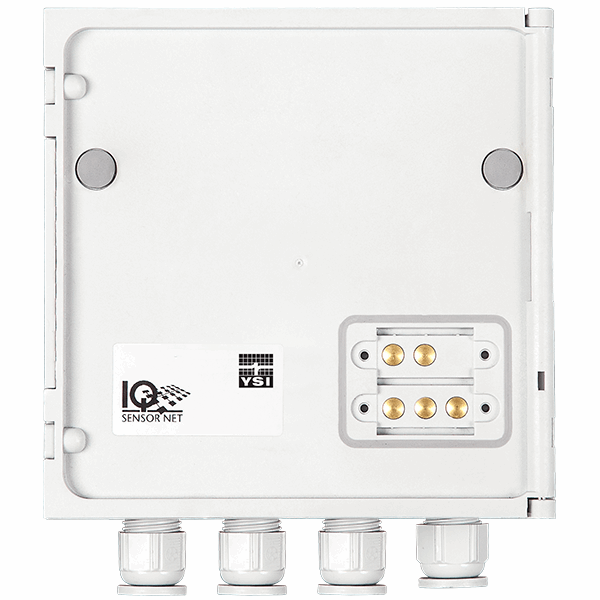

IQ SensorNet Output Module

Output Module for IQ SensorNet with 6 Analog outputs.  2 IQ SensorNet Connections.

• Overview

  The MIQ/C6 module has 6 analog outputs (0/4-20 mA) for the 2020 3G, 282/284 terminals.

  Power consumption is 3 watts.

  Number of occupied output channels is 6.

  48 output channels are available in the system.

• Specifications

  Certifications	equivalent to NEMA 4X (not suitable for conduit connection), IP-66
  Connectivity / Communications	282/284 terminals, 6 analog outputs (0/4-20 mA) for the 2020 3G
  Equipment used with	282/284 and 2020 3G
  Integrated Lightning Protection	Yes
  Languages	German, English
  Operating Temperature	-4 to 131 °F (-20 to 55 °C)
  Power	Directly via the IQ SensorNet
  Smart Sensors / Ports	Yes
  Storage Temperature	-13 to 149 °F (-25 to 65 °C)
  Warranty	3 Years
