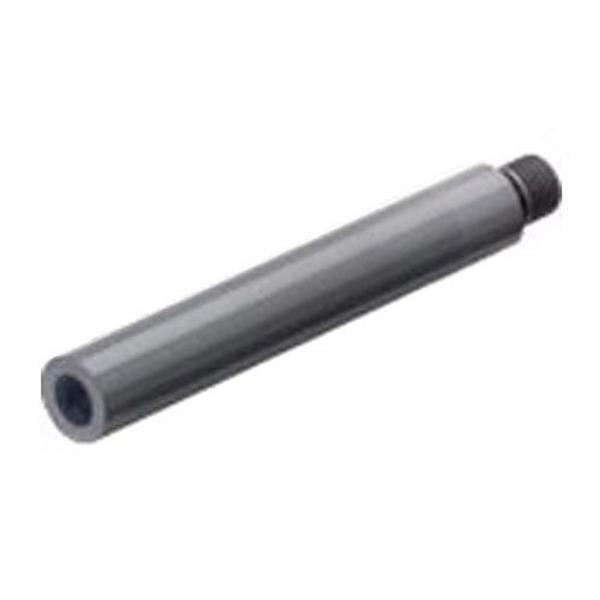

6882 Chloride ISE Sensor

Add YSI ISE sensors to complement any sampling regimen with chloride, nitrate and ammonia measurements. Designed to work hand-in-hand with YSI's pH sensors, ISEs provide nutrient data that can benefit your current sampling project.

This sensor must be installed into a 6-Series sonde to function. Does not function on its own.

• Overview

  The YSI 6882 chloride ISE sensor employs a solid state membrane attached to a conductive wire.

  When the probe is immersed in water, a potential is established across the membrane that depends on the amount of chloride in the medium. This potential is read relative to the reference electrode of the sonde pH probe. As for all ISEs, there is a linear relationship between the logarithm of the chloride activity (or concentration in dilute solution) and the observed voltage. The Nernst equation describes this relationship.

  Features:

  • Freshwater use only
  • Best for sampling applications
  • Field-replaceable

  Notable Specifications:

  Range: 0 to 1000 mg/L
  Resolution: 0.001 to 1 mg/L (range dependent)
  Accuracy: ±15% of reading or 5 mg/L, whichever is greater
  Depth: 50 ft, 15 m

• Specifications

  Depth / Pressure Rating / Limit	15 m, 50 ft
  Equipment used with	6920, 6920V2, 6820, 6820V2, 6600, ADV6600
  Measurement Range	0 to 1000 mg/L
  Medium	Freshwater Only
  Operating pH Range	0 to 1000 mg/L
  Parameters Measured	Chloride
  Precision	±15% of reading or 5 mg/L, whichever is greater
  Sampling	Yes
  User Calibratable	Yes
  User Replaceable	Yes
  Warranty	6 months
