The MIQ/IDS expansion module connects the Intelligent Digital Sensor (IDS) platform to the IQ SensorNet system, serving as the gateway for high-accuracy digital sensors. Developed alongside YSI’s Water Monitoring Panel, it brings continuous laboratory-grade measurements directly to the process in municipal drinking water, aquaculture, industrial, and environmental monitoring applications.
The MIQ/IDS is available in 3 different models:
|

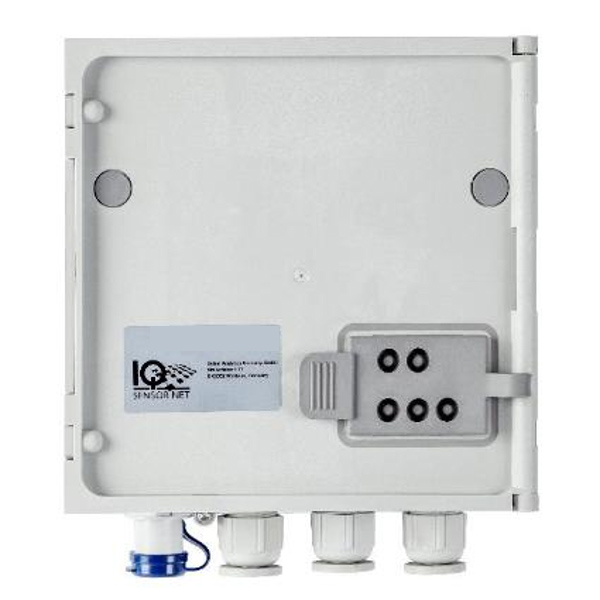

MIQ/IDS1
|
IDS module for integrating Intelligent Digital Sensors (IDS) into the IQ SensorNet network, 1 IDS connection, 2 IQSN connections
|
|

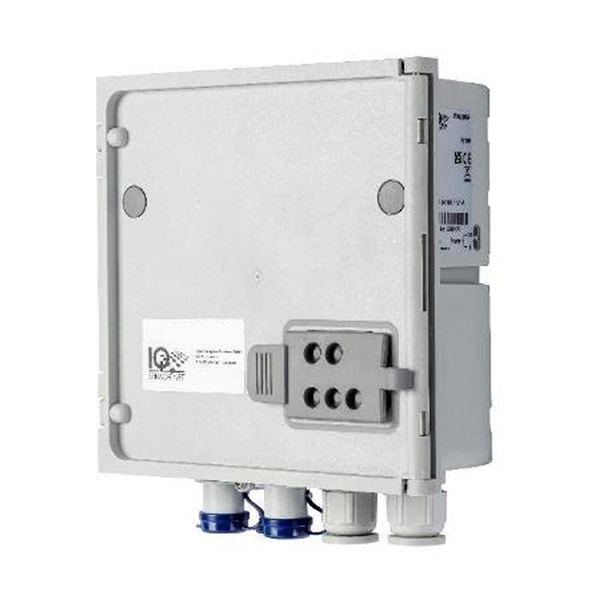

MIQ/IDS2
|
IDS module for integrating Intelligent Digital Sensors (IDS) into the IQ SensorNet network, 2 IDS connections, 2 IQSN connections
|
|

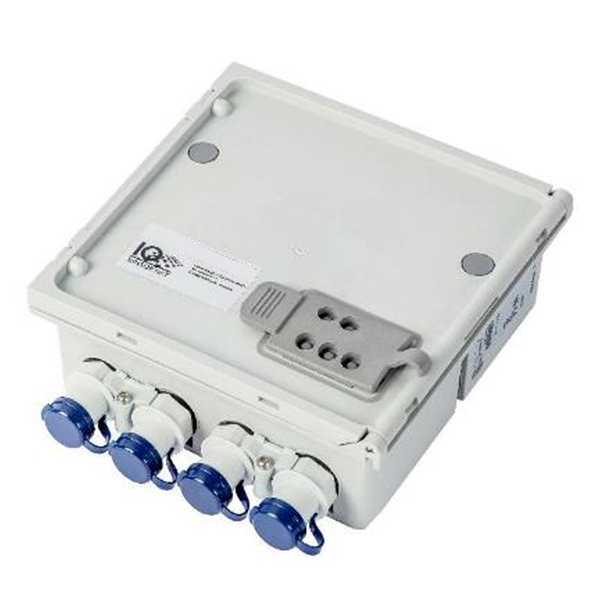

MIQ/IDS4
|
IDS module for integrating Intelligent Digital Sensors (IDS) into the IQ SensorNet network, 4 IDS connections, 0 IQSN connections
|
Modular Flexibility for Water Systems
Easily scale your water monitoring network with the MIQ/IDS expansion module. Its stackable, plug-and-play design allows utilities to add sensors as demand grows, without costly infrastructure upgrades or additional cabling. This ensures future-proof compliance and minimal disruption to operations.
Automatic Sensor Recognition
The MIQ/IDS module provides seamless integration with the IQ SensorNet platform. Any Intelligent Digital Sensor (IDS) connected is automatically recognized, delivering real-time water quality data for parameters like pH, ORP, chlorine, conductivity, and dissolved oxygen.

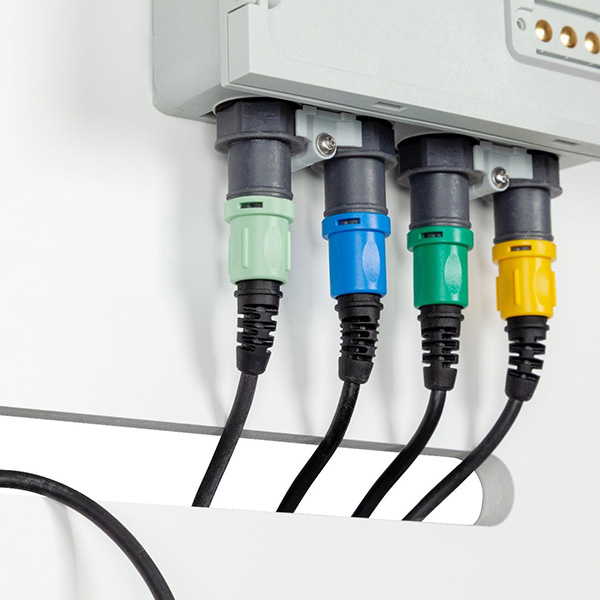

Simplified Setup with Single-Cable Efficiency
Reduce installation time and costs with the single-cable design that powers and communicates across the entire IQ SensorNet system. operators benefit from a streamlined setup, lower maintenance overhead, and reliable data transfer, ideal for integrating with SCADA and control systems in drinking water plants.
Compatible Sensors:
|
4140
|
pH electrode with gel electrolyte, glass shaft, three ceramic junctions, and integrated temperature sensor, 3 junctions, 1.5 m integral cable
|
|
4140W
|
pH electrode with gel electrolyte, glass shaft, three ceramic junctions, and integrated temperature sensor, 3 junctions, detachable cable not included
|
|
4220W
|
SensoLyt® pressure-resistant ORP electrode, detachable cable not included
|
|
FCML 412 M12-2
|
FCML 412 M12-2, Electrochemical free chlorine sensor, 0-2 mg/l, Water Monitoring Panel
|
|
FCML 412 M12-20
|
FCML 412 M12-20, Electrochemical free chlorine sensor, 0-20 mg/l, Water Monitoring Panel
|
|
TCML 412 M12-2
|
TCML 412 M12-2, Electrochemical total chlorine sensor, 0-2 mg/l, Water Monitoring Panel
|
|
4310
|
IDS 4310 conductivity probe, epoxy body, cell constant K = 0.475, 1.5 meter cable
|
|
4310W
|
IDS 4310 conductivity probe, epoxy body, cell constant K = 0.475, detachable cable not included
|
|
4320
|
IDS 4320 conductivity probe, stainless steel body, cell constant K = 0.1, flow cell included; for ultrapure water applications, cannot be calibrated by the user,1.5 meter cable
|
|
4320W
|
IDS 4320W conductivity probe, stainless steel body, cell constant K = 0.1, flow cell included; for ultrapure water applications, cannot be calibrated by the user, detachable cable not included
|
|
FDO 4410
|
IDS 4410 fluorescent dissolved oxygen (FDO) probe, 1.5 meter cable
|
|
FDO 4410W
|
IDS 4410W fluorescent dissolved oxygen (FDO) probe, detachable cable not included
|
