MultiLab 4010-3W

MultiLab Benchtop Instrument | Overview

Take a look at the features of our MultiLab line of instruments, so you can see firsthand how well this versatile platform fits into your lab.

MultiLab Benchtop Instrument Probe Selection Overview

MultiLab Enter to Win sidebar

Price$2,427.36 (US Only)

SKU1FD570Y


In Stock 1

Laboratory instrument for DO/BOD, pH, ORP, conductivity and ion activity measurement. EPA approved for drinking water and wastewater compliance reporting.

Connect digital IDS sensors to the MultiLab 4010-3W for the measurement of DO/BOD, pH, ORP, and conductivity in any combination. Ion selective electrodes (ISEs) can also be connected to the instrument.

Instrument Only.  Cables, probes/sensors, and accessories sold separately.

Please see the MultiLab Ordering Guide if ordering a complete system, or contact us if you have any questions.

  • Order Meter
    SKU Description Price Quantity
    1FD570Y MultiLab 4010-3W Three Channel Benchtop Instrument $2,427.36
  • Order Sensors
    SKU Description Price Quantity
    626500 IDS ProOBOD - Optical DO/BOD Probe With Stirrer $1,163.76
    626500-5 IDS ProOBOD – 5 m Optical DO/BOD Probe with Stirrer $1,352.00
    103763Y 4210W Wireless Double Junction ORP Electrode, Glass Body, Refillable $399.36
    201300Y 4410 FDO Probe with 1.5 meter cable $1,050.40
    201301Y 4410 FDO Probe with 3 meter cable $1,112.80
    400393 TruLine Chloride Electrode Kit $778.76
    400371 TruLine Ammonium Electrode Kit $789.47
    400354 TruLine pH 27 Flat Glass pH Electrode Without Built-In Temp, Plastic Body, Not Refillable, Flat Membrane; Ideal For Unique Applications Such As Surface Measurements $301.01
    301711Y IDS 4310-3 Conductivity Probe, Epoxy Body, 3 Meter Cable, Cell Constant K = 0.475, For General Lab Applications $500.24
    103791Y 42111 Double Junction ORP Electrode, Glass Body, Refillable, 1.5 Meter Cable $399.36
    400427 TruLine Potassium Electrode Kit $997.29
    103740Y IDS 4110 Double Junction pH Electrode, Plastic Body, Not Refillable, 1.5 Meter Cable $291.20
    400363 ScienceLine Temp 135, Stainless Steel Body For Fast Temperature Measurements $319.22
    103762Y 4130W Wireless Double Junction pH Electrode, Glass Body, Refillable $416.00
    400411 TruLine Iodide Electrode Kit $847.32
    400433 TruLine Silver/Sulfide Electrode Kit $840.89
    400445 TruLine Copper Electrode Kit $997.29
    400387 TruLine Calcium Electrode Kit $934.09
    201306Y 4410W Wireless Fluorescent Dissolved Oxygen (FDO) Probe $979.68
    301720Y IDS 4320 Conductivity Probe, Stainless Steel Body, 1.5 Meter Cable, Cell Constant K = 0.1, Flow Cell Included; For Ultrapure Water Applications, Cannot Be Calibrated By The User $639.60
    400403 TruLine Cyanide Electrode Kit $911.59
    400377 TruLine Bromide Electrode Kit $881.60
    301710Y IDS 4310 Conductivity Probe, Epoxy Body, 1.5 Meter Cable, Cell Constant K = 0.475, For General Lab Applications $460.72
    103760Y 4110W Wireless Double Junction pH Electrode, Plastic Body, Not Refillable $291.20
    300310 4100 ProBOD Polarographic, Membrane-Covered DO/BOD Probe With Stirrer $917.28
    400365 TruLine Ammonia Electrode Kit $662.00
    400361 Science pHT-G pH Electrode With Built-In Temp, Glass Body, Double Junction, Refillable, Ground-Joint Junction; Ideal For Samples High In Solids Or With Low Ionic Strength $413.48
    301716Y 4310W Wireless Conductivity Probe, Epoxy Body, Cell Constant K = 0.475, For General Lab Applications $460.72
    400416 TruLine Lead Electrode Kit $968.36
    103761Y 4120W Wireless Double Junction pH Electrode, Plastic Body, Refillable $335.92
    400362 Science pHT-Micro pH Electrode With Built-In Temp, Glass Body, Double Junction, Refillable, Micro Tip For Small Sample Sizes $561.31
    400406 TruLine Fluoride Electrode Kit $761.62
    301722Y 4320W Wireless Conductivity Probe, Stainless Steel Body, Cell Constant K = 0.1, Flow Cell Included; For Ultrapure Water Applications, Cannot Be Calibrated By The User $639.60
    400382 TruLine Cadmium Electrode Kit $934.09
    103780Y IDS 4130 Double Junction pH Electrode, Glass Body, Refillable, 1.5 Meter Cable $416.00
    400439 TruLine Sodium Electrode Kit $615.94
    400421 TruLine Nitrate Electrode Kit $807.68
    103750Y IDS 4120 Double Junction pH Electrode, Plastic Body, Refillable, 1.5 Meter Cable $335.92
    400357 TruLine pH 21 1 Piercing Tip pH Electrode Without Built-In Temp, Plastic Body, Not Refillable, Spear Tip Membrane; Ideal For Unique Applications Such As Food $419.91
    103741Y IDS 4110-3 Double Junction pH Electrode, Plastic Body, Not Refillable, 3 Meter Cable $335.92
  • Order Standards and Solutions
    SKU Description Price Quantity
    003821 pH 4 Buffer (box of 6 pints) $96.75
    003822 pH 7 Buffer (box of 6 pints) $96.75
    603824 pH Buffer Assorted Case (2 ea pints of 4, 7, 10) $96.75
    003823 pH 10 Buffer (box of 6 pints) $96.75
    065272 3163: Conductivity Calibrator 10,000 uS/cm (quart) Brackish Water $90.50
    065270 3161: Conductivity Calibrator 1,000 uS/cm (quart) Fresh Water $90.50
    065274 3165: Conductivity Calibrator 100,000 uS/cm (quart) Supersaturated Sea Water $90.50
    060907 3167: Conductivity Calibrator 1,000 uS/cm (8 ea, pint) Fresh Water $156.00
    060906 3160: Conductivity Calibrator 1413 uS/cm, +/- 1% (.01 MOLAR KCL) (8 ea, pint) $156.00
    060911 3168: Conductivity Calibrator 10,000 uS/cm (8 ea, pint) Brackish Water Conductivity Calibrator, 10,000 uS/cm (8 ea, pint) $156.00
    060660 3169: Conductivity Calibrator 50,000 uS/cm (8 ea, pint) Sea Water $156.00
  • Order Accessories
    SKU Description Price Quantity
    108142Y IDS WA-M Wireless Meter Module $113.36

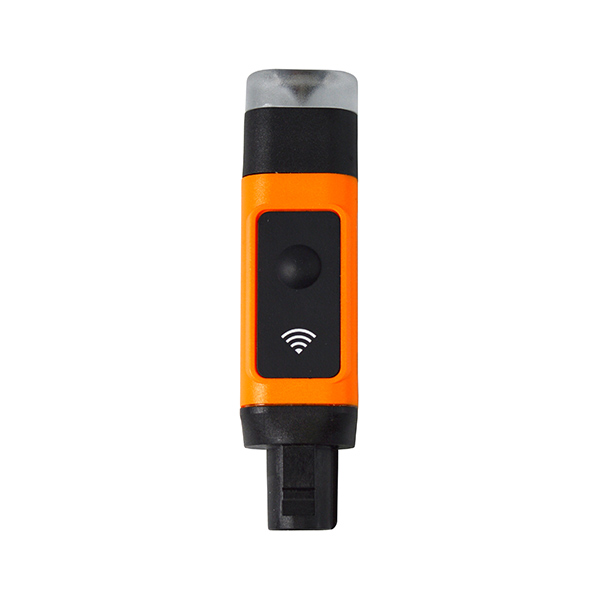

    108141Y IDS WA-S Wireless Sensor Module $164.32
    108144Y IDS WA Kit; Includes One WA-S Wireless Sensor Module, One WA-M Wireless Meter Module, One Charger For WA-S Modules, And A USB Power Supply $380.64
    903850Y IDS CABLE- 1.5m ) For Wireless MultiLab Sensors; Connects Any Wireless MultiLab Sensor Directly To The Instrument $126.88
    903851Y IDS CABLE - 3m For Wireless MultiLab Sensors; Connects Any Wireless MultiLab Sensor Directly To The Instrument $164.32
    108132Y 4010-2/3 BNC Adapter $220.48
    108143Y IDS WA-S AC Charger For Battery In WA-S Wireless Sensor Module $126.88
    108160Y Stirrer Adapter; Allows Connection Of Up To 3 BOD Probe Stirrers To The MultiLab $113.36
    902873Y 4011 Adapter; Allows Connection Of The YSI 5010 BOD Probe $201.76
Add to Cart
  • Overview

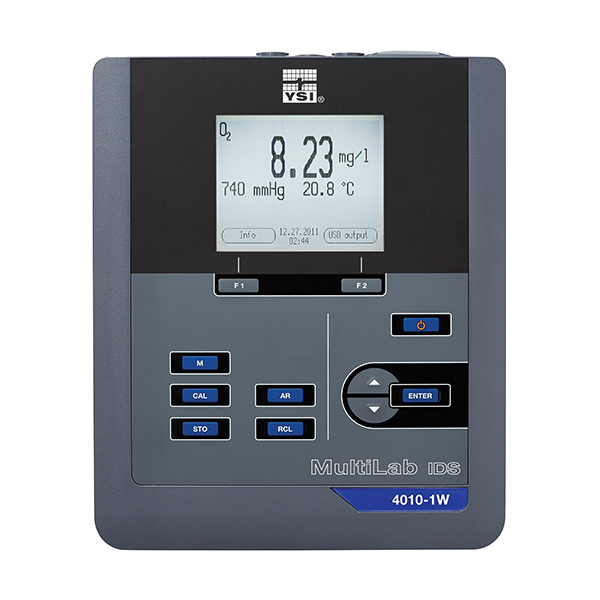

    The YSI MultiLab line includes the 4010-1W (single channel), 4010-2W (dual channel) and 4010-3W (three channel) instruments providing easy to use and calibrate menu-driven operation ideal for the laboratory.

    All MultiLab instruments can accurately measure pH, ORP, conductivity, and DO/BOD. ISEs can also be connected to two and three channel instruments.

    Please visit the MultiLab Kits page for fully assembled systems.

    Features of the MultiLab line:

    • Input for pH, ORP, DO/BOD (optical or polarographic), or conductivity sensors
    • ISEs with BNC connection can be connected to the MultiLab 4010-2W and 4010-3W with an adapter (108132Y) that converts one digital input to an analog BNC input (i.e. only one ISE can be connected)
    • Built-in OUR/SOUR software on the MultiLab 4010-2W and 4010-3W
    • Wireless sensors available for the MultiLab 4010-1W, 4010-2W, and 4010-3W
    • Data storage - 500 data sets in manual mode and 5,000 (MultiLab 4010-1W) or 10,000 (MultiLab 4010-2W and 4010-3W) data sets in automatic logging mode
    • Large, easy to read graphic display
    • Color screen and antibacterial keypad on MultiLab 4010-2W and 4010-3W instruments
    • Intelligent, digital sensors - plug and play connectivity
    • GLP traceability (sensors store serial # and calibration data)
    • USB connectivity to manage data; USB cable included
    • PC software included for easy data transfer
    • Durable electrode stand included
    • 3-year warranty

    Intelligent Digital Sensors (IDS)

    The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The sensors can be moved from instrument to instrument and maintain their calibration data and transmit this information to the new instrument.

    • Plug and play connectivity with each instrument
    • IDS sensors store their own unique ID with serial number and calibration data
    • Digital sensor recognition, processing and data transfer
    • Includes self-stirring BOD (optical or polarographic), fluorescent dissolved oxygen (FDO), pH, ORP and conductivity sensors

    Wireless Sensors

    Free yourself from cables! The MultiLab offers wireless sensors for pH, FDO, conductivity, and ORP, giving you freedom to move around your laboratory.

    EPA Approved Methodology

    The IDS OBOD probe (optical) and the IDS 4100 BOD probe (polarographic) can be used for wastewater compliance reporting of BOD and CBOD. Available IDS pH and conductivity sensors can also be used for drinking water and wastewater compliance reporting.

    By using the available BNC adapter and the corresponding ISE, the MultiLab 4010-2W and 4010-3W can be used for compliance reporting of Ammonia (wastewater), Bromide (wastewater), Chloride (wastewater), Cyanide (wastewater and drinking water), Fluoride (wastewater and drinking water), Nitrate (wastewater and drinking water), Potassium (wastewater), and Sulfide (wastewater).


    You may be interested in downloading the YSI pH Handbook - a practical guide to pH measurements in the lab and field. It's full of tips and recommendations for ensuring accurate, repeatable pH measurements.

    pH Handbook on Homepage Download

  • Specifications
    Autostable Yes
    Benchtop Yes
    Buffer Recognition Yes
    Certifications CE, cETLus
    Data Management

    500 data sets in manual mode and 10,000 data sets in automatic mode

    Digital / Digital Sensors Yes
    Display

    Large, easy to read graphic color displays

    Equipment used with Multilab IDS probes and accessories
    GLP Compliance Yes
    Graphic Display Large, easy to read graphic color displays
    Keypad Antibacterial
    Logging Capabilities Yes
    Measurement Method / Channels 3 Measurement Channels
    Measurement Range

    pH - 0.000 to 14.000 (+/-0.004), Conductivity - 1 µS/cm to 2,000 mS/cm +0.5% of value (301710Y), .01µS/cm to 200 µS/cm +0.5% of value (301720Y), TDS - 0 to 100ºC (32 to 212ºF), Dissolved Oxygen - 0 to 50 mgL; 0 to 500% air saturation, Salinity - 0.0 to 70.0 ppt +0.5% of value

    Operating pH Range 0.000 to 14.000 (+/-0.004)
    Operating Temperature 32 to 176º degrees F
    Parameters Measured

    Temperature, Conductivity, Resistivity, Salinity, TDS (Total Dissolved Solids), pH/mV, Oxidation Reduction Potential (ORP), Partial Pressure, Dissolved Oxygen (% and mg/L* (BOD)

    Power Universal power supply
    Sampling Yes
    Smart Sensors / Ports Intelligent Digital Sensors (IDS)
    User Calibratable Yes
    User Replaceable Yes
    Warranty

    3 years

    Waterproof Yes
  • Accessories

    pH Buffer

    pH Buffer

    Conductivity Calibrator Solution

    Conductivity Calibrator Solution

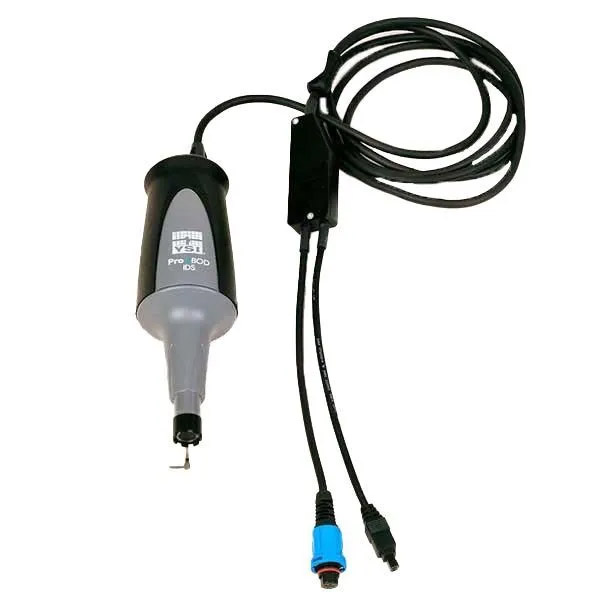

    MultiLab IDS ProOBOD

    Optical Self stirring BOD probe with temperature sensor, IDS

    MultiLab IDS 4100 ProBOD Polarographic Probe

    Self-stirring, polarographic, membrane-covered BOD probe

    MultiLab IDS 4110 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 1.5 meter cable

    MultiLab IDS 4110-3 pH and Temperature Sensor

    Combination pH and temperature, Plastic, Gel filled, digital, double junction probe, 3 meter cable

    MultiLab IDS 4120 pH and Temperature Sensor

    Combination pH and temperature, plastic, 3 mol KCl, digital,double junction, 1.5 meter cable, refillable reference

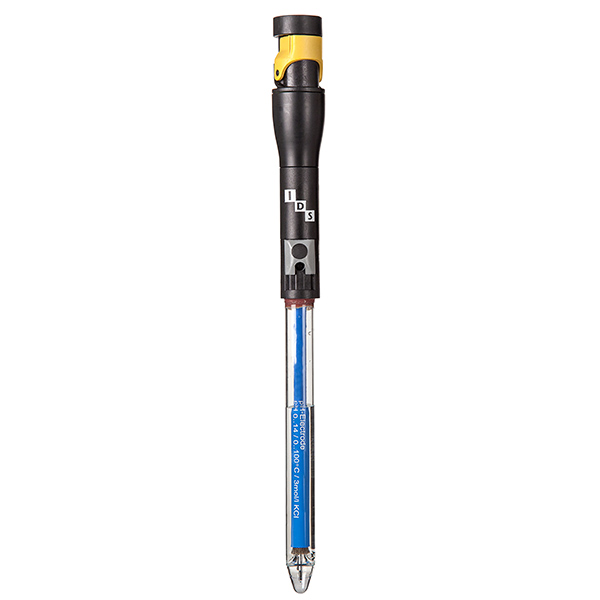

    MultiLab IDS 4130 pH and Temperature Sensor

    Combination pH and temperature, Glass, 3 mol KCL, digital, double junction probe, 1.5 meter cable, refillable reference

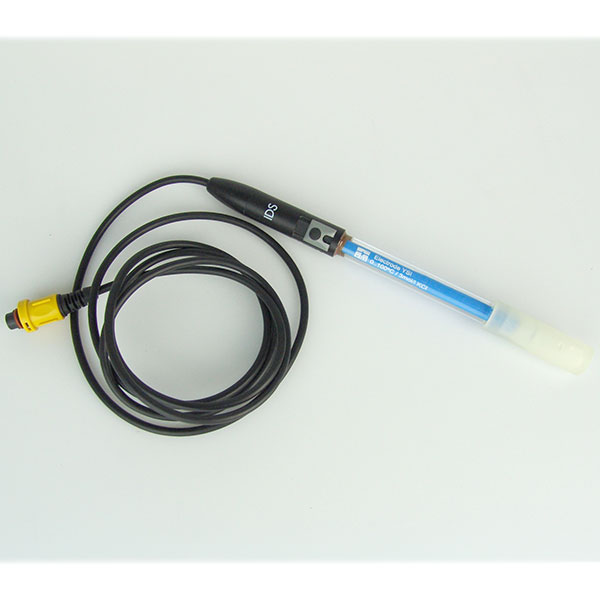

    MultiLab IDS 4211 ORP and Temperature Sensor

    ORP and temperature, glass, 3 mol KCl, digital, double junction probe with refillable reference, 1.5 meter cable

    MultiLab IDS 4310 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 1.5 meter cable

    MultiLab IDS 4310-3 Conductivity and Temperature Sensor

    Conductivity and temperature, Epoxy body, 4-graphite electrodes, digital probe, 3 meter cable

    MultiLab IDS 4320 Conductivity and Temperature Sensor

    Conductivity and temperature, Stainless Steel body, 2-electrodes, digital probe, 1.5 meter cable

    MultiLab FDO 4410 IDS Sensor

    Fluorescent dissolved oxygen (FDO) probe with temperature sensor

    MultiLab IDS 4110W pH and Temperature Wireless Sensor

    Wireless pH and temperature, plastic, gel, digital, double junction probe

    MultiLab IDS 4120W pH and Temperature Wireless Sensor

    Wireless pH and temperature, plastic, 3 mol KCl, digital, double junction probe with refillable reference

    MultiLab IDS 4130W pH and Temperature Wireless Sensor

    Wireless pH and temperature, glass, 3 mol KCL, digital, double junction probe with refillable reference

    MultiLab IDS 4210W ORP Wireless Sensor

    Wireless ORP, glass, 3 mol KCl, digital, double junction probe with refillable reference

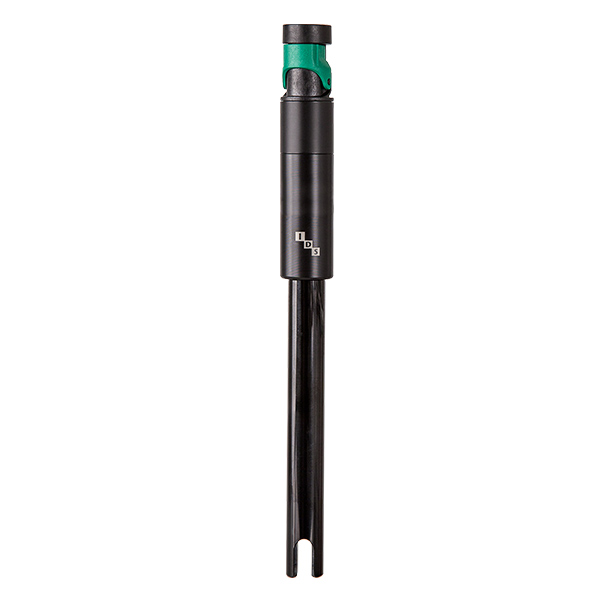

    MultiLab IDS 4310W Conductivity and Temperature Wireless Sensor

    Wireless conductivity and temperature, epoxy body, 4-graphite electrodes, digital probe, K= 0.475 cm-1

    MultiLab IDS 4320W Conductivity and Temperature Wireless Sensor

    Wireless conductivity and temperature, stainless steel body, 2-electrodes, digital probe, K = 0.1 cm-1

    MultiLab FDO 4410W IDS Wireless Sensor

    Wireless fluorescent dissolved oxygen (FDO) probe with temperature

    Wireless Meter Module for MultiLab

    WA-M wireless meter module

    Battery Charger for MultiLab Wireless Sensor Module

    Charger for MultiLab WA-S wireless sensor module

    MultiLab Wireless Module Kit

    Kit with WA-S wireless sensor module, WA-M wireless meter module, charger for WA-S modules, and USB power supply

    MultiLab Cable Adapters for Wireless Sensors

    Cables for wireless MultiLab sensors

    MultiLab 4011 BOD Adapter

    Cable for connecting YSI 5010 BOD probe to MultiLab

    MultiLab OBOD/BOD Probe Stirrer Adapter

    OBOD/BOD power stirrer adapter

    QSC Kit

    Calibration kit for IDS pH electrodes; 3 ampules: 4.01, 6.86, 9.18

    MultiLab 4010-2/3 BNC Adapter

    BNC pH/ORP/ISE adapter for MultiLab 4010-2/3 instruments

    MultiLab 4010 Power Supply

    Universal power supply for MultiLab instruments

    MultiLab 4010 Stand

    Stand + holder for MultiLab 4010

    USB A – Mini B Cable

    USB cable for connecting instrument with USB-Mini B to a Computer

    UK Style BOD bottle funnel adaptor

    Allows OBOD to be used in UK BOD bottles

    TruLab/MultiLab Printer Paper

    Replacement printer paper

    3 M KCl Electrolyte Solution

    250 mL of solution for refillable lab electrodes

    Replacement OBOD Sensor Cap Kit

    Replacement OBOD Sensor Cap Kit

    Replacement Cap for MultiLab FDO Sensor

    FDO replacement cap for MultiLab 4410 and 4410W sensors

    TruLine Ammonium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Ammonia Electrode Kit

    Includes ISE, 2 membrane modules, fill solution, ISA, and high standard.

    TruLine Bromide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Cadmium Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Calcium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Chloride Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Copper Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Cyanide Electrode Kit

    Includes ISE with refillable reference, fill solution, and ISA.

    TruLine Fluoride Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Iodide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Lead Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

    TruLine Nitrate Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high (1000 mg/L) standard.

    TruLine Potassium Electrode Kit

    Includes ISE with replaceable sensor module and refillable reference, fill solution, ISA, and high standard.

    TruLine Silver/Sulfide Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high silver standard.

    TruLine Sodium Electrode Kit

    Includes ISE with refillable reference, fill solution, ISA, and high standard.

  • Video

    YSI MultiLab Line of Instruments for pH, ORP, conductivity, BOD and Ion Activity Measurement

    The YSI MultiLab line includes the 4010-1 (single channel), 4010-2 (dual channel) and 4010-3 (three channel) instruments ideal for the laboratory.

    MultiLab Benchtop Instrument | Overview

    Take a look at the features of our MultiLab line of instruments, so you can see firsthand how well this versatile platform fits into your lab.

    YSI MultiLab Laboratory Meter | BNC connection

    Ion selective electrodes (ISEs) with BNC connections can be connected to the YSI MultiLab 4010-2 and MultiLab 4010-3 with an adapter that converts one digital input to an analog BNC input. See how easy is it to connect the adapter!

    MultiLab Benchtop Instrument Probe Selection Overview

You may also need

MultiLab IDS ProOBOD

Optical Self stirring BOD probe with temperature sensor, IDS

$1,163.76 - $1,352.00

MultiLab IDS 4130W pH and Temperature Wireless Sensor

Wireless pH and temperature, glass, 3 mol KCL, digital, double junction probe with refillable reference

$416.00

MultiLab IDS 4211 ORP and Temperature Sensor

ORP and temperature, glass, 3 mol KCl, digital, double junction probe with refillable reference, 1.5 meter cable

$399.36

MultiLab IDS 4310W Conductivity and Temperature Wireless Sensor

Wireless conductivity and temperature, epoxy body, 4-graphite electrodes, digital probe, K= 0.475 cm-1

$460.72
